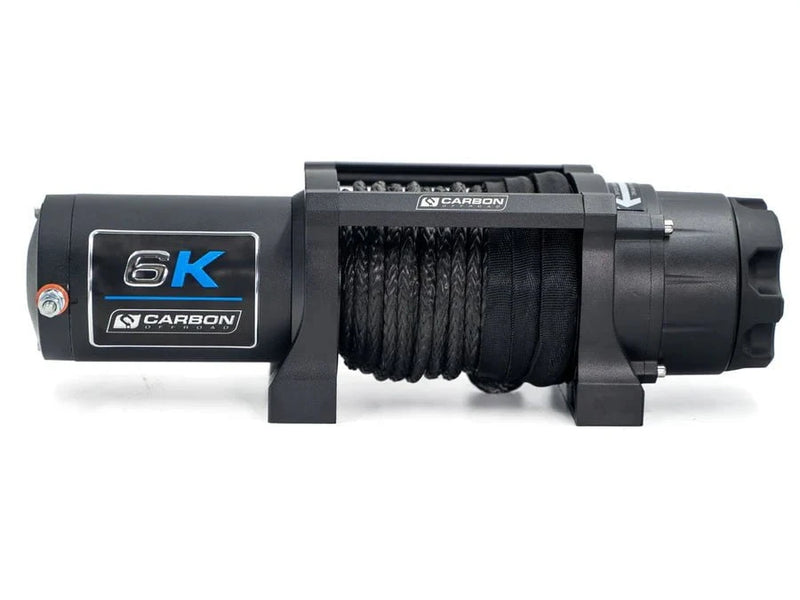

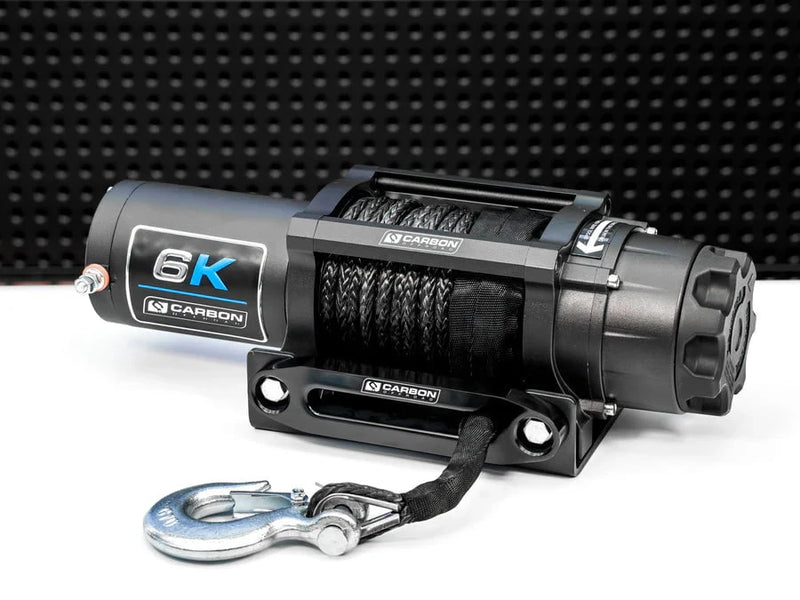

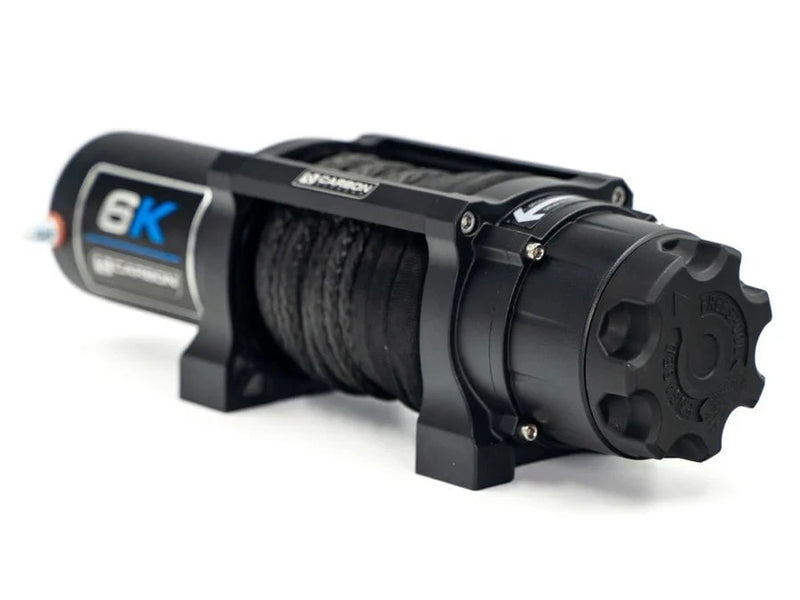

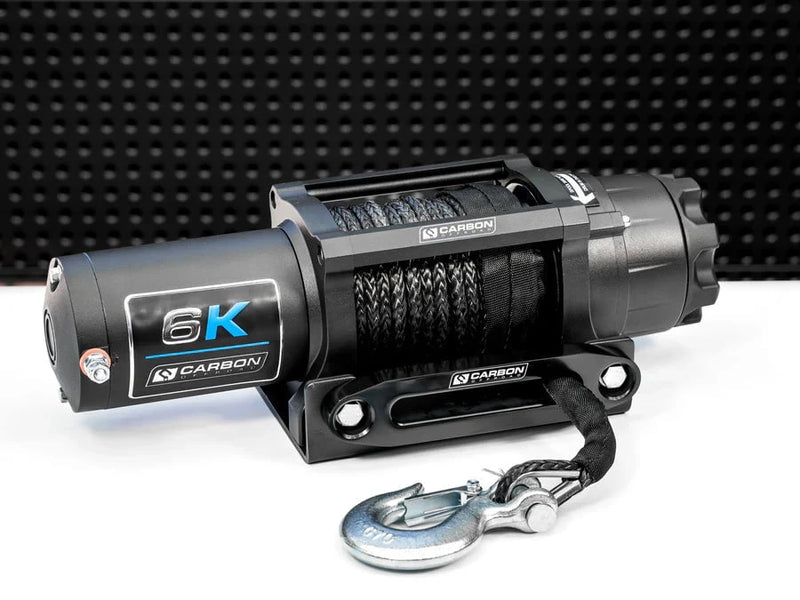

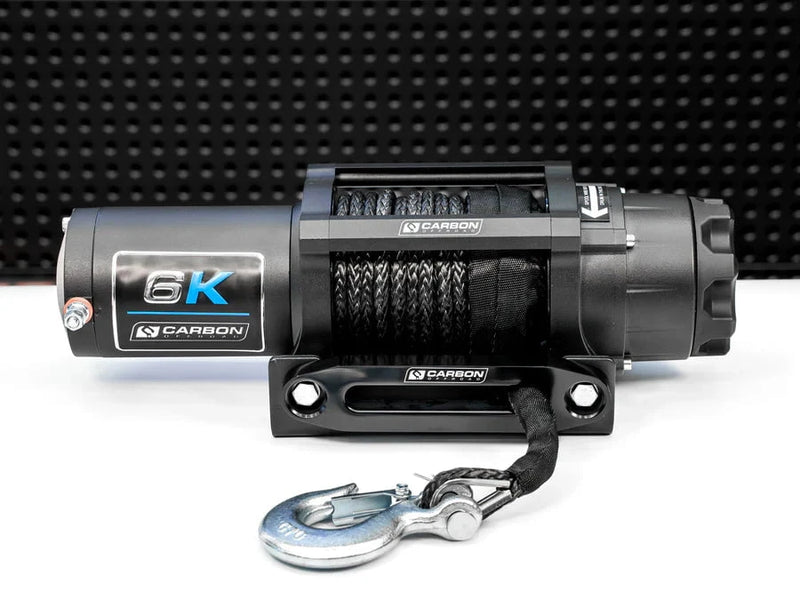

Carbon 6000lb Offroad Winch – For ATV, UTV & Small 4x4 Vehicles 12V
The Carbon Offroad 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.
A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
- Sealed motor and geartrain allows for flawless operations in extreme conditions
- Permanent magnet motor provides heavy duty torque for increased pulling power
- Cam action disengages gears for near silent free-spooling
- Mechanical and dynamic brake offers increased control and prevents rollback
The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.
- Part number: CW-XD6
- Rated line pull: 6000 lbs, (2725kg) single-line
- Motor: 12V DC 2.5 HP permanent magnet (Available in 24V)
- Remote Control: Handlebar Mini-Rocker
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 147:1
- Clutch: Roller disc full load automatic
- Brake: Automatic brake in the motor bracket
- Aluminium hawse
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
- Synthetic Rope: 16m x 6.5mm diameter
- Drum Diameter/Length: 51mm x 122mm

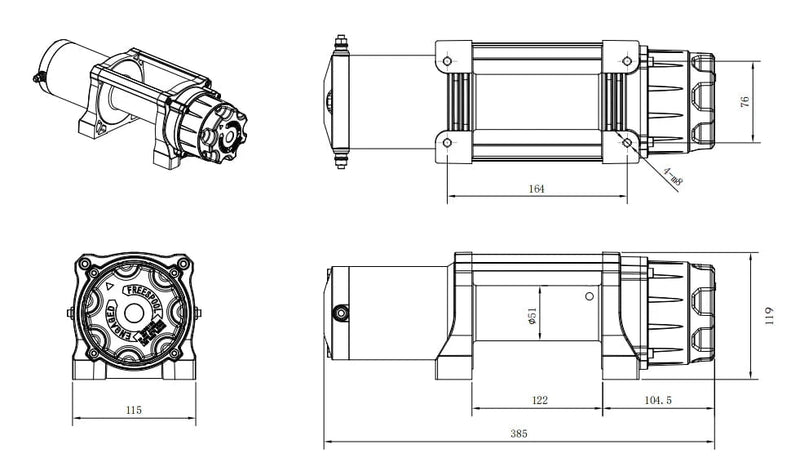

- Mounting Bolt Pattern: 164mm x 76mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 385 x 115 x 119mm
- Packing Dimensions (L x W x H): 530 x 170 x 230mm
- Winch weight with synthetic rope attached: 8.3kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
| Pull,Speed,Amperes,Volts(First layer) Line Pull | |||
|---|---|---|---|
| 12V DC PERFORMANCE SPECS | |||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current | Rated line pull lbs(kgs) |
| 0 | 13.8(4.2) | 15 | 1/6000(2725) |
| 2000(1814) | 9.5(2.9) | 125 | 2/5350(2430) |
| 4000(3629) | 7.2(2.2) | 190 | 3/4780(2170) |
| 6000(5443) | 4.6(1.4) | 240 | 4/4270(1940) |
