Warn 12V Self Recovery Winch with 30m Steel Wire Rope & Wireless Remote (9500XDC-74700) Fast, Powerful, and Reliable Performance for the Toughest Off-Road Recovery

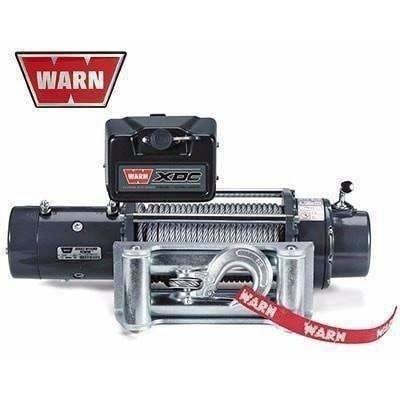

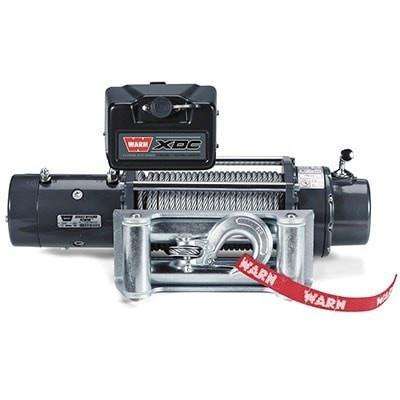

Warn 12V Self Recovery Winch with 30m Steel Wire Rope & Wireless Remote (9500XDC-74700)
Fast, Powerful, and Reliable Performance for the Toughest Off-Road Recovery

The Warn 9500XDC 12V Self Recovery Winch is engineered for serious off-road enthusiasts who demand the highest performance under extreme conditions. Whether you're navigating harsh terrains or tackling challenging recovery scenarios, this winch offers fast, powerful, and reliable operation with a 9,500 lb. (4,310 kg.) capacity rating. Designed to fit a variety of bumpers, the XDC delivers superior performance with a long-duty cycle and an exclusive brake design for precise control.

Key Features:

• High Pulling Capacity: Delivers a robust 9,500 lbs. (4310 kg) pulling capacity, ensuring you can handle even the toughest recovery tasks with ease.

• Fast Line Speeds: The winch operates with fast line speeds, helping you complete your recovery operation quickly and efficiently.

• Wireless & Corded Control: Equipped with both wired (12′/3.7m) and wireless remote controls, providing flexibility and convenience during operation.

• Series Wound Motor: 12V Gen II, Series Wound motor provides strength, reliability, and extended performance, making it ideal for off-road adventures.

• Extreme-Duty Sealing: The XDC features extreme-duty winch sealing to provide superior water resistance, ensuring reliable operation in all conditions.

• Durable Construction: The winch features a high-gloss, chip-resistant powder coat finish, offering superior corrosion resistance for long-lasting durability.

• Efficient 3-Stage Planetary Geartrain: Proven to be the most reliable, efficient, and durable design for smooth winching operations.

Specifications:

• Manufacturer Part Number: 9500XDC-74700

• Motor: 12V Gen II Series Wound

• Electrical Controls: Contactor

• Remote Controls: Remote switch (12′/3.7m lead), hand-held wireless

• Geartrain: 3-Stage Planetary

• Clutch (Freespooling): Sliding Ring Gear

• Brake: Automatic Direct Drive Cone

• Rope: 100′ (30m) steel, 5/16″ (8mm) diameter

• Fairlead: Roller fairlead

• Battery Requirements: 650 CCA minimum for winching

• Battery Leads: 2 gauge, 72″ (1.83m)

• Finish: Chromate with high-gloss dark-gray powder coat

• Dimensions: 21.8″ L x 6.3″ D x 7.6″ H (555mm x 160mm x 193mm)

• Weight: 87 lbs. (39.5 kgs)

• Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)

Performance Specifications (1st Layer of Drum):

• 0 lbs (0 kg): Line Speed: 29 ft/min (8.8 m/min), Motor Current: 60 amps, Pull by Layer: 1/9500 lbs (4313 kg)

• 2000 lbs (910 kg): Line Speed: 13.5 ft/min (4.1 m/min), Motor Current: 144 amps, Pull by Layer: 2/8650 lbs (4927 kg)

• 4000 lbs (1810 kg): Line Speed: 10 ft/min (3.1 m/min), Motor Current: 197 amps, Pull by Layer: 3/7920 lbs (3595 kg)

• 6000 lbs (2720 kg): Line Speed: 8 ft/min (2.4 m/min), Motor Current: 250 amps, Pull by Layer: 4/7400 lbs (3359 kg)

• 8000 lbs (3630 kg): Line Speed: 6.5 ft/min (1.9 m/min), Motor Current: 315 amps, Pull by Layer: 5/6940 lbs (3150 kg)

• 9500 lbs (4310 kg): Line Speed: 5.7 ft/min (1.7 m/min), Motor Current: 358 amps

Why Choose the Warn 9500XDC Winch?

• Maximum Performance & Reliability: Warn’s 12V Gen II Series Wound motor and 3-stage planetary geartrain ensure you get the job done quickly and efficiently, no matter the conditions.

• Enhanced Control: With remote-mount control box, you have various mounting options and can control the winch easily from a distance using corded or wireless remote.

• Extreme Water Resistance: Thanks to its extreme-duty sealing, this winch is built to withstand water exposure and operate flawlessly in wet environments.

• Long-Duty Cycles: The extended-duty control pack delivers long-duty cycles to handle demanding pulls, while the thermometric protection device prevents motor overheating, ensuring longevity.

Perfect for serious off-roaders, Warn’s 9500XDC 12V Self Recovery Winch provides the ultimate in durability, control, and performance for extreme winching needs.
