Warn 12V Self Recovery Winch with 38m Wire Rope (CEM12000-87801) Powerful, Durable, and Ready for Heavy-Duty Winching

Warn 12V Self Recovery Winch with 38m Wire Rope (CEM12000-87801)
Powerful, Durable, and Ready for Heavy-Duty Winching

The Warn 12V Self Recovery Winch (CEM12000-87801) is a heavy-duty winch designed to meet the demands of serious off-roaders, recovery professionals, and industrial users. With a 12,000 lbs. (5440 kg) pulling capacity, this winch is engineered to perform in the most extreme environments. Whether you're recovering vehicles, machinery, or tackling tough jobs in remote locations, this winch is built to deliver reliable performance, high pulling power, and long-lasting durability.

Key Features:

• Impressive Pulling Capacity: With a 12,000 lb. (5440 kg) single-line pulling capacity, this winch is designed to handle the toughest recovery and lifting tasks with ease.

• High-Speed Motor: Powered by a 12V 4.6 hp series-wound motor, this winch delivers high-speed performance with quick line speed, even under heavy loads.

• Durable Wire Rope: Includes 125 ft. (38m) of 3/8" (9.5mm) diameter wire rope, offering strength and reliability for all winching needs.

• Efficient 3-Stage Planetary Geartrain: The durable 3-stage planetary geartrain ensures smooth, reliable operation, making it perfect for challenging conditions.

• Automatic Brake: The automatic mechanical cone brake provides superior control when winching, ensuring precision and safety when handling heavy loads.

• Remote Control: The 12' (3.7m) lead remote control allows for convenient operation from a safe distance, making your winching tasks more efficient.

• Roller Fairlead: Comes with a roller fairlead, reducing wear and tear on the wire rope and ensuring smooth spooling.

• Heavy-Duty Construction: The winch features a chip-resistant, argent gray powder-coated finish, providing enhanced corrosion resistance and durability in harsh environments.

Specifications:

• Part Number: CEM12000-87801 (12V)

• Rated Line Pull: 12,000 lbs. (5440 kg), single-line

• Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp

• Electrical Controls: Contactor

• Geartrain: 3-Stage Planetary

• Gear Ratio: 261:1

• Clutch (Freespooling): Rotating Ring Gear

• Brake: Automatic Mechanical Cone

• Drum Diameter/Length: 3.5" / 8.2" (9cm / 21cm)

• Weight: 136 lbs. (62 kg)

• Wire Rope: 125 ft. (38m), 3/8" (9.5mm) diameter

• Fairlead: Roller

• Recommended Battery: 650 CCA minimum

• Battery Leads: 2 gauge, 72" (1.83m)

• Finish: Argent Gray Powder Coat

12V DC Performance (1st Layer of Drum):

• 0 lbs.: 30 ft/min (9.14 m/min), 67 amps, Pull by layer: 1/12000 lbs. (5443 kg)

• 2000 lbs.: 14 ft/min (4.27 m/min), 140 amps, Pull by layer: 2/11120 lbs. (5044 kg)

• 4000 lbs.: 8.62 ft/min (2.63 m/min), 210 amps, Pull by layer: 3/10340 lbs. (4690 kg)

• 6000 lbs.: 6.92 ft/min (2.11 m/min), 250 amps, Pull by layer: 4/9770 lbs. (4432 kg)

• 8000 lbs.: 5.80 ft/min (1.77 m/min), 320 amps, Pull by layer: 5/9250 lbs. (4196 kg)

• 10000 lbs.: 4.39 ft/min (1.34 m/min), 370 amps

• 12000 lbs.: 3.86 ft/min (1.18 m/min), 440 amps

24V DC Performance (1st Layer of Drum):

• 0 lbs.: 31.94 ft/min (9.57 m/min), 24 amps, Pull by layer: 1/12000 lbs. (5443 kg)

• 2000 lbs.: 11.7 ft/min (3.57 m/min), 105 amps, Pull by layer: 2/11120 lbs. (5044 kg)

• 4000 lbs.: 9.5 ft/min (2.90 m/min), 129 amps, Pull by layer: 3/10340 lbs. (4690 kg)

• 6000 lbs.: 8.5 ft/min (2.59 m/min), 152 amps, Pull by layer: 4/9770 lbs. (4432 kg)

• 8000 lbs.: 7.5 ft/min (2.29 m/min), 175 amps, Pull by layer: 5/9250 lbs. (4196 kg)

• 10000 lbs.: 6.5 ft/min (1.98 m/min), 198 amps

• 12000 lbs.: 6.0 ft/min (1.83 m/min), 221 amps

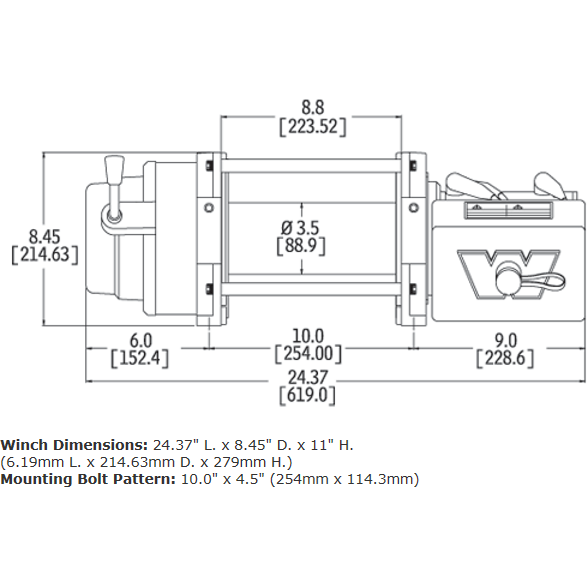

Winch Dimensions:

• Winch Dimensions: 24.37" L x 8.45" D x 11" H (619mm L x 214.63mm D x 279mm H)

• Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Why Choose the Warn 12V Self Recovery Winch (CEM12000-87801)?

• Powerful Performance: With 12,000 lbs. of pulling capacity, this winch is designed for demanding tasks, making it the ideal solution for off-road recovery, industrial work, and towing.

• Fast and Reliable: The high-speed motor and 3-stage planetary geartrain ensure rapid line speeds and smooth operation, even when pulling heavy loads.

• Durable and Long-Lasting: Built with high-quality components, including a powder-coated finish and strong wire rope, this winch is ready for tough conditions and extended use.

• Dual Control Options: The winch offers cordless and corded remote controls, allowing for flexible operation from a distance, ensuring ease of use in various environments.
