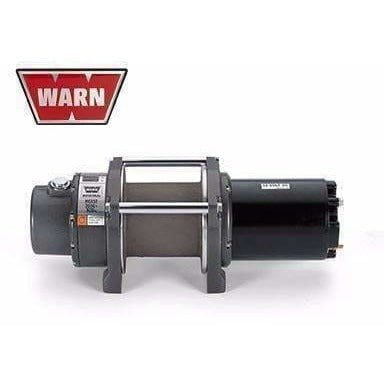

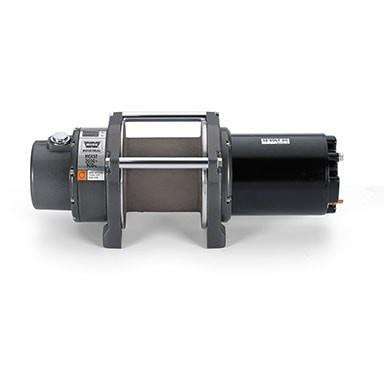

Warn Industrial Dc Hoist 2000lbs Dc 2000

DC2000

The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on a compact midsize framed with integrated tie bars that’s easy to install. Controls and accessories available separately.

DC2000 SPECIFICATIONS

Part Number: DC2000-63899 (12V)
Part Number: DC2000-85190 (24V)
Rated Capacity: 2000 lbf (907 kgf)
Drum Barrel Diameter: 4.25 in (108 mm)
Drum Flange Diameter: 6.25 in (159 mm)
Distance Between Flanges: 4.5 in (114 mm)
Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm)
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)
Approximate Shipping Weight: 40 lbs. (18.1 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 32-34 ft*lbf (43 – 46 N*m)
Maximum Layers of Wire Rope: 2
Gear Reduction: 261
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5

PERFORMANCE DATA BY LAYER – 12V

Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 2000 907 8.9 14.7 4.5 20 6.1
2 1800 816 8.0 16.3 5.0 43 13.1

FIRST LAYER PERFORMANCE (12V)

Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 13 14.7 4.5 Continuous
400 181 30 14.5 4.4 Continuous
800 363 48 13.9 4.2 6.7
1200 544 67 13.5 4.1 4.1
1600 726 87 13.0 4.0 2.9
2000 907 107 12.4 3.8 2.2

PERFORMANCE DATA BY LAYER – 24V

Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 2000 907 8.9 14.5 4.4 20 6.1
2 1800 816 8.0 16.1 4.9 43 13.1

FIRST LAYER PERFORMANCE (24V)

Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 6 14.5 4.4 Continuous
400 181 15 14.4 4.4 Continuous
800 363 25 14.0 4.3 Continuous
1200 544 34 13.6 4.1 6.8
1600 726 44 13.2 4.0 4.6
2000 907 54 12.8 3.9 3.4
