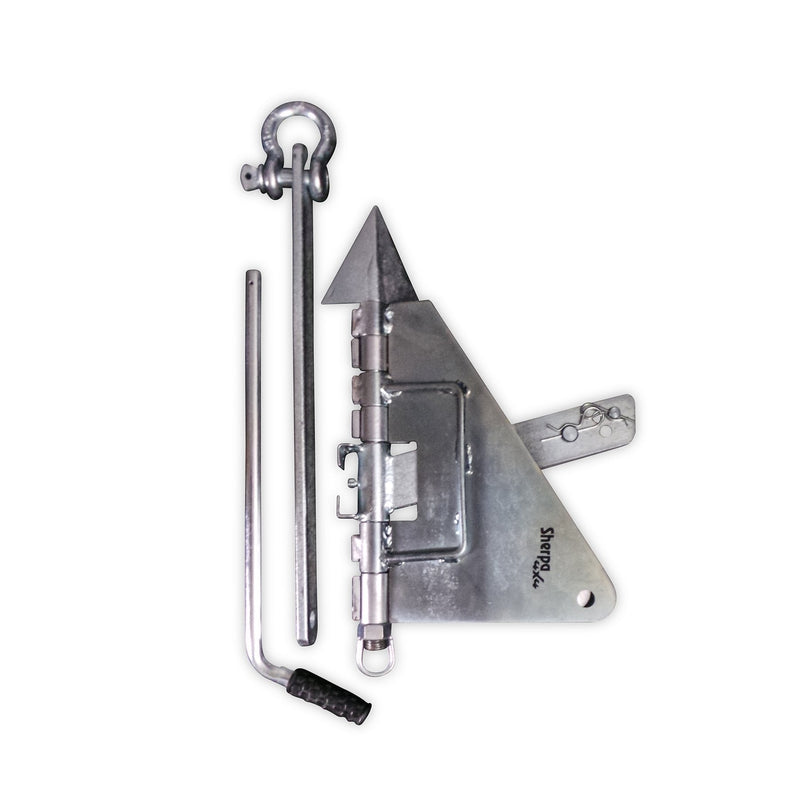

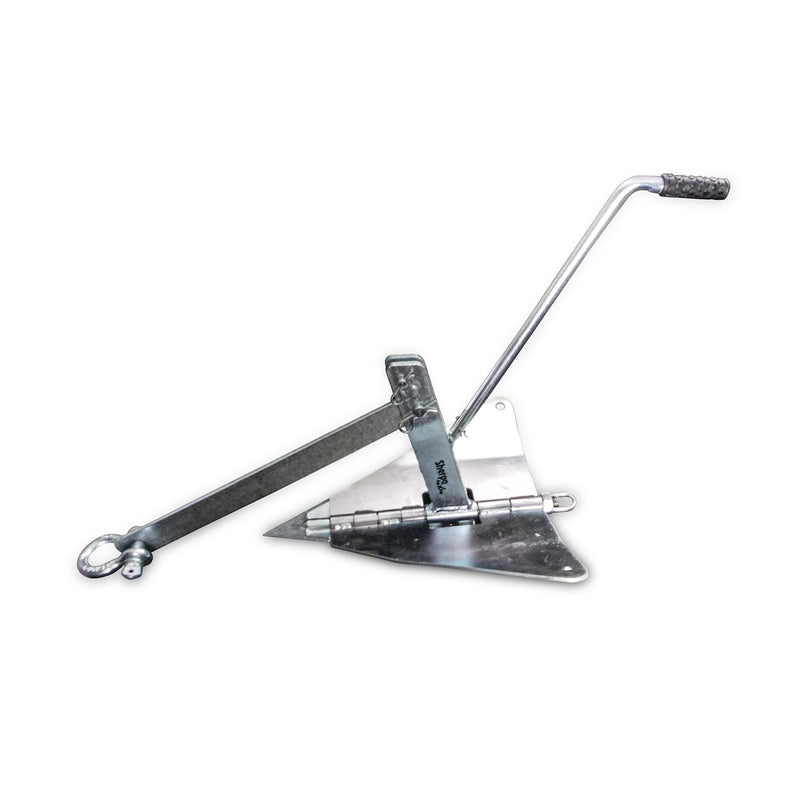

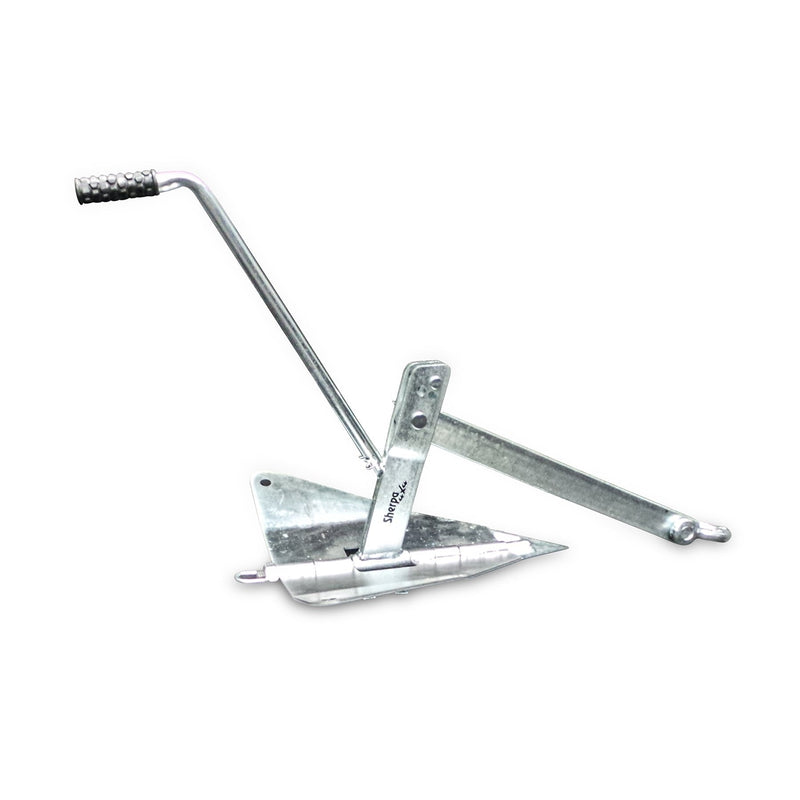

Sherpa 4x4 Winch Anchor - 12,000 lbs Ground/Sand Recovery Anchor

Why Every 4WD Needs a Winch Anchor

• 12,000 lbs (5,443 kg) Load Capacity: Handles most 4WD recovery situations
• Works Where Trees Don't: Essential for desert, beach, and open terrain recovery
• Self-Digging Angled Blade: Buries itself deeper under load for maximum holding power
• Large 50cm x 60cm Blade: Maximum surface area for superior grip in soft ground
• Heavy-Duty Steel Construction: Improved casting with reinforced pins
• Includes U-Shackle: Ready to connect to your winch line
• Premium Carry Bag: Sherpa 4x4 bag rated to 100+ kg keeps everything organized
• 3-Year Warranty: Built to last in harsh Australian conditions

Perfect For These Recovery Scenarios

✓ Desert & Sand Recoveries

• Simpson Desert crossings: No trees for hundreds of kilometers
• Beach driving: Soft sand with no anchor points
• Sand dunes: Self-recovery when stuck on dune faces
• Outback tracks: Remote areas with sparse vegetation
• Coastal 4WD tracks: Sandy beaches and dunes

✓ Mud & Boggy Terrain

• Cape York wet season: Deep mud with no solid anchor points
• River crossings: Soft banks and muddy approaches
• Swamps and bogs: When you're truly stuck
• Clay pans: Slippery surfaces after rain

✓ Open Terrain & Grasslands

• Station tracks: Open paddocks with no trees
• Floodplains: Soft ground with sparse vegetation
• Gravel roads: When you slide off into soft shoulders
• Alpine areas: Above tree line recoveries

✓ Emergency Situations

• Solo travel: Self-recovery when traveling alone
• Remote locations: When help is hours or days away
• Multiple vehicle recoveries: Anchor for pulling others out
• Winch extension: When trees are too far away

Complete Technical Specifications

How the Winch Anchor Works

The Science Behind Ground Anchors:

The Sherpa Winch Anchor uses a large angled blade that buries itself in soft ground. As you apply winch tension, the anchor digs deeper, creating a mechanical advantage. The 50cm x 60cm blade provides massive surface area - the larger the blade, the more holding power in soft terrain.

Self-Digging Action:

• Angled blade design forces anchor to dig deeper under load
• More tension = deeper burial = stronger hold
• Works progressively - gets stronger as you pull
• Maximum efficiency in sand, mud, and soft soil

Step-by-Step Recovery Guide

How to Use Your Winch Anchor:

1. Assess the Ground: Choose soft ground (sand, mud, or soil) ahead of your stuck vehicle
2. Dig the Trench: - Dig a trench at 45-degree angle away from vehicle - Trench should be 60-80cm deep - Angle ensures anchor digs deeper under load
3. Position the Anchor: - Place anchor blade in trench at 45-degree angle - Ensure blade is facing away from vehicle - Blade should be angled down into the ground
4. Bury the Anchor: - Backfill trench with removed soil - Compact soil firmly around blade - Only shackle point should be visible above ground
5. Connect Winch Line: - Attach winch line to U-shackle - Use tree protector or strap around shackle point - Ensure connection is secure
6. Apply Tension Slowly: - Start winching slowly to allow anchor to set - Anchor will dig deeper as tension increases - Use winch damper on line for safety
7. Monitor Progress: - Watch for anchor movement - If anchor pulls out, dig deeper and try again - May need to wet sand for better holding
8. Recovery Complete: - Once vehicle is free, carefully dig out anchor - Clean and inspect for damage - Store in carry bag

Ground Type Performance Guide

Best Performance:

Wet/Damp Sand: ⭐⭐⭐⭐⭐

• Ideal conditions for maximum holding power
• Wet sand compacts well around blade
• Anchor sets quickly and holds firmly
• Perfect for beach and desert after rain

Soft Mud/Clay: ⭐⭐⭐⭐⭐

• Excellent holding in sticky mud
• Clay provides strong grip
• Self-digging action works perfectly
• Ideal for Cape York and wet season

Firm Soil/Dirt: ⭐⭐⭐⭐

• Good performance in most soil types
• May require deeper burial
• Works well in paddocks and tracks
• Compact soil firmly for best results

Moderate Performance:

Dry Sand: ⭐⭐⭐

• Works but requires deeper burial
• Wet sand if possible for better hold
• May need to dig 80-100cm deep
• Use snatch block to double line pull if needed

Gravel: ⭐⭐⭐

• Moderate holding in loose gravel
• Compact gravel well around blade
• May shift under heavy loads
• Better in gravel/soil mix

Not Suitable:

Rock/Hard Ground: ❌

• Cannot dig into solid rock
• Use rock anchor or natural features instead
• May damage anchor if forced

Pro Tips for Maximum Holding Power

💡 Expert Recovery Techniques:

• Wet the Sand: Pour water on dry sand before burying anchor - dramatically increases holding power
• Dig Deeper: The deeper you bury it, the better it holds - minimum 60cm, ideal 80cm+
• Compact Firmly: Stomp and compact soil around blade - loose soil = weak hold
• Use Snatch Block: Double your line pull and reduce load on anchor
• Angle Matters: 45-degree angle is critical - too steep or shallow reduces effectiveness
• Multiple Anchors: For heavy vehicles, use two anchors in parallel for 24,000 lbs capacity
• Test First: Apply light tension first to ensure anchor is set before full pull
• Winch Damper: Always use a winch damper/blanket on the line for safety

What's Included in the Kit

• 1x Sherpa 4x4 Winch Anchor (50cm x 60cm blade)
• 1x U-Shackle for winch line connection

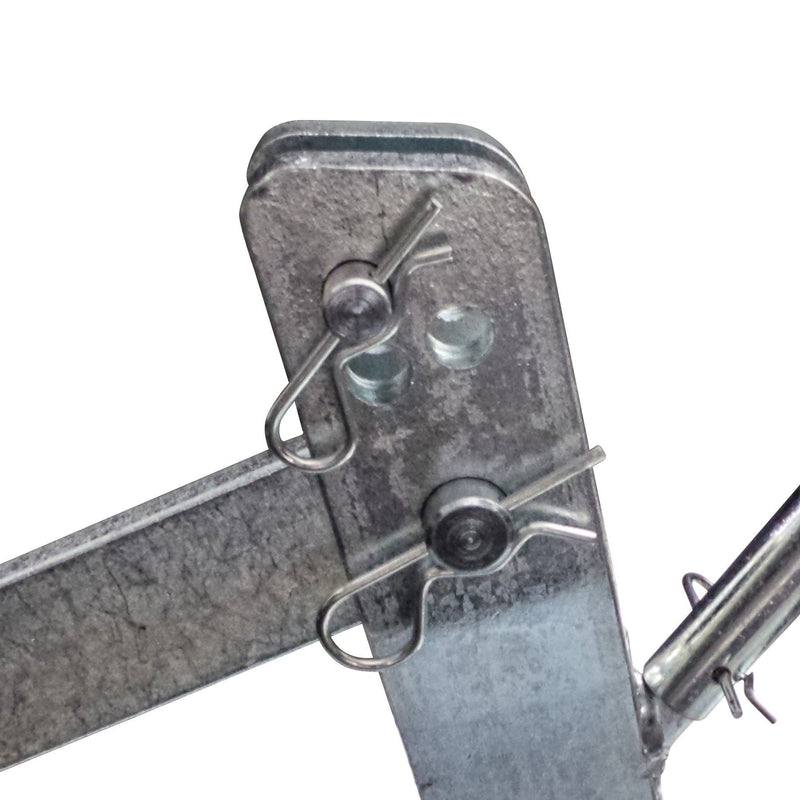

• Heavy-Duty Reinforced Pins

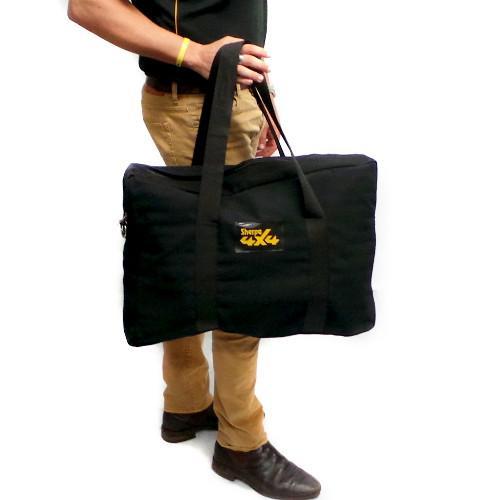

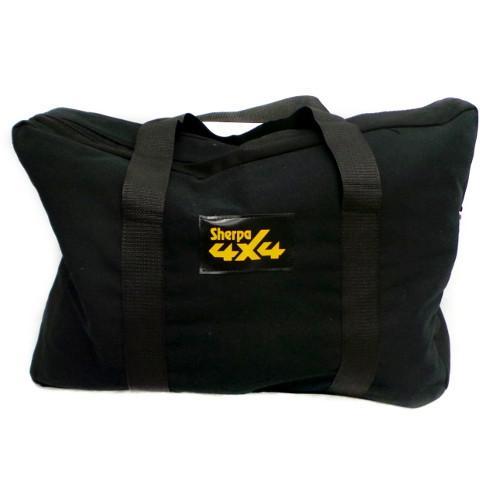

• 1x Sherpa 4x4 Heavy-Duty Carry Bag (100+ kg rated)
• Assembly Instructions
• Safety Guidelines
• 3-Year Warranty Card

Recommended Accessories (Available Separately):

• Winch damper/blanket (essential safety item)
• Tree protector strap (for shackle point)
• Snatch block (to double line pull)
• Recovery gloves
• Shovel (for digging trench)

Assembly Instructions

Simple 3-Step Assembly:

1. Attach Blade: Connect the 50cm x 60cm blade to the main shaft using heavy-duty pins
2. Secure Pins: Ensure all pins are fully inserted and secured
3. Attach Shackle: Connect U-shackle to the anchor point

Assembly takes less than 5 minutes. Detailed instructions included in carry bag.

Safety Guidelines - CRITICAL INFORMATION

⚠️ IMPORTANT SAFETY WARNINGS:

• Never exceed 12,000 lbs capacity - use snatch block to reduce load if needed
• Always use winch damper/blanket on line during recovery
• Keep all people at least 1.5x cable length away during winching
• Inspect anchor before each use for cracks, bends, or damage
• Bury anchor minimum 60cm deep - shallow burial = weak hold
• Never stand in line with winch cable during operation
• Test anchor with light tension first before full pull
• Wear heavy-duty gloves when handling anchor and cable
• Do not use on hard rock or concrete - will damage anchor
• Check local regulations regarding ground disturbance

Maintenance & Care

After Each Use:

• Clean anchor thoroughly to remove sand, mud, and debris
• Inspect blade and pins for cracks, bends, or damage
• Check U-shackle for wear or deformation
• Dry completely before storing to prevent rust
• Apply light oil to pins and moving parts
• Store in carry bag to protect from elements

Regular Maintenance:

• Inspect welds and joints every 6 months
• Replace pins if worn or damaged
• Touch up paint to prevent rust
• Check shackle thread condition
• Store in dry location when not in use

Real-World Recovery Scenarios

Scenario 1: Simpson Desert Sand Dune

"Stuck on a dune face with no trees for 50km. Dug the anchor 80cm deep in damp sand at the base of the dune. Winched out smoothly - anchor held perfectly. Essential gear for desert crossings!" - Mark, Alice Springs

Scenario 2: Cape York Mud Bog

"Bogged to the axles in wet season mud. No solid trees nearby. Buried the anchor in clay soil - it held my fully loaded 79 Series no problem. Saved the day!" - Sarah, Cairns

Scenario 3: Beach Recovery

"Got caught by the tide on Fraser Island. Wet sand gave the anchor amazing hold. Used snatch block to double the pull. Out in 10 minutes. Worth every cent." - Dave, Brisbane

Winch Anchor vs Other Recovery Methods

Why Choose a Ground Anchor?

The Sherpa Advantage: When there's nothing else to winch to, the ground anchor is your only option. It's the difference between self-recovery and waiting hours (or days) for help.

Australian Outback Tested

The Sherpa Winch Anchor has proven itself in Australia's toughest conditions:

• ✓ Simpson Desert sand dune recoveries
• ✓ Cape York wet season mud
• ✓ Fraser Island beach recoveries
• ✓ Canning Stock Route crossings
• ✓ Outback station tracks
• ✓ Alpine areas above tree line

Weight & Storage Considerations

At 16kg, the winch anchor is heavy - but here's why it's worth it:

• Weight = strength and durability
• Large blade needs substantial construction
• Heavy-duty steel won't bend or break under load
• Improved casting provides long-term reliability
• Premium carry bag makes transport manageable

Storage Tips:

• Store in ute tray or roof rack
• Keep in carry bag to protect other gear
• Secure properly - it's a heavy item
• Consider weight distribution in vehicle

3-Year Comprehensive Warranty

Sherpa 4x4 backs this winch anchor with a 3-year warranty against manufacturing defects. This anchor is built to handle the harshest Australian conditions and will be your recovery companion for years to come.

Planning a remote 4WD trip? Don't leave without a winch anchor! When you're stuck in the middle of nowhere with no trees, this anchor could be the difference between self-recovery and a very expensive rescue. Contact our team for expert advice on recovery gear and techniques!

⚠️ REMEMBER: A winch is only as good as what you anchor it to. In remote Australia, that anchor point is often the ground beneath you. Be prepared!
