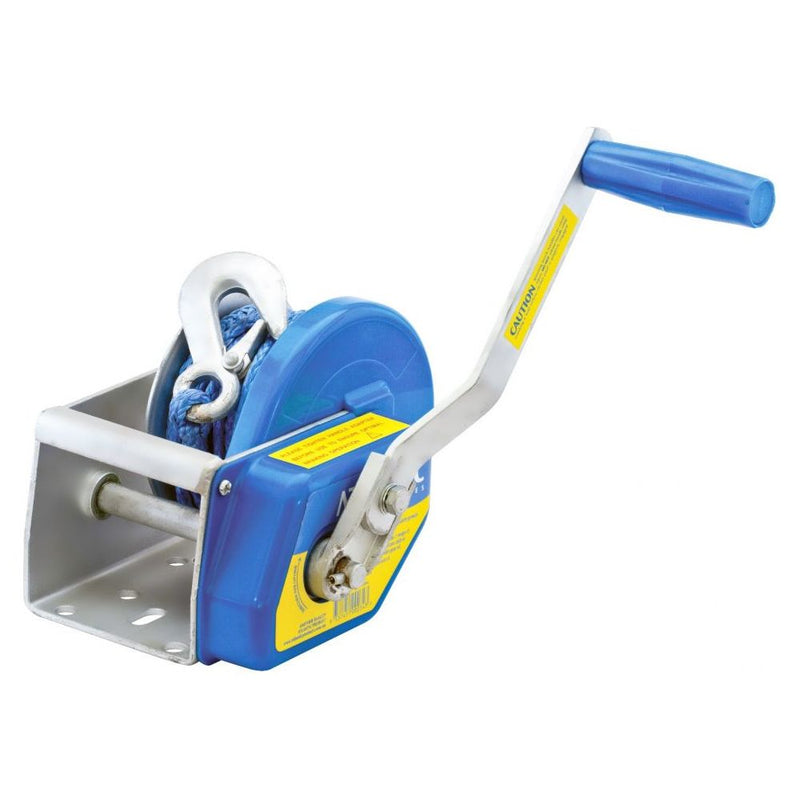

Atlantic Load Brake Hand Winch 725kg
- ✔ Fast dispatch — same/next business day (tracked & insured)
- ✔ Aussie owned & operated — gear for real conditions
- ✔ Expert support — before & after your purchase
- ✔ Authorised WARN dealer — genuine stock, full warranty
- ✔ Price match guarantee — we’ll beat any competitor
Our Compact Brake Winch range are available in 5:1 (300kg), 10:1 (500kg) and 15:1 (725kg). The self actuating automatic braking mechanism ensures the suspension and ‘jerk-free’ movement when lowering a load under pressure.
PRODUCT CODE | BW230C | BW230C-FC | BW260C | BW260C-FC | BW290C |
GEAR RATIO | 5:1 | 5:1 | 10:1 | 10:1 | 15:1 |
CABLE/WEBBING/ROPE TYPE | Cable | Cable | Cable | Cable | Cable |
HOOK TYPE | Snap Hook | Snap Hook | Snap Hook | Snap Hook | Snap Hook |
APPLICATION | Direct Lift | Direct Lift | Direct Lift | Direct Lift | Direct Lift |
CABLE/WEBBING/ROPE LENGTH (MAXIMUM LENGTH) | 7.5m x 5mm (20m x 5mm) | 7.5m x 5mm (20m x 5mm) | 7.5m x 6mm (9.5mm x 6mm) | 7.5m x 6mm (9.5mm x 6mm) | 8m x 8mm – |
CAPACITY | 300kg (660lb) | 300kg (660lb) | 500kg (1100lb) | 500kg (1100lb) | 725kg (1600lb) |
RATCHET TYPE | Self Actuating | Self Actuating | Self Actuating | Self Actuating | Self Actuating |
UNIT WEIGHT | 5.56kg | 5.56kg | 6.09kg | 6.09kg | 10.5kg |
TOTAL DIMENSIONS (W X H X D) | 265 x 254 x 190.5 | 265 x 254 x 190.5 | 265 x 254 x 190.5 | 265 x 254 x 190.5 | 265 x 265.5 x 251.5 |
BARCODE NUMBER |
