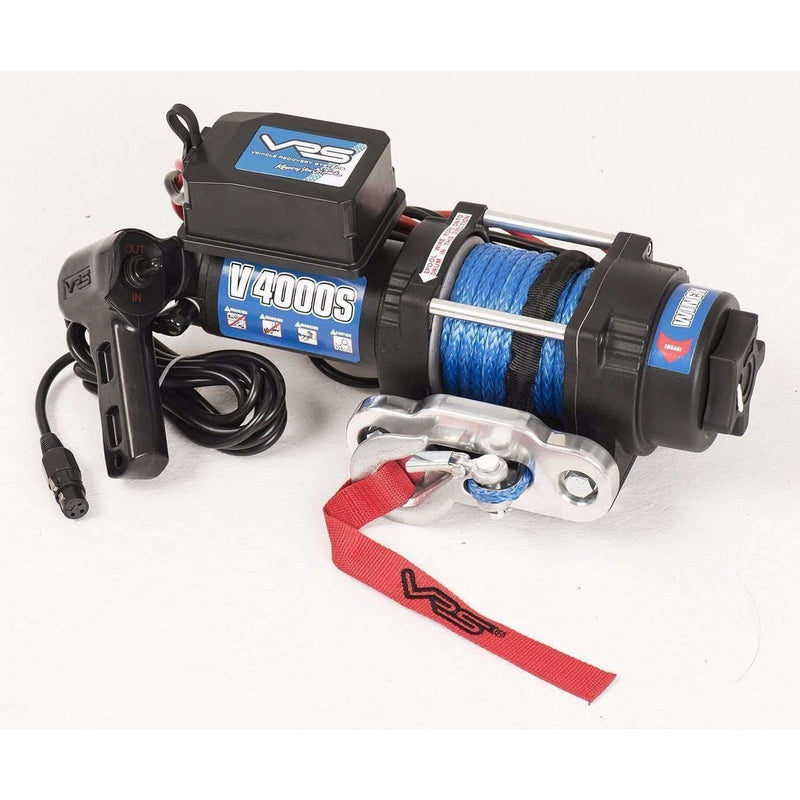

VRS V4000S Winch with Synthetic Rope V4000S
FEATURES
- Heavy duty sealed high amperage contactor
- Pendant control
- Textured UV and corrosion-resistant finish
- Sealed to resist water penetration
- Mechanical braking system
- 2 year mechanical and electrical components warranty
- Designed in Australia for the World
The VRS Utility Winch is a compact-sized winch to help you with those heavy jobs around the home or on the work site. Easily install on your trailer, ute, workshop, or more for a hassle-free winching solution.
SPECIFICATIONS
| Line Pull | 4,000lb/ 1,818kgs |
| Motor 12V | Permanent magnet 1.6hp/1.2kw DC12V |
| Gear Train | 3 stage planetary gears |
| Gear Ratio | 198: 1 |
| Freespool | Sliding ring gear |
| Brake | Automatic, in the drum |
| Battery | Recommended 650 CCA minimum for winching |
| Synthetic Rope Size | 6mm x 10m |
| Drum Size | 50mm x 76.5mm |
| Mounting Bolt Pattern | 124mm x 76mm |
| Dimensions | 334mm x 114mm x 120mm |
| Net Weight | 8.6kgs (19lbs) |
LINE PULL AND ROPE CAPACITY
| Layer of wire rope | Line Pull kg / lb | Total Rope on the Drum m/ft |
|---|---|---|
| 1st Layer | 1,818 / 4,000 | 2 / 6.6 |
| 2nd Layer | 1,460 / 3,225 | 4.3 / 14.1 |
| 3rd Layer | 1,225 / 2,700 | 7.2 / 23.6 |
| 4th Layer | 1,055 / 2,325 | 10 / 39 |
LINE SPEED AND AMP. DRAW (1ST LAYER OF ROPE ON THE DRUM)
| Line Pull kg/lb | Line Speed mpm/fpm | Amp. Draw 12V |
| No Load | 4.9 / 16.0 | 17 |
| 454 / 1,000 | 3.2 / 10.5 | 70 |
| 907 / 2,000 | 2.8 / 9.2 | 105 |
| 1,360 / 3,000 | 2.2 / 7.2 | 135 |
| 1,818 / 4,000 | 1.5 / 4.9 | 180 |
PACKAGE
| Winch Weight | 8.6 kg |
| Box Dimension | 480 x 250 x 220 mm |
STANDARD ACCESSORIES
Detachable Contactor Pack
Remote pendant control
Synthetic Rope with Hook
Hawse fairlead
Handsaver strap
ITEM NUMBER
V4000S
WARNING
Winches are not to be used for the lifting or moving of persons.
1 YEAR WARRANTY
Warrants the original purchaser that the mechanical and electrical components will be free of defects in material and workmanship for a period of 1 year from the original date of purchase.
VRS LImited Lifetime Warranty
