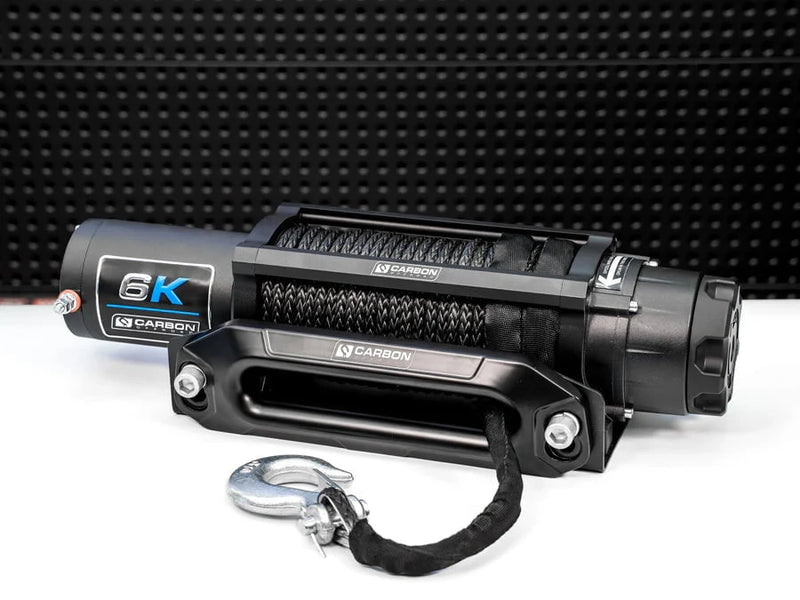

Carbon Offroad Long Drum 6000lb Winch – ATV, UTV & Small 4x4
Order in the next 3 hours 2 minutes to get it between -
Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t.
With 6,000 lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired + wireless remotes and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites—and weekend getaways—running smoothly.
- Sealed motor and geartrain allows for flawless operations in extreme conditions

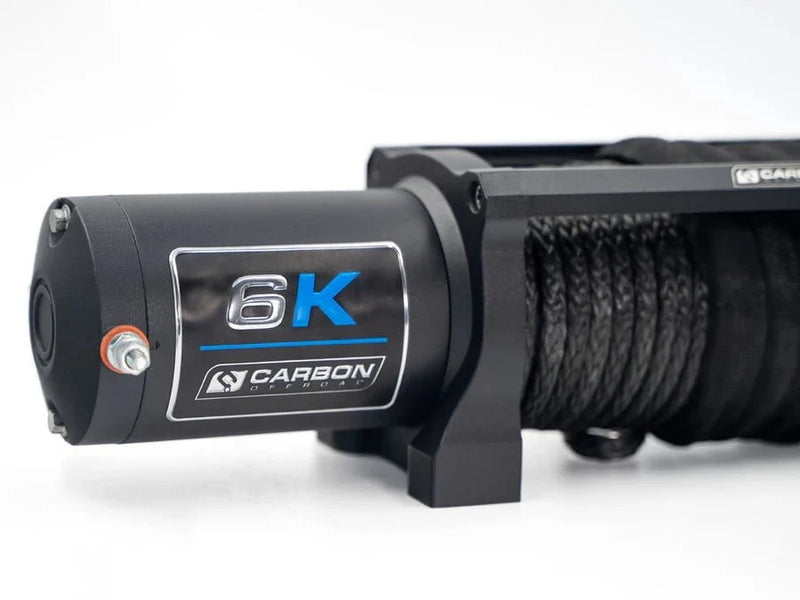

- Permanent magnet motor provides heavy duty torque for increased pulling power

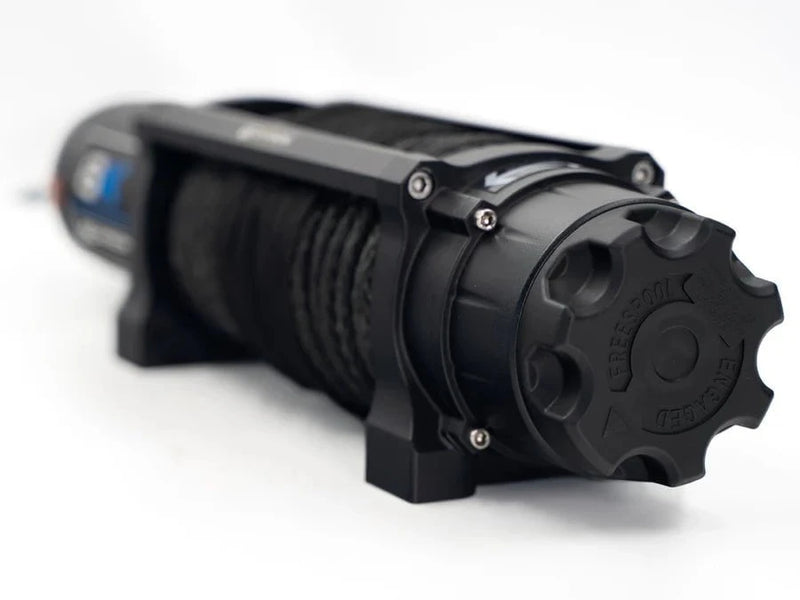

- Cam action disengages gears for near silent free-spooling
- Mechanical and dynamic brake offers increased control and prevents rollback
- Please note this kit does not include the winch cradle in the pictures.
- Part number: CW-XD6L
- Rated line pull: 6000 lbs, (2725kg) single-line
- Motor: 12V DC 2.5 HP permanent magnet
- Remote Control: Handlebar Mini-Rocker
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 147:1
- Clutch: Roller disc full load automatic
- Brake: Automatic brake in the motor bracket

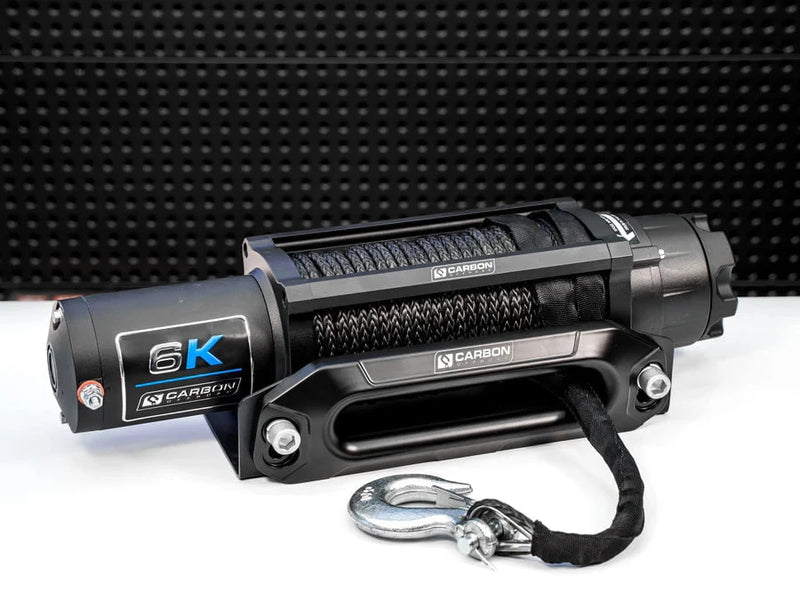

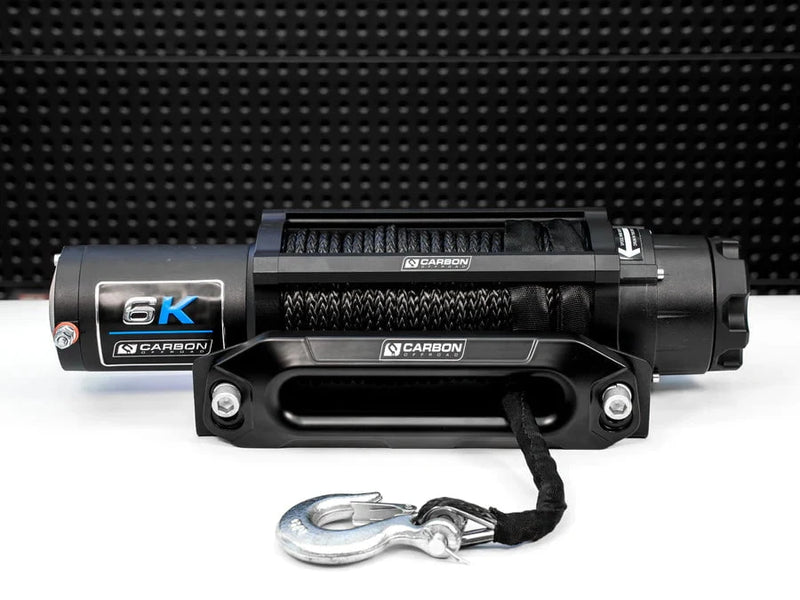

- Aluminium hawse
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- IP Rating: IP66 for winch and solenoid (excludes remote control and switch)

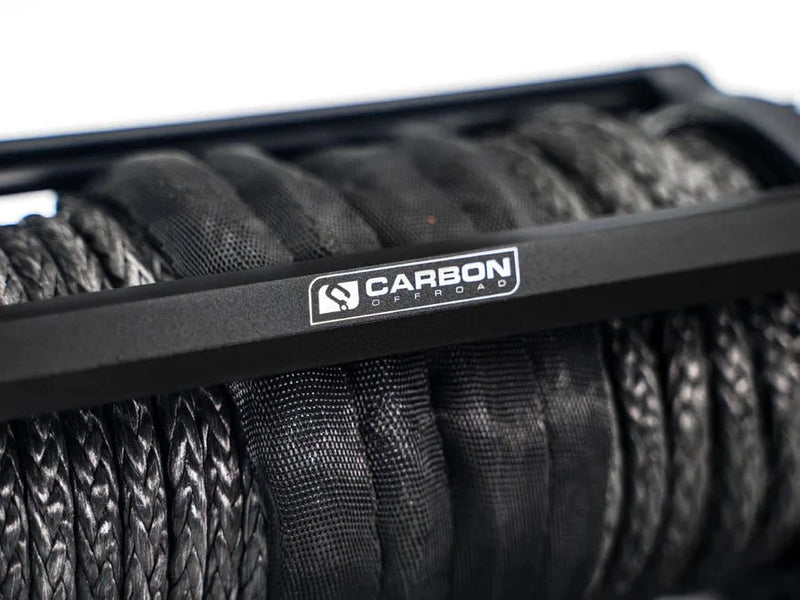

- Synthetic Rope: 26m x 6.5mm diameter

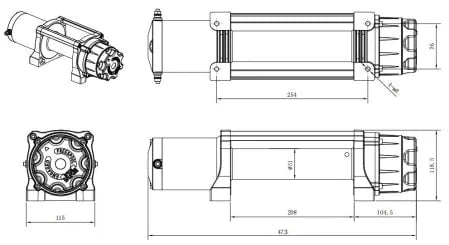

- Drum Diameter/Length: 51mm x 208mm
- Mounting Bolt Pattern: 254mm x 76mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 473 x 125 x 120mm
- Packing Dimensions (L x W x H): 530 x 170 x 230mm
- Winch weight with synthetic rope attached: 8.3kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
| Pull,Speed,Amperes,Volts(First layer) Line Pull | |||
|---|---|---|---|
| 12V DC PERFORMANCE SPECS | |||
| Line Pull lbs(kgs) | Line Speed ft/min(m/min) | Motor Current | Rated line pull lbs(kgs) |
| 0 | 13.8(4.2) | 15 | 1/6000(2725) |
| 2000(1814) | 9.5(2.9) | 125 | 2/5350(2430) |
| 4000(3629) | 7.2(2.2) | 190 | 3/4780(2170) |
| 6000(5443) | 4.6(1.4) | 240 | 4/4270(1940) |
