X-BULL 500A Winch Solenoid Relay Controller 12V with Wireless Remote Kit – Universal Replacement

Restore full control of your winch with this heavy-duty 500A X-BULL Solenoid Controller Kit.

Designed as a reliable replacement for most 12V winches, this complete kit includes a sealed 500A solenoid, wireless receiver, and twin wireless remotes for safe and convenient operation.

Perfect for 4WD recovery winches, trailers, boats, and utility applications.

✅ Key Features

• Heavy-Duty 500A Winch Solenoid
  Provides strong, reliable current flow for smooth winch operation under load.
• Dual Wireless Remotes Included (45m Range)
  Operate your winch safely from a distance. Ideal for solo recovery or trailer loading.
• Universal Compatibility – Works with Most 12V Winches
  Suitable for X-BULL, Giantz, Carbon, Kings, OzWinch, and most other solenoid-controlled winches.
• Sealed, Corrosion-Resistant Construction
  Designed to withstand harsh off-road, marine, and outdoor environments.
• Plug-and-Play Replacement Solution
  Ideal for replacing faulty solenoids, damaged control boxes, or upgrading to wireless control.
• Long Service Life
  Rated for up to 100,000 mechanical cycles and 50,000 electrical cycles.

🎯 Perfect For

• 4WD recovery winches
• Trailer winches
• Boat trailer winches
• ATV / UTV winches
• Utility and equipment winches
• Replacement for faulty solenoid or controller

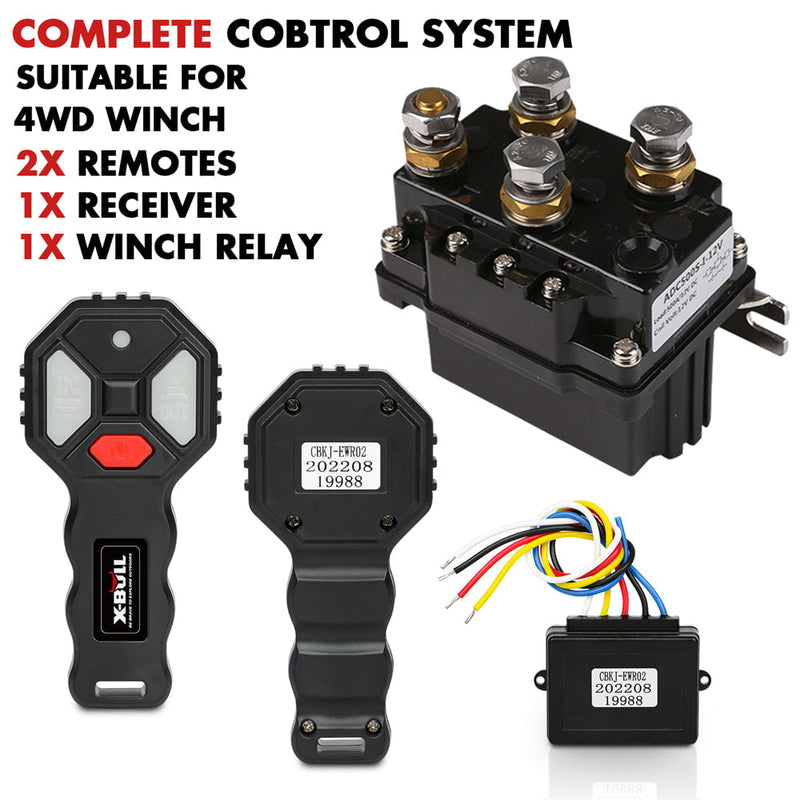

📦 What’s Included

• 500A Heavy-Duty Winch Solenoid
• Wireless Receiver Module
• 2 x Wireless Remote Controls
• Battery Included
• User Manual

⚙️ Technical Specifications

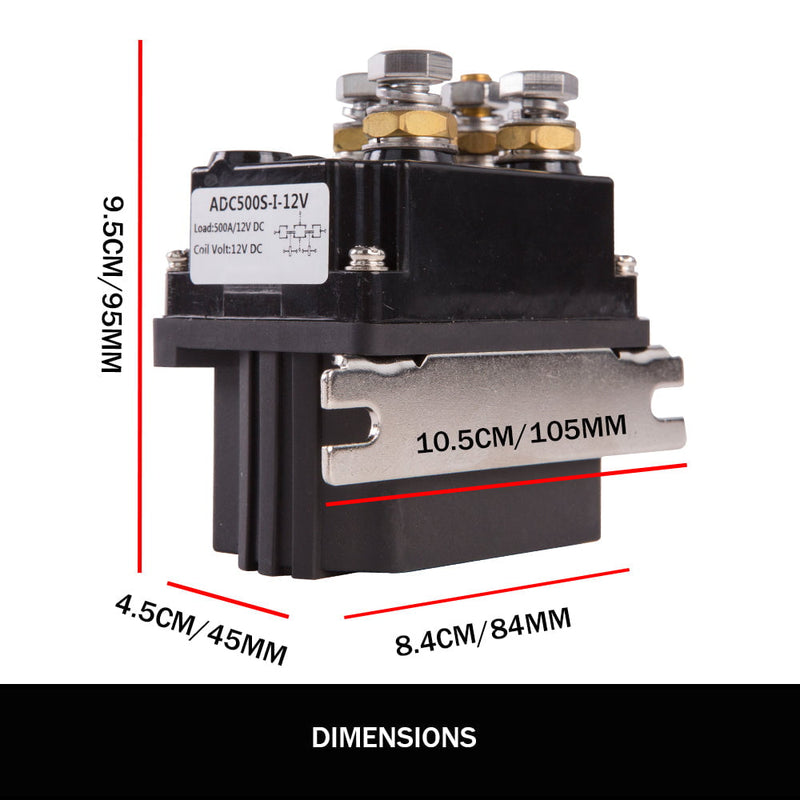

Solenoid:

• Voltage: 12V DC
• Current Rating: 500A
• Coil Voltage Range: 6–110V DC
• Mechanical Life: 100,000 cycles
• Electrical Life: 50,000 cycles
• Operating Temperature: -40°C to +85°C
• Sealed and corrosion resistant

Wireless Remote:

• Range: Up to 45 metres
• Frequency: 315MHz / 433.92MHz
• Visual LED operation indicator
• Twin remote handsets included

🔧 Easy Remote Activation

To activate remote:

Press and hold both buttons for 5 seconds until LED turns ON.

To turn off:

Press and hold both buttons for 5 seconds until LED turns OFF.

Remote automatically powers off after 2 minutes to preserve battery.

🚚 Why Buy From WinchWorld

• Fast dispatch from Australia
• Trusted Australian recovery gear supplier
• Local support and warranty
• Proven compatibility with most winches

💬 Common Use Case

This is the ideal replacement if your winch:

• Clicks but doesn’t turn
• Works intermittently
• Has a faulty or damaged control box
• Needs wireless remote functionality
