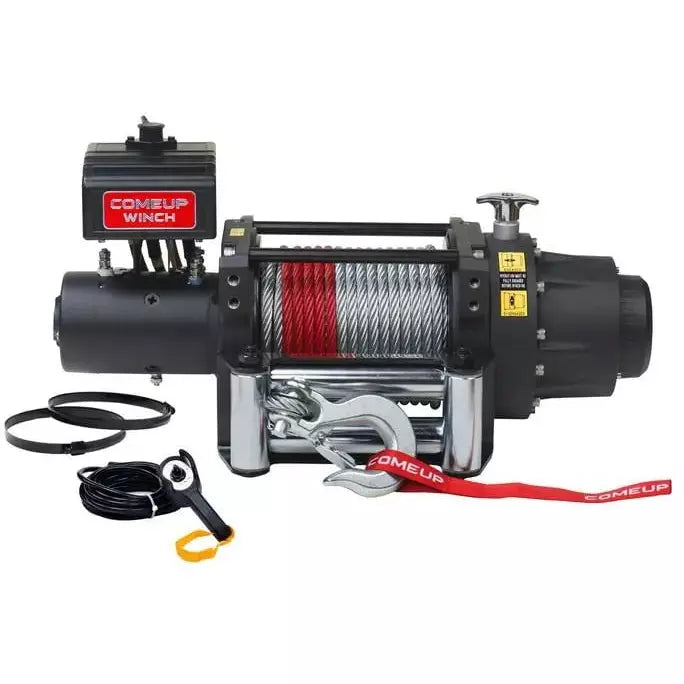

Comeup Seal GEN2 16.5, 12V Winch
✓ Fast Shipping + Order tracking
✓ Lowest Price Match Guarantee
✓ Free Extended Warranty
Order in the next 3 hours 2 minutes to get it between -
Description:
- 12V DC severe duty winch rated at 16,500 lb pulling meets or exceeds your expectations.
- Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
- 4 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to clock in 90 degree Increments.
- Water-proof remote control with thermometric LED indicator w/5 m cord
- Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch in foot forward mounting
- The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion.
- The greater the load on the rope, the greater amount of braking is generated by the mechanism.
- Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.
Specifications:
Rated Line Pull 16,500 lbs (7,484 kg) single line
Motor 5.8 hp / 4,325w 12V Series Wound
Gear Ratio 3-Stage Planetary 343:1
Clutch (freespooling) Rotating Ring Gear
Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum Die Cast Housing with Steel Drum
Drum Size 3.5" x 8" (89 x 204 mm)
Control waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope Type 6 x 29 - IWRC
Rope Size 7/16" x 90' (11.1mm x 27.4 m)

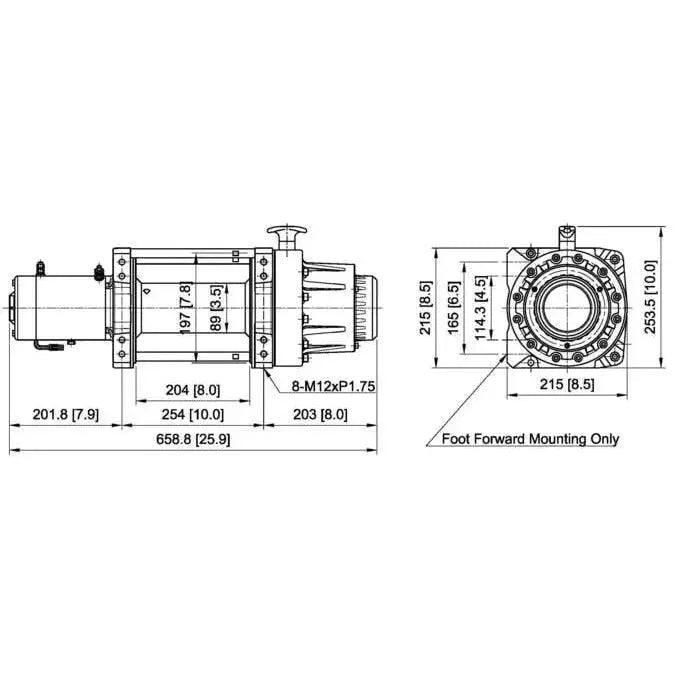

Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
Winch Weight 151 lb (68 .5kg)
Gross Weigh 172 lb (78 kg)
Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
Box Dimensions 27.2" x 10.6" x 15.9" (690 x 270 x 405 mm )
