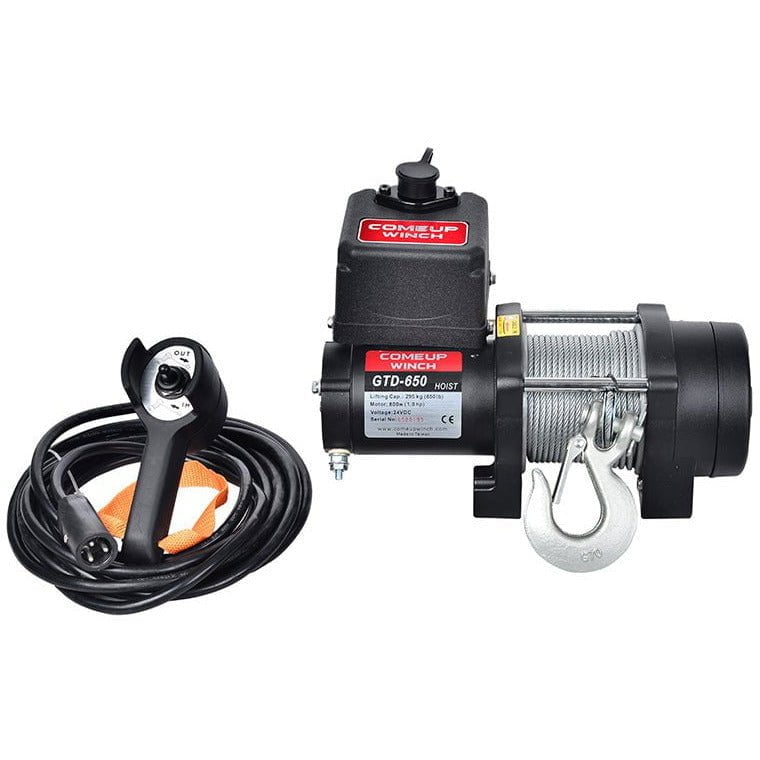

295 kg Heavy Duty Hoist
- Provides an answer to the health and safety recommendations for manual lifting
- High efficient low amp. draw and sealed permanent magnet motor.
- Lightweight and compact design is ideal for easy installation..
- Mechanical spring applied and permanent motor dynamic brakes together for safe, controlled load.
- Waterproof industrial remote control with 5 m lead
- Full metal 3 stage planetary gear train for greater pulling force.
- Submersible sealed contactor handles high amps and allows higher duty cycle.
- In compliance with standard of ASME B30.5 for D/dā„18 and rope safety factor ā„3.5
Ā
-
Part number:Ā
PNĀ 750265Ā (12V) /Ā PN 750280Ā (24V)
PN 750160Ā (12V) w / o controls and rope assembly
PN 750188Ā (24V) w / o controls and rope assembly - Rated line lift:Ā 295 kg /Ā 650 lbĀ
-
Line speed (at 1stĀ layer of rope):
12V :Ā 6.1Ā mpm / 20.0Ā fpm 20A at no load
Ā Ā Ā Ā Ā 4.4Ā mpm / 14.4Ā fpm 55A at full load
24V :Ā 7.0 mpm / 23.0Ā fpm 15A at no load
Ā Ā Ā Ā Ā 5.3Ā mpm / 17.4 fpm 30A at full load - Motor:Ā 800 w / 1.0 hp 12/24V permanentĀ magnet
- Gear ratio:Ā 3-stage planetaryĀ gear 138.5:1
- Brake:Ā Mechanical springĀ applied andĀ permanent motor dynamic brakes together
- Hoist construction:Ā Aluminum die housings andĀ drum

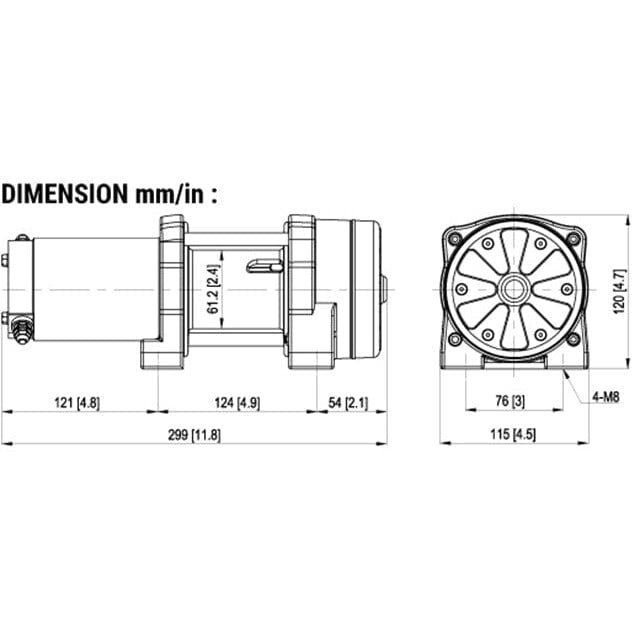

- Drum size:Ā 61.2 x 75 mm (2.4ā x 3.0")
- Control:Ā Remote control with 5 m (17') lead
- Rope type:Ā Galvanized aircraft A7 x 19
- Rope size:Ā 3.6 mm x 18.3 m (9/64" x 60')
-
Mounting boltĀ pattern:Ā 124 x 76 mm (4.9ā x 3ā)
Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU
-ASME B30.5
