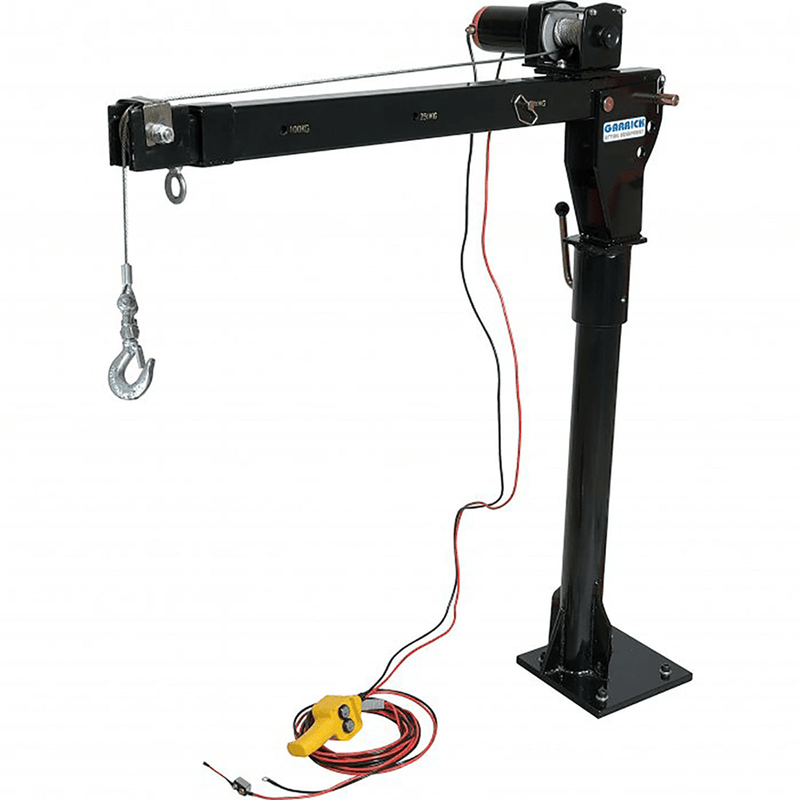

Garrick 12 Volt 500/800kg Capacity Swivel Ute Crane - UTECRANE500

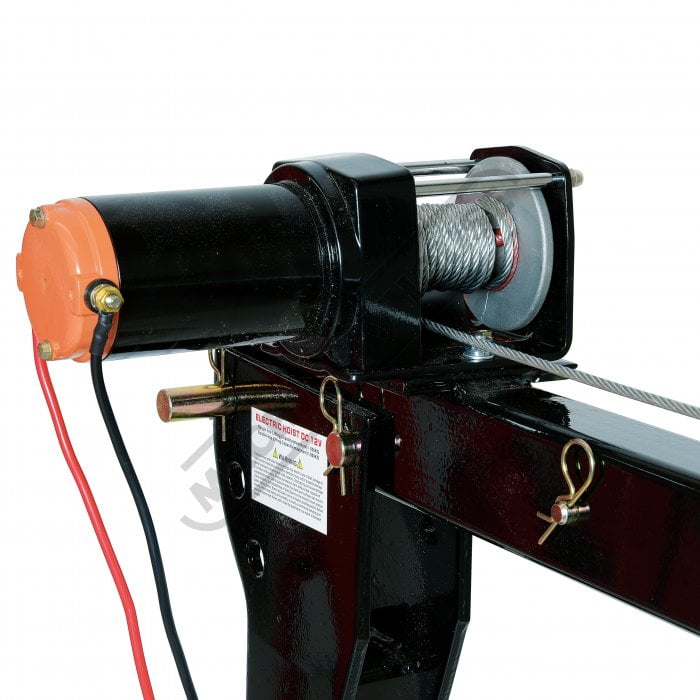

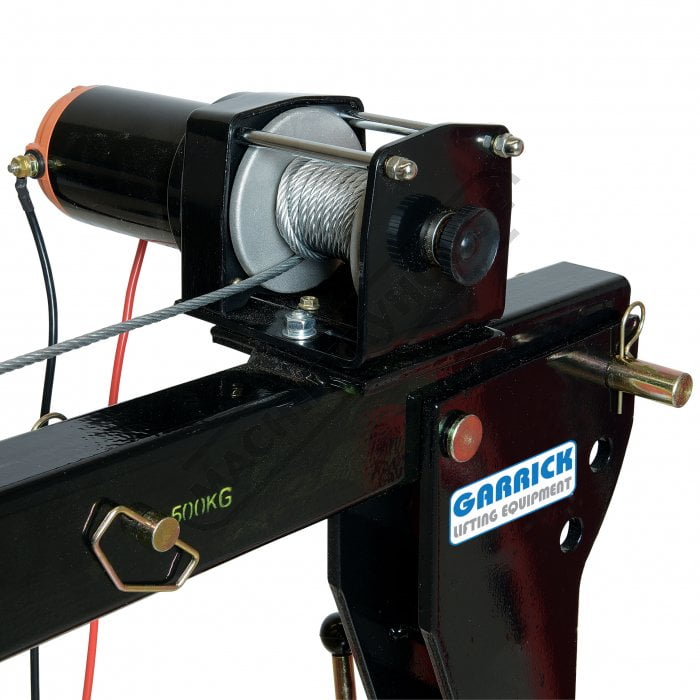

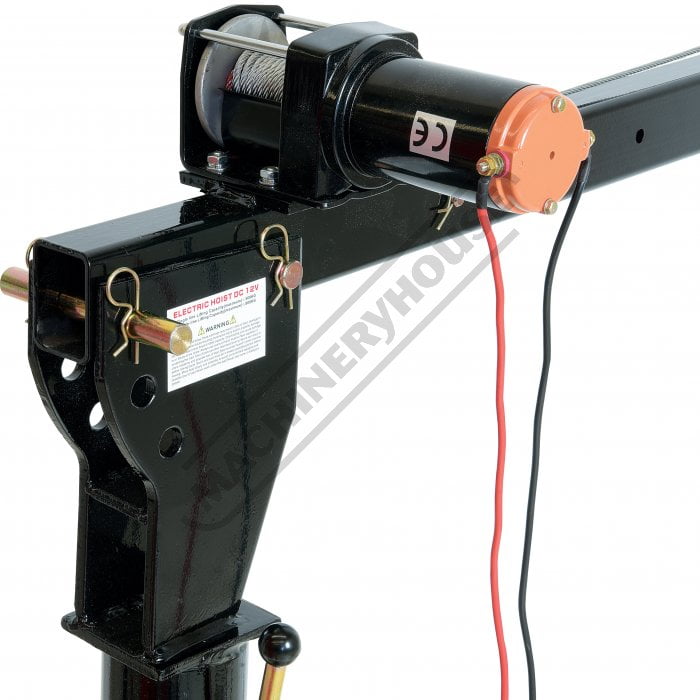

The UTECRANE500 utility crane is lightweight, portable & compact design for mounting onto ute's, service bodies, vans, trucks, loading docks, platforms for lifting goods on & off up to 500kg with a single line lift via the powerful 12 volt DC winch.
Features & Benefits
- Compact, light weight & can be used in confined spaces.
- 500/800kg capacity, when set up with single/double line lifting
- 360 degrees rotation – 3.6 metre/minute lifting speed.

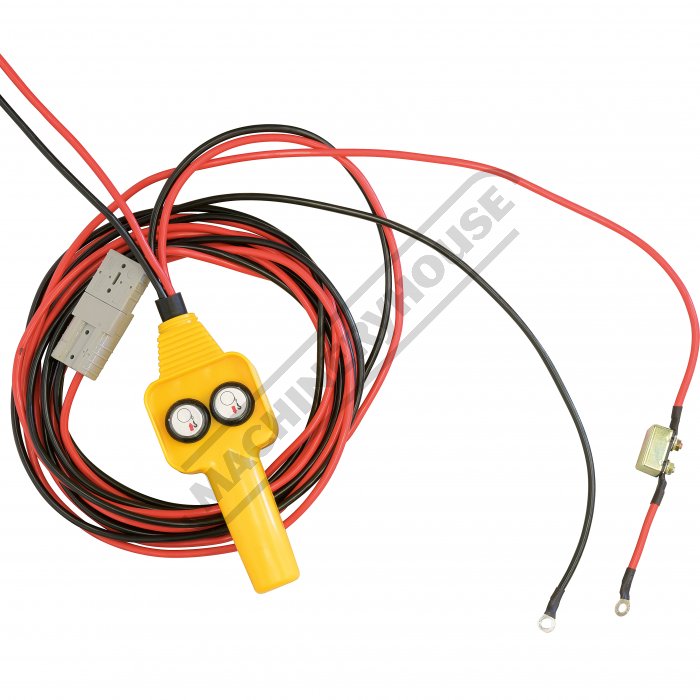

- 12 volt – with 4.2 metre switch cable
- Weight 64kg

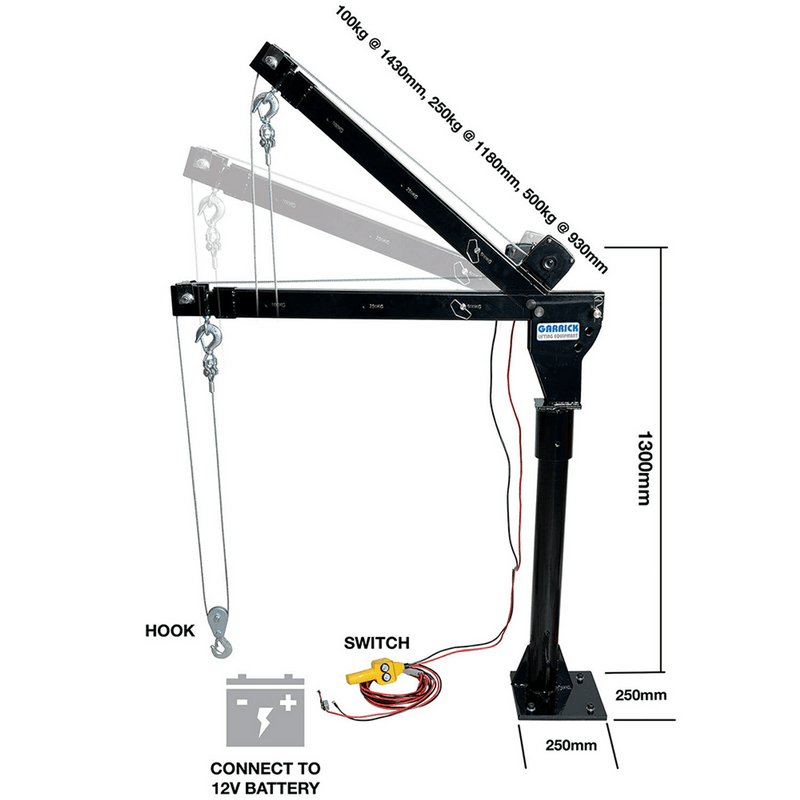

Specifications
| Single Line Lifting Capacity (Maximum) | 500kg |
| Double Line Lifting Capacity (Maximum) | 800kg |
| Lifting Height Max.Std. (Base to Hook) | 1940mm |
| Reach Max (From Centre of Rotation) | 1490mm |
| Lifting System | Electric Winch |
| Rotation with Brake | 360° Manual |
| Lifting Cable | 4.8mm x 4.5mm (For Single-Line Lifting) 4.8mm x 5.5mm (For Double-Line Lifting) |
| Line Speed with No Load | 3.8m/min Single Line |
| Power Requirements | 12V DC 125Amps |
| Switch Cable | 4.2m |
| Mounting Base | 250mm x 250mm x 16mm |
| Mounting Bolt Hole Pattern | 170mm x 170mm |
| Finish | Powder Coated |
| Net Weight | 64kg |
- Brand
- Garrick Herbert
- weight
- 60kg
