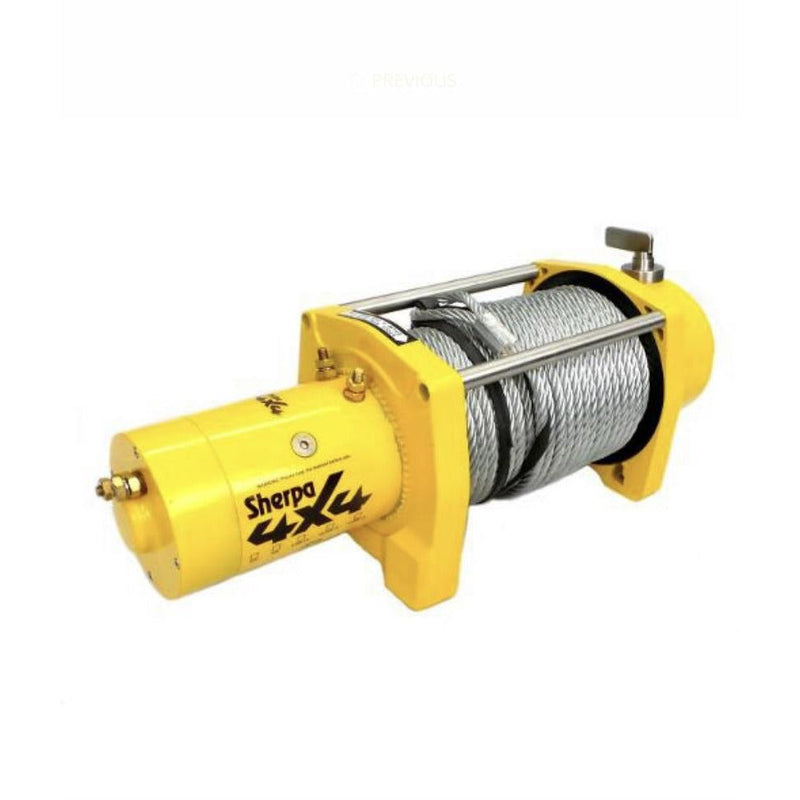

20,000LB ELECTRIC TOW TRUCK WINCH
Designed specifically for people wanting a hoist style of winch suited to loading equipment on and off trailers and trucks. These winches are built with advanced features to ensure the best performance for this type of application.
| Specifications | Value |
|---|---|
| Rated Line Pull | 20,000lb (9,090kg) |
| Motor | 6.6hp in 12V or 24V options |
| Gearbox | 3 Stage Planetary |
| Rope/Cable |
28m of 10mm synthetic ropeĀ rated to 23,760lb MBS (Minimum Breaking Strength) 28m of 10mm steelĀ cable rated to 19,400 Lb MBS Note: Rope or cable is supplied loose shipped for user to install after winch has been installed. Users may wish to further shorten the rope/cable to suit the length of the trailer/truck application and maximise the winch performance. |
| Mounting Bolt Diameter | 11.2mm |
| Drum Size (Dia x Length) | 64mm x 224mm |
| Mounting Bolt Pattern | 254mm x 114.3mm |
| Weight | Ā 45kg |
| Dimensions | 570 X 145 X 225 mm |
| Clutch | 180 degree turn, free spooling, slide ring gear |
| Brake | Automatic in motor |

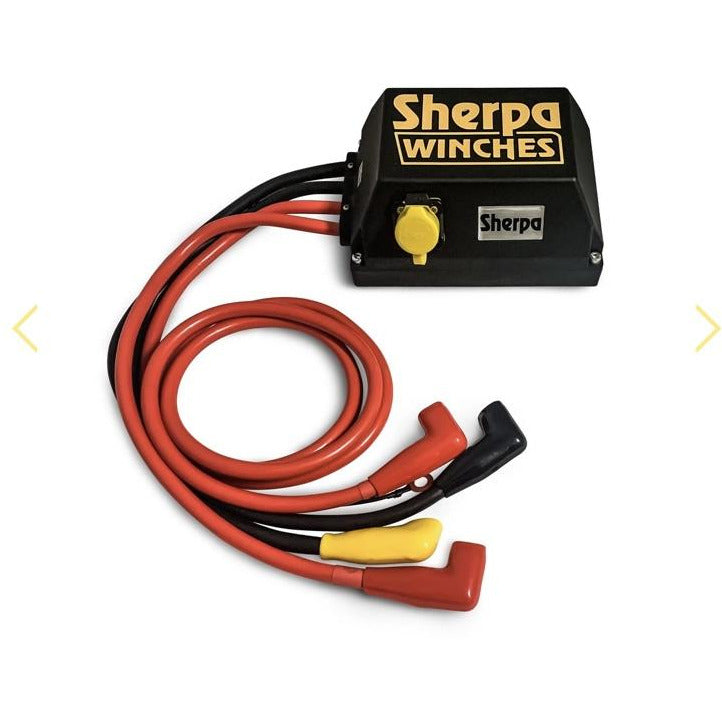

| Solenoid | Albright International Heavy Duty |
| Duty Cycle | Intermittent |
| Fairlead / Hawse | Cable (4 way roller fair lead) Ā | Ā Rope (polished aluminium hawse) |
| Battery Leads | 1.8m long |

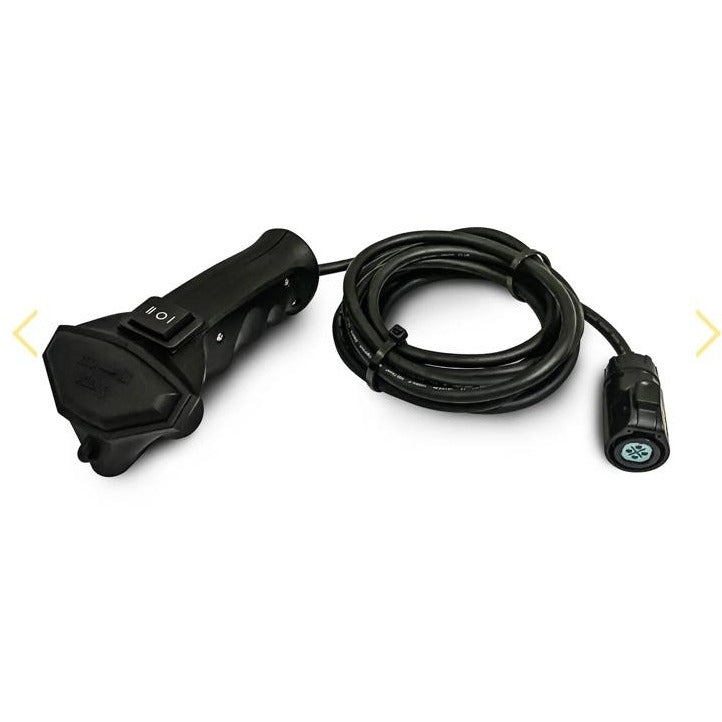

| Hand Remote Lead | 3.5m long |
| Water Ingress Rating | IP66 |
| Warranty | 5 Years |
Ā
12V WINCH PERFORMANCE DATA
| Line Pull (Lb) | Line Speed (m/min) | Motor Current (A) |
|---|---|---|
| 0 | 5.7 | 65 |
| 1500 | 4.8 | 80 |
| 3,000 | 3.8 | 120 |
| 6,000 | 3.0 | 155 |
| 9,000 | 2.5 | 190 |
| 12,000 | 2.1 | 225 |
| 15,000 | 1.8 | 265 |
| 18,000 | 1.6 | 300 |
| 20,000 | 1.5 | 400 |
24VĀ WINCH PERFORMANCE DATA
| Line Pull (Lb) | Line Speed (m/min) | Motor Current (A) |
|---|---|---|
| 0 | 5.9 | 35 |
| 1500 | 5.1 | 40 |
| 3,000 | 4.0 | 60 |
| 6,000 | 3.2 | 80 |
| 9,000 | 2.8 | 95 |
| 12,000 | 2.3 | 115 |
| 15,000 | 2.1 | 140 |
| 18,000 | 1.8 | 155 |
| 20,000 | 1.7 | 200 |
