X-BULL Electric Winch 12V Synthetic Rope Wireless 14500LB Remote 4X4 4WD Boat

Introducing

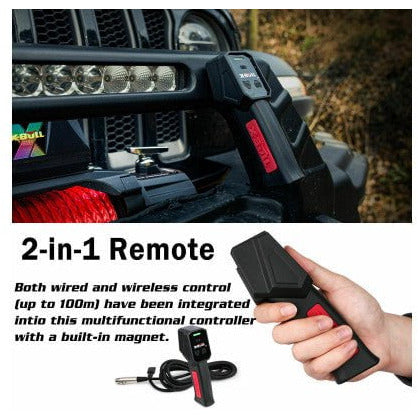

The X-BULL 14500lbs is one of our new X-BULL high-efficiency winches for all off-road and life-loving customers in 2021. Over the past few years, we document the item issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one. Notably, the X-BULL 14500lbs consolidates the gearbox and updates the clutch and motor. The wireless remote is combined with the hand switch to make it easier for our customers to use. The clutch is specially designed to be ergonomic and suitable for installation from different angles.Make our customers more comfortable with their use.

X-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.

FEATURES:

1. Multi position control box
Integrated control box, works underwater, contact material includes high current conduction which provides protection on excessive current, voltage and temperature.

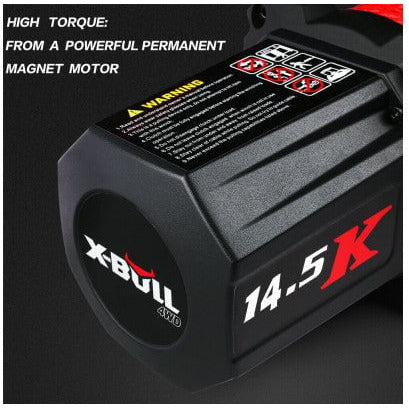

2.Motor
Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

3.3-Stage Planetary
The real three sets of 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).

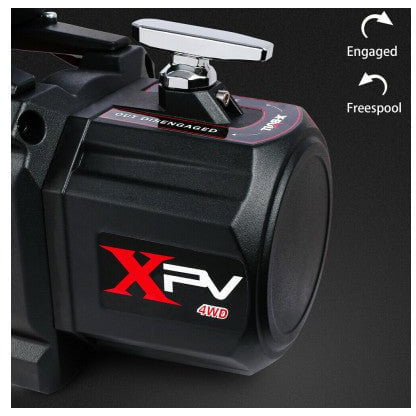

4.Clutch
The clutch can be rotated every 15 degrees and can be rotated 180 degrees. In order for our customers to find the right angle for their installation.

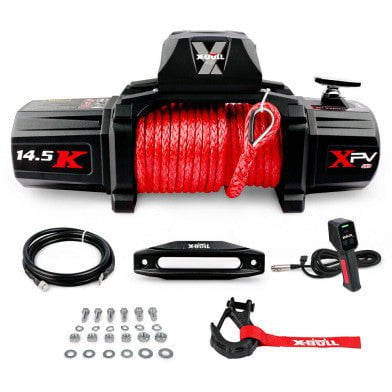

IN THE BOX:

1* 14500LBS Winch
1* Remote Control
1* Hand Switch
1* Aluminium Hawse Fairlead
1* Clevis Hook
1* Control Box
1* Set of Bolts
1* User Manual
3* Motor leads
1* Power leads

SPECIFICIATION:

Gear Ratio:265:1
Weight:59.5 lb. (27 kg.)
Sound Rating 85 dB
Gear train: 3-Stage Planetary
Fairlead Aluminium Fairlead
Battery 12V DC Minimum 650 CCA
Mounting Pattern:10″ x 4.5″ (254mm
Rope Size:0.375″ X 80′ (9.5mm X24.4m)
Motor:12V DC 6.4 HP Series WoundnDrum (Dia. X L) 2.5″ X 9.6″ (64mm x 244mm)
Rated Single Line Pull: 14500 lb.(6590 kg.)
Hook:3/8″, Replaceable with Spring-loaded Safe ty Latch

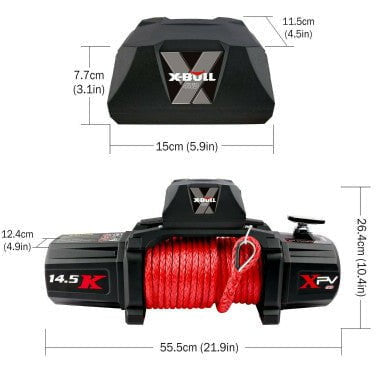

Overall Dimensions(LXDXH):21.25″ X 6.3125″ X 10.125″ (540x160x257mm)
Application:Vehicle Recovery / For Trucks and SUV etc
