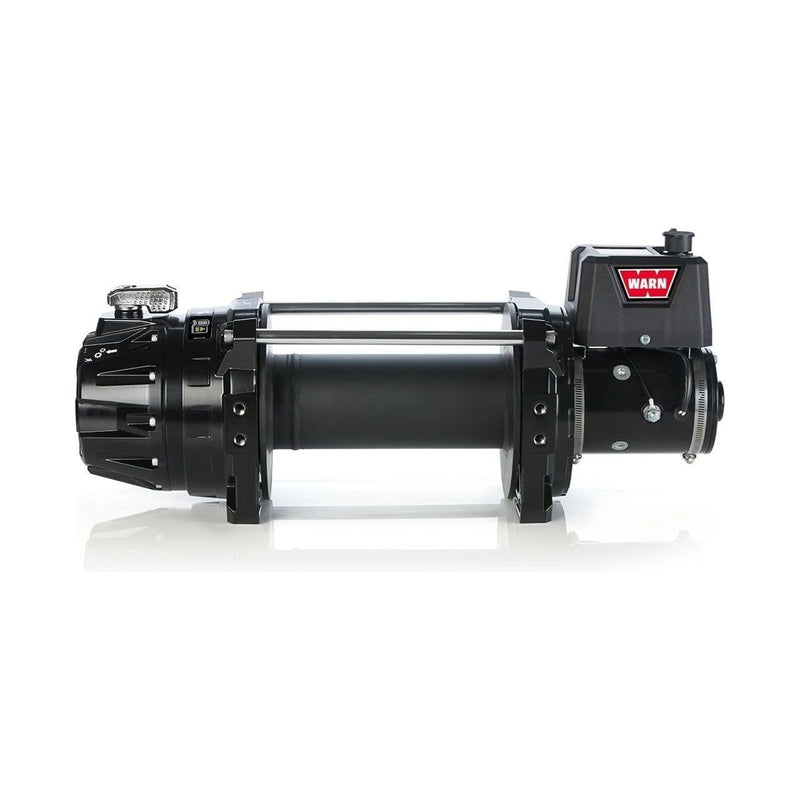

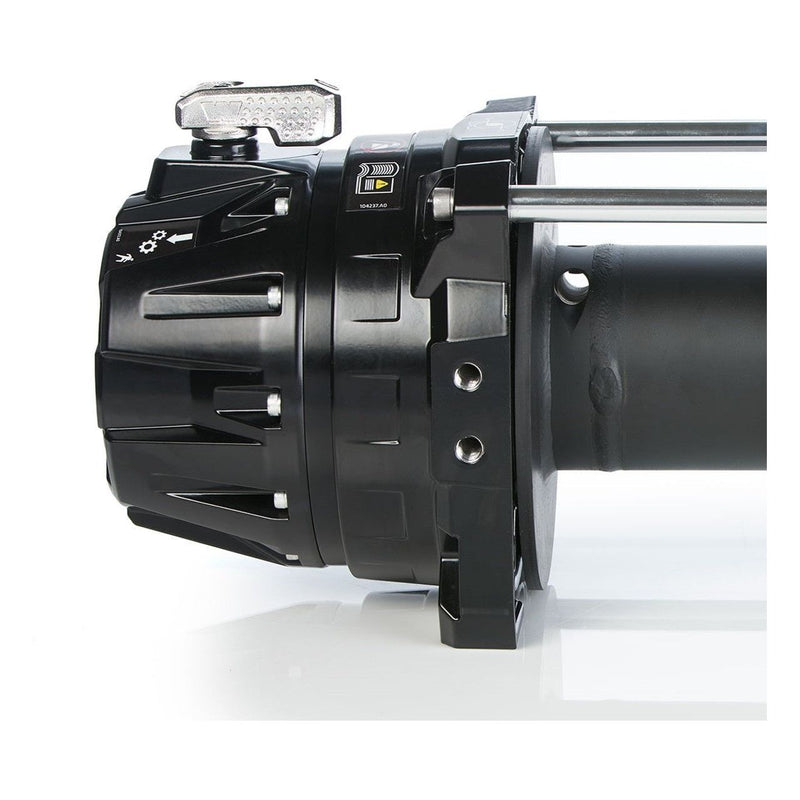

Warn Industrial Dc Hoist 18000lbs Series 18 Dc

by Warn

Original price $5,770 - Original price $5,770
Original price
$5,770
$5,770 - $5,770
Current price $5,770

✓ Fast Shipping + Order tracking
✓ Lowest Price Match Guarantee
✓ Free Extended Warranty

Order in the next 3 hours 2 minutes to get it between -

Warn Industrial Dc Hoist 18000lbs Series 18 Dc

SERIES 18 DC

Heavy Pulling Power of up to 18,000 lbf. (single line)

  • Dependable high-torque series-wound 24V DC electric motor
  • Weatherproof industrial contactor control pack
  • Rugged 32′ (10 m) industrial remote control
  • Disc brake designed for extended power-out use
  • Thermal overload switch protects motor from overheating
  • Wire rope, roller fairlead, and tensioner sold separately

SERIES 18 DC SPECIFICATIONS

Part Number: W18000-72005 (24V)
Rated Pulling Force: 18000 lbf (8165 kgf)
Drum Barrel Diameter: 4.0 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight: 103.0 lbs (46.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 40 ft (12.2 m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2″ dia. rope)
Gear Reduction: 315:1
Brake Type: Disk
Contactor / Remote Type:  Industrial contactor with 33′ (10m) heavy duty remote
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC

24V PERFORMANCE DATA BY LAYER – 1/2″ (12.7 MM) DIA. ROPE

Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 18000 8165 80.1 18.5 5.6 20 6.1
2 14727 6680 65.5 22.2 6.8 45 13.7
3 12462 5653 55.4 26.7 8.1 75 22.9

24V FIRST LAYER PERFORMANCE

Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 58.1 18.5 5.6 4.3
3000 1361 104.0 11.0 3.4 2.0
6000 2722 137.8 8.6 2.6 1.5
9000 4082 169.4 7.1 2.2 1.2
12000 5443 209.7 6.0 1.8 0.9
15000 6804 253.2 4.9 1.5 0.7
18000 8165 278.2 4.6 1.4 0.7
