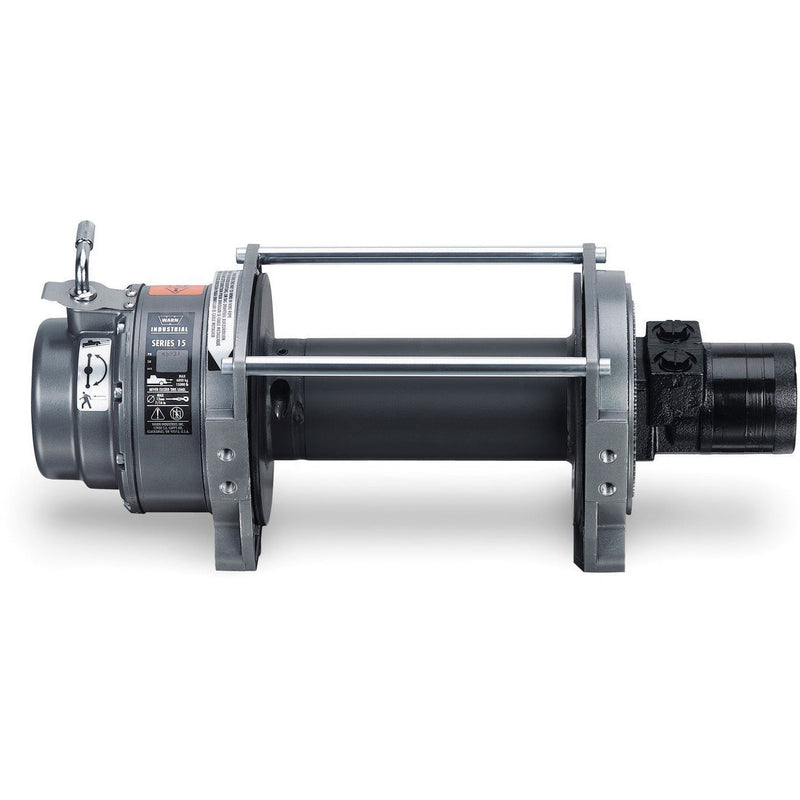

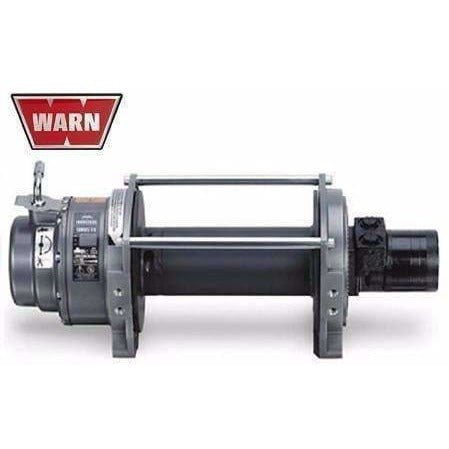

Warn Series 15 hydraulic winch 15000lb / 6818kg

Name: Warn Series 15 hydraulic winch 15000lb / 6818kg
Brand: Warn
SKU: W15000-65931
Price: 4236.0 AUD
Availability: InStock

by Warn

$4,236 - $4,236

$4,236

$4,236 - $4,236

$4,236

✓ Fast Shipping + Order tracking
✓ Lowest Price Match Guarantee
✓ Free Extended Warranty

Quantity

Order in the next 3 hours 2 minutes to get it between -

Details

Series 15
Pulling Capacity of up to 15,000 lb / 6818kg (single line)

For tow, utility and trailer applications
6.0 cubic-inch motor provides pulling capacity up to 15,000 lbf.
Hardened steel two-stage planetary geartrain with 36:1 reduction provides fast line speed
Heavy-duty disc brake for dependable operation and plenty of holding power
Meets SAE J706 and CE standards
Wire rope, roller fairlead, and tensioner sold separately

15 HYD SPECS/PART NUMBERS

Part Number: 65931

Rated Pulling Force: 15000 lbf (6804 kgf)

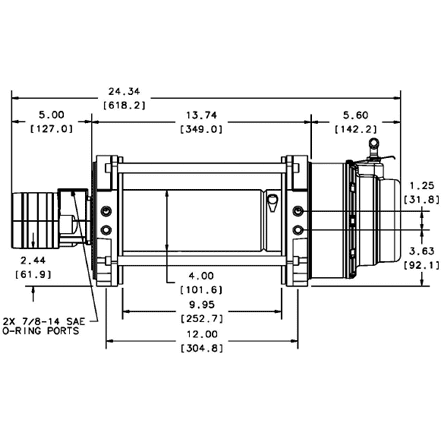

Drum Barrel Diameter: 4.00 in (102 mm)

Drum Flange Diameter: 8.24 in (209 mm)

Distance Between Flanges: 9.95 in (253 mm)

Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)

Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)

Approximate Shipping Weight: 83.0 lb (37.6 kg)

Duty Cycle (intermittent per SAE J706 section 6.2): 932 ft (284 m)

Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)

Maximum Layers of Wire Rope: 3 (with 1/2" dia. rope)

Gear Reduction: 36:1

Brake Type: Disk

Contactor / Remote Type: N/A

Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC

ACCESSORIES

Wire Rope Tension Plate 10'': PN 31149

Fairlead Black 10'': PN 24336

Fairlead Chrome 10": PN 30859

Remote Clutch Mechanical: PN 38316

Remote Clutch Air: PN 71370

Wire Rope Assembly 1/2''x75' EIPS: PN 77534

PERFORMANCE DATA BY LAYER - 1/2" (12.7 mm) dia. rope
Drum	Line Load *			Line Speed 10 GPM		Line Speed 15 GPM		Drum Capacity
Layer	lbf	kgf	kN	ft/min	m/min	ft/min	m/min	ft	m
1	15000	6804	66.7	12.8	3.9	18.9	5.8	21	6.4
2	12273	5567	54.6	15.6	4.8	23.1	7.0	46	14.0
3	10385	4711	46.2	18.5	5.6	27.3	8.3	75	22.9
* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.
