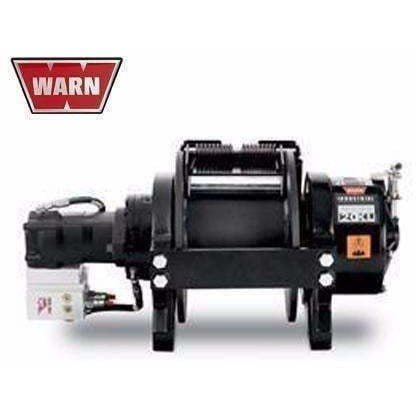

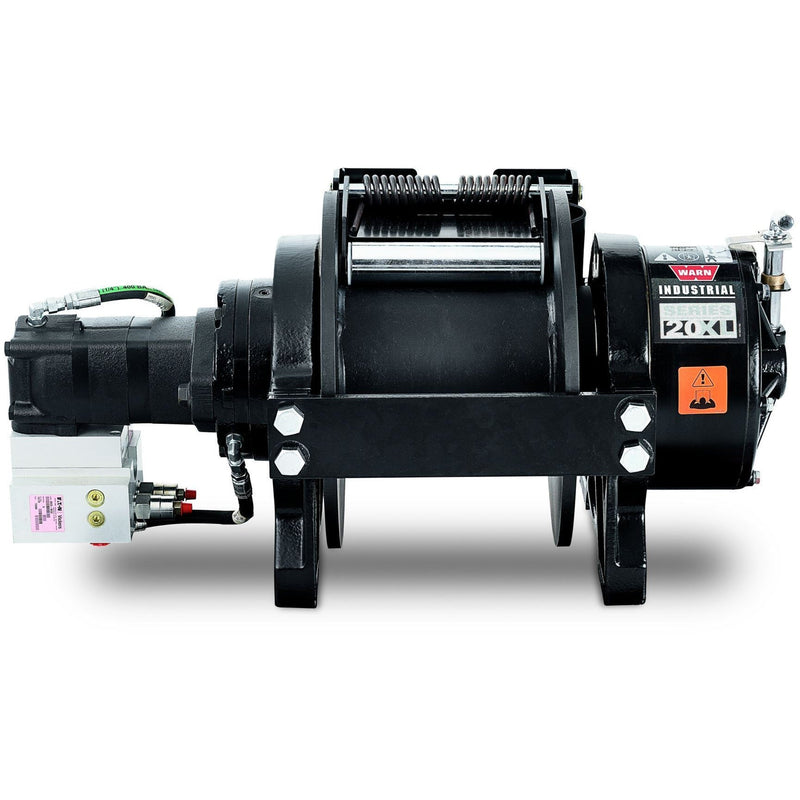

Warn Series 20XL hydraulic winch 20000lb / 9070kg

by Warn
$11,300
$11,300 - $11,300
$11,300
$10,280
$10,280 - $10,280
$10,280
2760 ft 970000
Shipping across Australia
Free standard delivery on eligible orders $100+.
Buy with confidence

Details

SERIES 20XL Great for big jobs, Trailers, or Severe-Duty Applications
  • 8.0 cubic-inch high-performance motor with 20,000 lbf. capacity
  • Spring-applied disc brake designed to hold the full-rated load
  • Hardened aircraft-grade nickel chromoly two-stage planetary geartrain for speed and reliability
  • Available in air and manual clutch options
  • Available in standard and long-drum versions
  • Meets SAE J706 and CE specifications
PN 74750 (Standard Drum, Air Clutch)


20XL HYD SPECS/PART NUMBERS
Rated Pulling Force: 20,000 lbf (9,072 kgf)
Drum Barrel Diameter: 5.75 in (146 mm)
Drum Flange Diameter: 12.25 in (311 mm)
Distance Between Flanges, Short Drum: 8.0 in (203 mm)
Distance Between Flanges, Long Drum: 14 in (356 mm)
Recommended Maximum Wire Rope Diameter: 9/16 in (14.3 mm)
Recommended Minimum Wire Rope Breaking Strength: 33600 lbf (15241 kgf)
Approximate Shipping Weight for 74750 & 77550: 297 lb (135 kg)
Approximate Shipping Weight for 77560 & 77570: 322 lb (146 kg)
Duty Cycle (intermittent per SAE J706section 6.2): 2760 ft (841.2 m)
Mounting Bolt Torque: 159 ft*lbf (216 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 28.5:1
Brake Type: Spring Applied Disk
Contactor / Remote Type: N/A
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
ACCESSORIES (STANDARD DRUM)
Fairlead SRS-XL-STD: PN 77532
Wire Rope Assembly 9/16''x140' EIPS: PN 77451
Snatch Block XL-60K LB: PN 80858


FIRST LAYER PERFORMANCE
Line Load Pressure Drop at 15 GPM Pressure Drop at 20 GPM Duty Cycle
lbf kgf psi BAR psi BAR min/10min
0 0 870 60.0 1055 72.7 N/A
5000 2268 1256 86.6 1500 103.4 N/A
10000 4536 1855 127.9 2070 142.7 N/A
15000 6804 2470 170.3 2630 181.3 N/A
20000 9072 2985 205.8 3000 206.8 N/A
