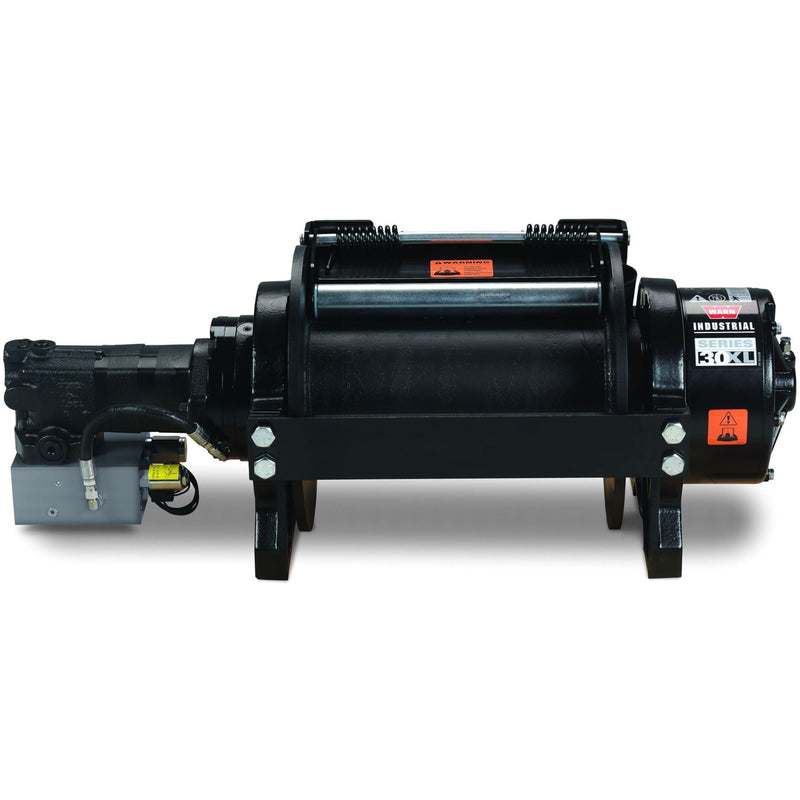

Warn Series 30XL Hydraulic Winch 30000lb / 13608kg
by Warn
Original price
$14,000
-
Original price
$14,000
Original price
$14,000
$15,455
$15,455
-
$15,455
Current price
$15,455
Dispatch timing may vary by product and supplier.
2,300+ customers served
- ✔ Free shipping over $100
- ✔ Australian-based support
- ✔ Secure checkout
- ✔ 30-day returns
For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic Motors allow for extended duty. Hardened steel, two-stage Planetary Gear Trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world-wide quality and safety standards.
- 12 Cubic Inch High Performance Motor With 30,000 Pounds Capacity, Great For Trailers, Roll Back Carriers, And Severe Duty Applications
- Spring Applied Disc Brake Designed To Hold The Full Rated Load
- Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
- Meets SAE J706 And CE Specifications
- Limited Lifetime Warranty on Mechanical Components, Limited 5 year Warranty on Electrical Compon
Specifications:
| TYPE | Hydraulic |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Industrial |
| VOLTAGE | Not Applicable |
| MOTOR HORSEPOWER | Not Applicable |
| ELECTRICAL CONTROL TYPE | Not Applicable |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 36:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Spring Applied Disc |
| LINE DIAMETER (IN) | No Rope |
| LINE LENGTH (FT) | No Rope |
| LINE MATERIAL | No Rope |
| FAIRLEAD TYPE | No Fairlead |
| CONFORMS TO J706 STANDARDS | Yes |
| REMOTE TYPE | No Remote |
| MOUNTING HOLE QUANTITY | 8 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 18 Inch |
| MOUNTING PATTERN WIDTH (IN) | 7-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Black |
| MAX LINE PULL/ LINE SPEED | 30000 Pound/ 21.9 Feet Per Minute |
