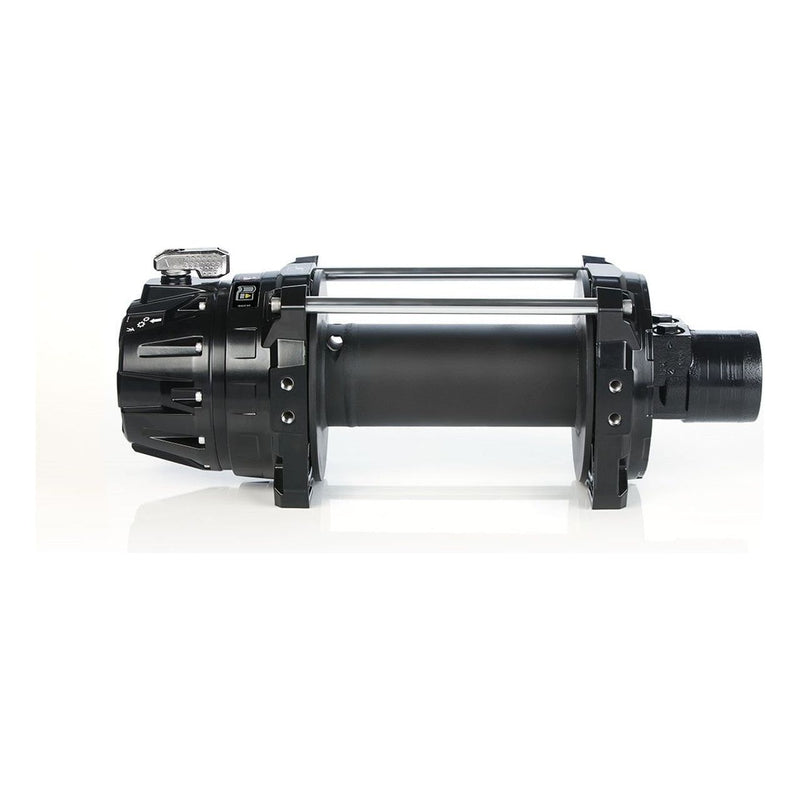

Warn Series 9 hydraulic winch 9000lb / 4100kg

Details

Series 9 Dependable Workhorse with 9,000lb / 4100kg of Pulling Power

Perfect for tow, utility and trailer applications
Hardened steel, two-stage planetary geartrain provides faster line speeds
Heavy-duty automatic disc brake provides dependable operation
Meets SAE J706 and CE standards
Wire rope, roller fairlead, and tensioner sold separately

9 HYD SPECS

Part Number: 30279 (Anti-clockwise, 3.0 cu in motor) Note: Due to the hydraulic motor sizing, this winch is designed for increased linespeed with a Rated Pulling Force of 7500 lbf (3402 kgf).

Rated Pulling Force: 9000 lbf (4082 kgf)

Rated Pulling Force for PN 30279: 7500 lbf (3402 kgf)

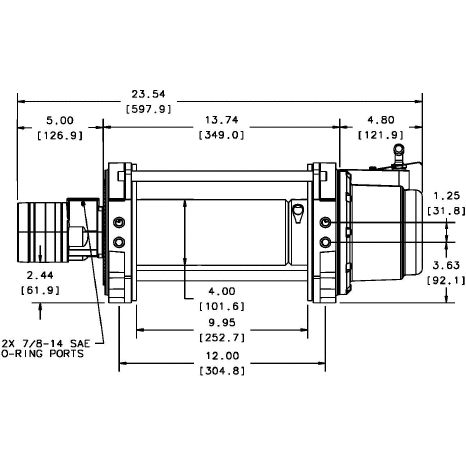

Drum Barrel Diameter: 4.00 in (102 mm)

Drum Flange Diameter: 8.24 in (209 mm)

Distance Between Flanges: 9.95 in (253 mm)

Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)

Recommended Minimum Wire Rope Breaking Strength: 15,100 lbf (6849 kgf)

Approximate Shipping Weight for PN 30279 & 30281: 80.00 lb (36.3 kg)

Approximate Shipping Weight for PN 30282: 98.0 lb (44.5 kg)

Duty Cycle (intermittent per SAE J706 section 6.2): 1034 ft (315 m)

Duty Cycle (intermittent per SAE J706 section 6.2) for PN 30279: 305 ft (93 m)

Mounting Bolt Torque: 35-40 ft*lbf (47-54 N*m)

Maximum Layers of Wire Rope: 4 (with 3/8" dia. rope)

Gear Reduction: 27:1

Brake Type: Disk

Contactor / Remote Type: N/A

Standards Compliance PN 30279 & 30281:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC

Standards Compliance PN 30282: SAE J706

ACCESSORIES

Wire Rope Tension Plate 10'': PN 31149

Fairlead Black 10'': PN 24336

Fairlead Chrome 10'': PN 30859

Remote Clutch Mechanical: PN 38316

Remote Clutch Air: PN 71370

Wire Rope Assembly 3/8''x125' EIPS: PN 23674

PN 30281 & 30282 PERFORMANCE DATA BY LAYER - 3/8" (9.5 mm) dia. rope
Drum	Line Load *			Line Speed 10 GPM		Line Speed 15 GPM		Drum Capacity
Layer	lbf	kgf	kN	ft/min	m/min	ft/min	m/min	ft	m
1	9000	4082	40.0	19.9	6.1	28.5	8.7	25	7.6
2	7364	3340	32.8	23.8	7.3	34.1	10.4	54	16.5
3	6231	2826	27.7	27.7	8.4	39.8	12.1	88	26.8
4	5400	2449	24.0	31.7	9.7	45.4	13.8	126	38.4
* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.

PN 30281 & 30282 FIRST LAYER PERFORMANCE
Line Load		Pressure Drop at 10 GPM		Pressure Drop at 15 GPM		Duty Cycle
lbf	kgf	psi	BAR	psi	BAR	min/10min
0	0	242	16.7	358	24.7	N/A
1500	680	494	34.0	622	42.9	N/A
3000	1361	800	55.1	887	61.1	N/A
4500	2041	1110	76.5	1134	78.2	N/A
6000	2722	1388	95.7	1405	96.9	N/A
7500	3402	1710	117.9	1735	119.6	N/A
9000	4082	2050	141.3	2027	139.8	N/A

PN 30279 PERFORMANCE DATA BY LAYER - 3/8" (9.5 mm) dia. rope
Drum	Line Load *			Line Speed 10 GPM		Line Speed 15 GPM		Drum Capacity
Layer	lbf	kgf	kN	ft/min	m/min	ft/min	m/min	ft	m
1	7500	3402	33.4	35.0	10.7	47.0	14.3	25	7.6
2	6400	2903	28.5	41.1	12.5	55.0	16.8	54	16.5
3	5585	2533	24.8	47.1	14.4	63.1	19.2	88	26.8
4	4953	2247	22.0	53.1	16.2	71.1	21.7	126	38.4
* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.

PN 30279 FIRST LAYER PERFORMANCE
Line Load		Pressure Drop at 10 GPM		Pressure Drop at 15 GPM		Duty Cycle
lbf	kgf	psi	BAR	psi	BAR	min/10min
0	0	250	17.2	400	27.6	N/A
1500	680	640	44.1	810	55.8	N/A
3000	1361	1070	73.8	1290	88.9	N/A
4500	2041	1530	105.5	1750	120.7	N/A
6000	2722	2000	137.9	2200	151.7	N/A
7500	3402	2600	179.3	(1)	(1)	N/A
9000	4082	(1)	(1)	(1)	(1)	N/A
Note: (1) Do Not Exceed 2600 psi motor pressure drop.
