Premier 6000 Winch DV6000S
Save 10%
Original price
$1,450
Original price
$1,450
-
Original price
$1,450
Original price
$1,450
Current price
$1,300
$1,300
-
$1,300
Current price
$1,300
✓ Fast Shipping + Order tracking
✓ Lowest Price Match Guarantee
✓ Free Extended Warranty
Order in the next 3 hours 2 minutes to get it between -
Features
- Heavy duty series wound motor gives high torque and fast line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance even under worst conditions.
- Patented automatic cone brake holds full load easily. The greater the load on the wire rope, the greater amount of brake force is applied by the mechanism.
- Rotating ring gear free spool designed to pull and turn for rapid wire rope payout.
- 2" rear receiver and quick connector kits mount directly to the vehicle frame without drilling.
- Fast line speed heavy duty series.
Specifications
| Line Pull | 2,722 kg |
| Motor 12V | 2,386 w |
| Motor 24V | 1,492 w |
| Gear Train | 3 stage planetary gears |
| Gear Ratio | 216 : 1 |
| Freespool | rotating ring gear |
| Brake | automatic, full load cone brake |
| Wire Rope Size | 7.14 mm x 24.4 m |
| Wire Rope Type | galvanized aircraft A7 x19 |
| Drum Size | 63.5 mm x 125.5 mm |
| Mounting Bolt Pattern | 152.4 mm x 114.3 mm |
Line Pull and Rope Capacity
| Layer of wire rope | Line Pull kg / lb | Total Rope on the Drum m/ft |
| 1st Layer | 2,722 / 6,000 | 3.6 / 11.8 |
| 2nd Layer | 2,264 / 4,991 | 7.8 / 25.6 |
| 3rd Layer | 1,938 / 4,273 | 12.8 / 42 |
| 4th Layer | 1,694 / 3,735 | 18.5 / 60.7 |
| 5th Layer | 1,505 / 3,318 | 24.4 / 80 |
Line Speed and Amp. Draw (1st layer of rope on the drum)
| Line Pull kg/lb | Line Speed mpm/fpm | Amp. Draw 12V | Amp. Draw 24V |
| No Load | 8.0 / 26.2 | 60 | 35 |
| 907 / 2,000 | 5.2 / 17 | 150 | 90 |
| 1,814 / 4,000 | 3.1 / 10.2 | 240 | 140 |
| 2,722 / 6,000 | 2.0 / 6.5 | 300 | 200 |

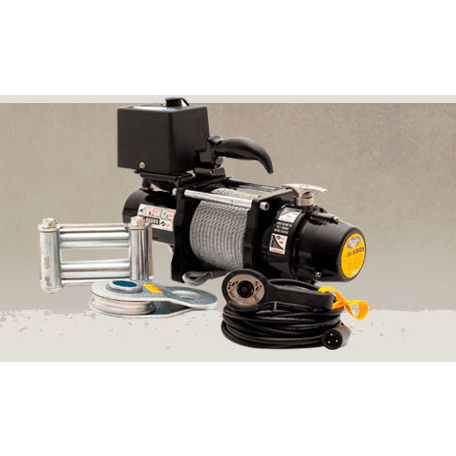

Standard Accessories
- Detachable solenoid pack
- Remote control
- Wire rope with hook
- Roller fairlead
- 1.8m (6') 4 gauge battery lead
- Handsaver strap
Optional Accessories
- Mounting channel
- Snatch block
- Winch accessory kit
Package
| Winch Weight | 17.7 kg |
| Gross Weight | 32 kg |
| Box Dimension | 495 × 196 × 340 mm |
Warning
Winches are not to be used for the lifting or moving of persons.
Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire ropes are not included under warranty.
