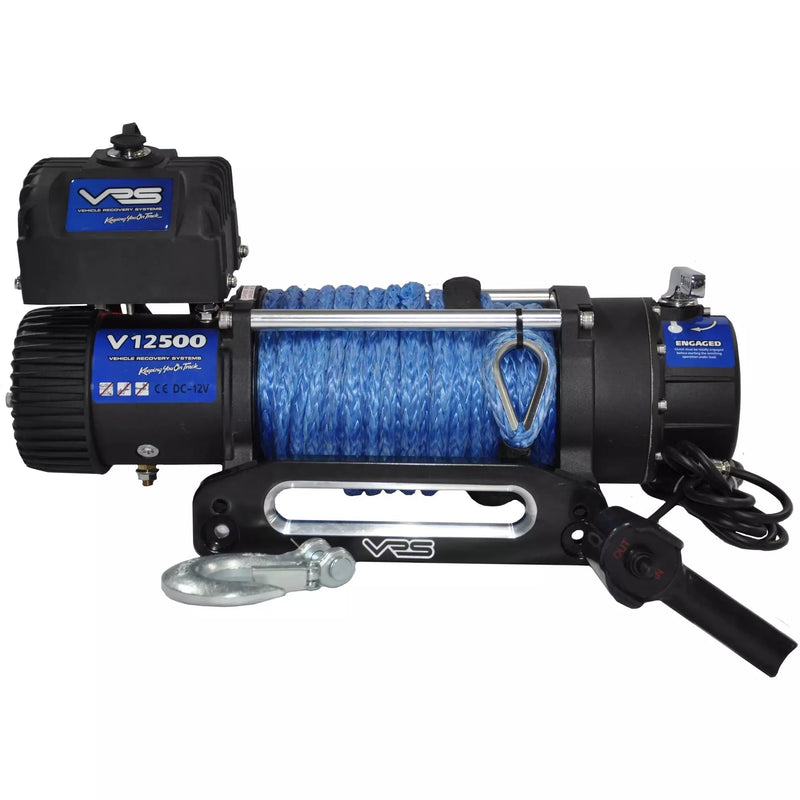

VRS V12500 winch with synthetic rope V12500S
ā Fast Shipping + Order tracking
ā Lowest Price Match Guarantee
ā Free Extended Warranty
Order in the next 3 hours 2 minutes to get it between -
FEATURES
When youāre out there in the thick of it, you need some serious machinery on your side. With an impressive 5670kgs of pulling power and fast line speed under load, the VRS 12500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.
SPECIFICATIONS
| Line Pull | 12,500lb /Ā 5,670kg |
| Motor 12V | Series Wound 5.3hp/3.9kw 12v DC |
| Gear Train | 3 stage planetary gears |
| Gear Ratio | 273 : 1 |
| Freespool | Sliding ring gear |
| Brake | Automatic, in the drum |
| Battery | Recommended 650 CCA minimum for winching |
| Battery Lead | 25mm, 72ā³ (1.83M) |
| Synthetic Rope Size | 11mm x 26m |
| Drum Size | 2.5ā³ x 9.0ā³ (64mm xĀ 224mm) |
| Mounting Bolt Pattern | 10ā³ x 4.5ā³ (254mm x 114.3mm) |
| Dimensions | 23ā³ x 6.6ā³x 8.4ā³ (552mm x 168mm x 214mm) |
Ā
LINE PULL AND ROPE CAPACITY
| Layer of wire rope | Line Pull kg / lb | Total Rope on the Drum m/ft |
|---|---|---|
| 1st Layer | 5,670 / 12,500 | 5.4Ā / 17.6 |
| 2nd Layer | 4,536 / 10,000 | 11.4 / 37 |
| 3rd Layer | 3,629/ 8,600 | 19.4 / 63 |
| 4th Layer | 3,402 / 7,500 | 26 / 85 |
Ā
LINE SPEED AND AMP. DRAW (1ST LAYER OF ROPE ON THE DRUM)
| Line Pull kg/lb | Line Speed mpm/fpm | Amp. Draw 12V |
| No Load | 10.8 / 35.4 | 80 |
| 1,814 / 4,000 | 2.8 / 9.19 | 180 |
| 2,722 / 6,000 | 2.3 / 7.55 | 210 |
| 3,629 / 8,000 | 2.1Ā / 6.89 | 250 |
| 4,536 / 10,000 | 1.9Ā / 6.23 | 290 |
| 5,670 / 12500 | 1.7 / 5.58 | 340 |
Ā
PACKAGE
| Winch Weight | 34Ā kg |
| Box Dimension | 620 x 220 x 400 mm |
Ā
STANDARD ACCESSORIES
Detachable Contactor Pack
Remote control
Synthetic Rope with Hook
Roller fairlead
1.83m (6ā²) 25mm battery lead
Handsaver strap
Ā
ITEM NUMBER
V12500S
WARNING
Winches are not to be used for the lifting or moving of persons.
Ā
LIMITED LIFETIME WARRANTY
Warrants the original purchaser that the mechanical components will be free of defects in material and workmanship for the lifetime of the winch and the electrical components will be free of defects in material and workmanship from a period of 1 year from the original date of purchase.
Ā
VRS LImited Lifetime Warranty
