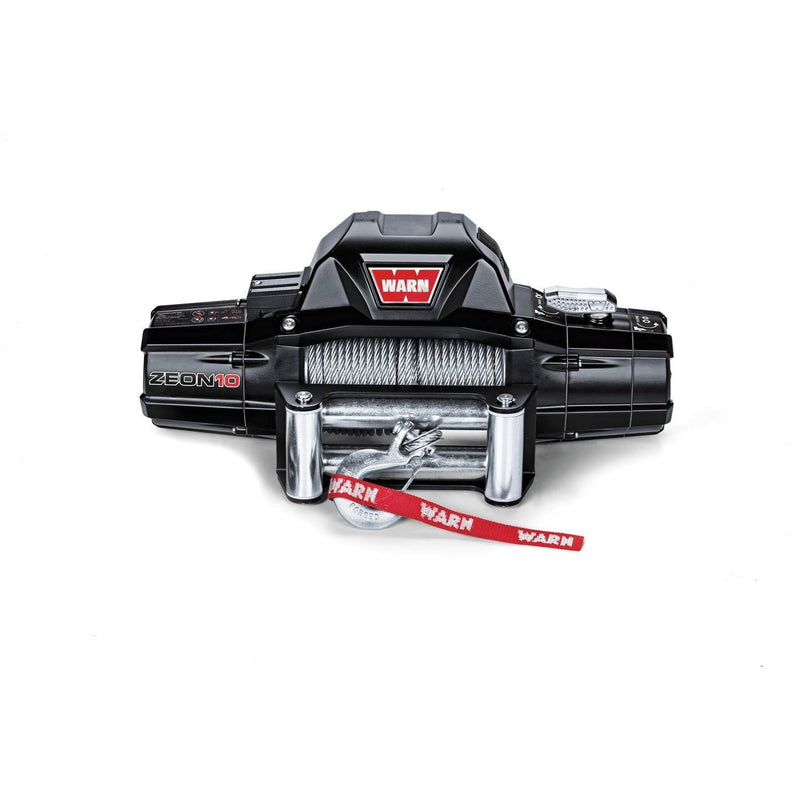

Warn Zeon 12v winch 24m wire rope, Zeon-10-89650

10,000 lbs. of cutting-edge pulling muscle

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you’ve got a workhorse unit you can trust for years to come.

10,000 lb. (4536 kg) single-line pulling capacity.
Includes 80′ of 3/8″ galvanized steel wire rope
Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power
Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

ZEON 10 SPECIFICATIONS

Part number: ZEON-10-89650 (12V)

Part number: ZEON-10-90665-24V (24V) * does not include wire rope

Rated line pull: 10,000 lbs. (4536 kg) single-line

Motor: series wound, 12V DC, 24V DC

Electrical controls: Contactor

Remote Control: Remote switch, 12′ (3.7m) lead

Geartrain: 3-stage planetary

Gear ratio: 216:1

Clutch (freespooling): Rotating ring gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)

Weight (kit shipping): 98 lbs. (44 kg)

Rope: 3/8″ x 80′ (9.52mm x 24.38m) steel

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72″ (1.83m)

Finish: Satin-black powder coat

12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)

Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	33 (10.27)	62 amps	1/10000 (4536)
2000 (910)	14.9 (4.5)	144 amps	2/8245 (3740)
4000 (1810)	11.2 (3.4)	215 amps	3/7014 (3181)
6000 (2720)	8.5 (2.6)	280 amps	4/6103 (2768)
8000 (3630)	6.5 (2.0)	353 amps
10000 (4536)	4.8 (1.5)	409 amps

24V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)

Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	28.5 (8.7)	35 amp	1/10000 (4536)
2000 (910)	15.3 (4.6)	75 amps	2/8245 (3740)
4000 (1810)	12.1 (3.7)	108 amps	3/7014 (3181)
6000 (2720)	10.1 (2.6)	140 amps	4/6103 (2768)
8000 (3630)	8.9 (2.7)	172 amps	5/5402 (2450)
10000 (4536)	7.7 (2.3)	205 amps

WINCH DIMENSIONS

Integrated configuration	24.25″ L x 7.15″ D x 10.52″ H (615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration	24.25″ L x 7.15″ D x 7.84″ H (615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern	10.0″ x 4.5″ (254mm x 114.3mm)
