• All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
• The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter.
• Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winchout, and freespool operations. No more engaging a manual clutch, with frozen fingers while standing in the mud.
• Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance–exceeding 400 hours of salt-spray testing.
• Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Extreme waterproofing meets rigorous IP68 standards—the highest rating in the WARN Truck/SUV winch lineup.
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
• Includes 80′ of 3/8″ Spydura Pro synthetic rope and aluminum hawse fairlead with powder-coat finish.
• Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urathanecoated 12-strand braid, heat treated under tension. A 20 ft. heat sleeve protects the rope on the layer nearest the drum.

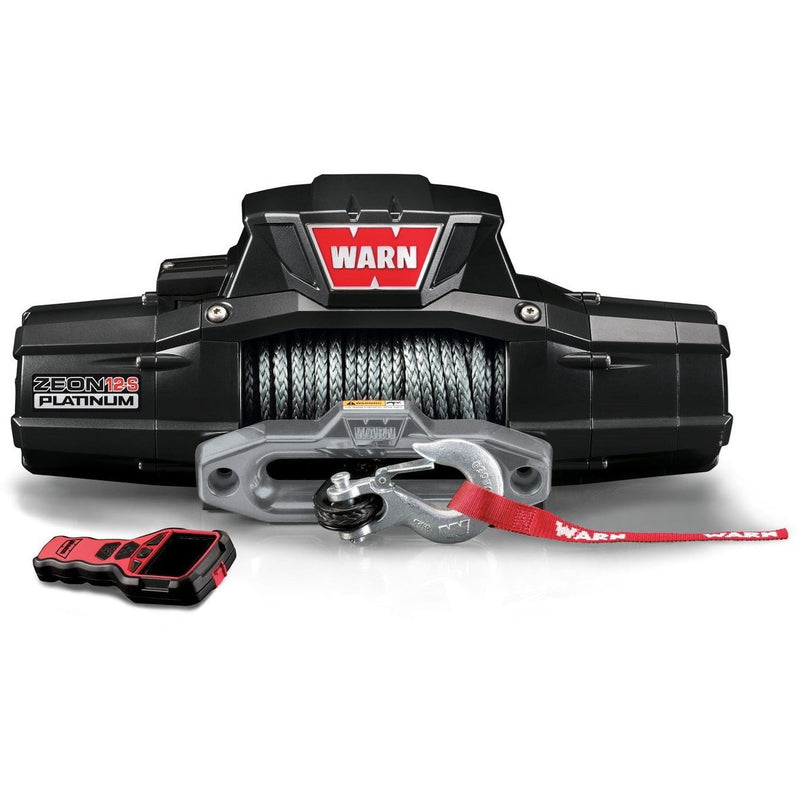

ZEON 12-S PLATINUM

The toughest, most technologically-advanced winch on the trail today.

Part number: ZEON-PL-12K-S-96035

Rated line pull: 12,000 lbs. (5443 kg) single-line

Motor:12V DC, series wound

Electrical controls: Contactor

Remote Control: Advanced Wireless

Geartrain: 3-stage planetary

Gear ratio: 162:1

Clutch (freespooling): Rotating ring gear

Brake: Automatic mechanical cone

Drum Diameter/Length: 3.15″/9.0″ (80mm/229mm)

Rope: 3/8″ x 80′ (9.52mm x 24.38m) Spydura Pro™ synthetic

Fairlead:  Aluminum hawse with powder-coat finish

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72″ (1.83m)

Finish: Satin-black powder coat

Warranty: Limited lifetime

12V DC PERFORMANCE SPECIFICATIONS (FIRST LAYER OF DRUM)

Warn Industries – Jeep, Truck & SUV Winches: ZEON 12-S

Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current
0	32.9 (10.02)	57 amps
2000 (910)	15.1 (4.6)	132 amps
4000 (1810)	9.9 (3.01)	200 amps
6000 (2720)	8.9 (2.71)	261 amps
8000 (3630)	7.8 (2.37)	321 amps
10000 (4536)	5.4 (1.64)	381 amps
12000 (5440)	4.5 (1.37)	446 amps

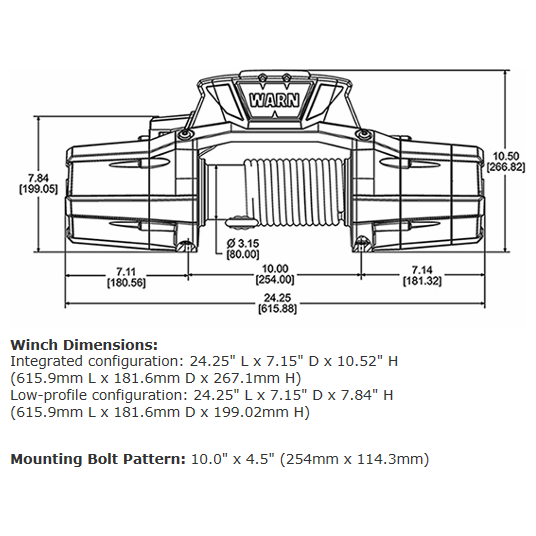

WINCH DIMENSIONS

Integrated configuration	24.25″ L x 7.15″ D x 10.52″ H (615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration	24.25″ L x 7.15″ D x 7.84″ H (615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern	10.0″ x 4.5″ (254mm x 114.3mm)
