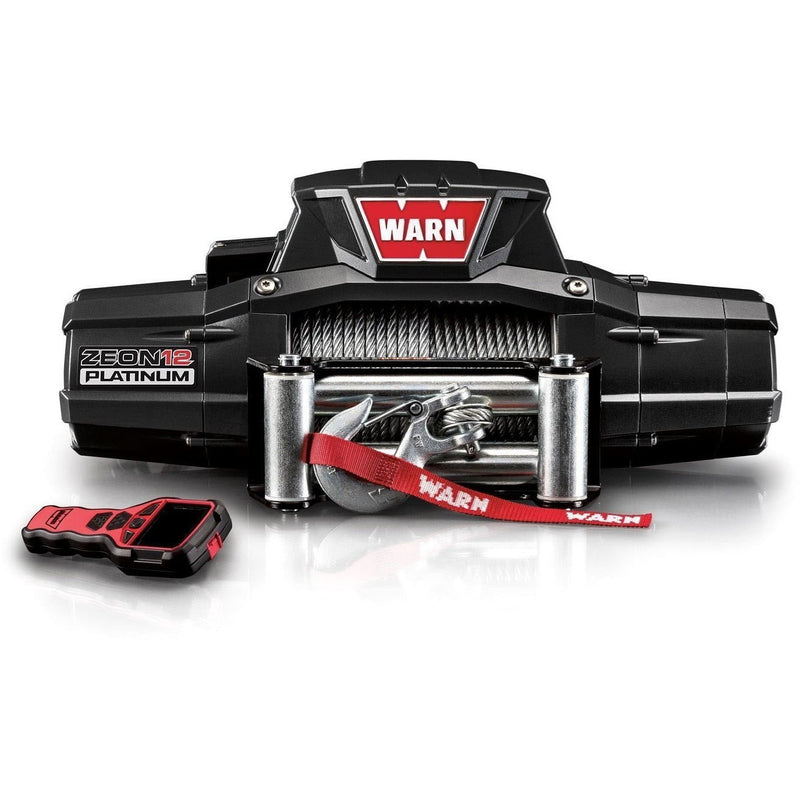

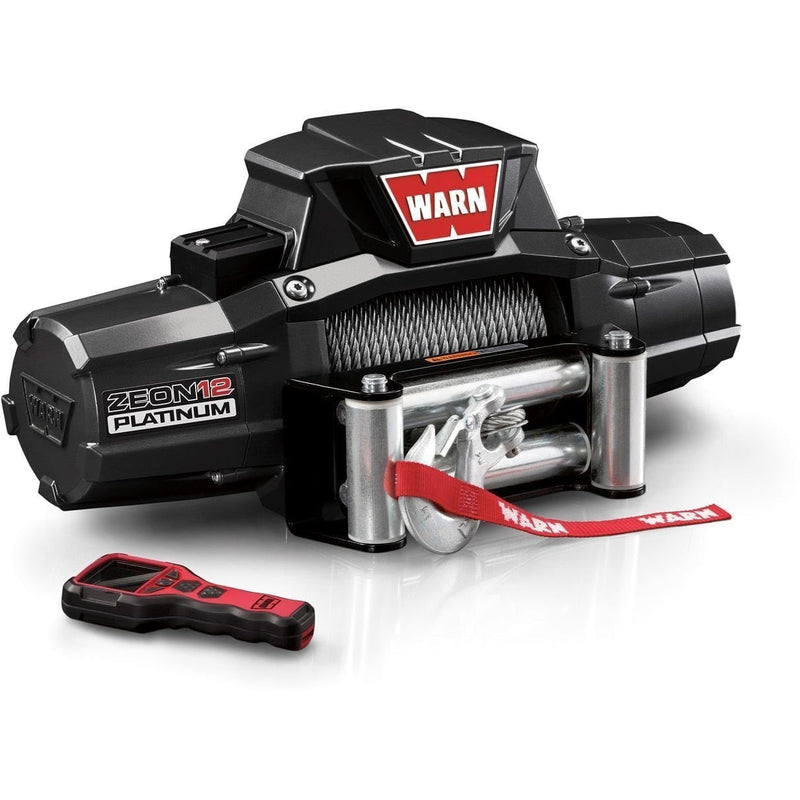

Warn zeon platinum 12v winch 24m wire rope, zeon-pl-12k-92820

The toughest, most technologically-advanced winch on the trail today.

Winching’s gold standard has just been raised. Introducing ZEON 12 Platinum, the new Advanced Technology, Ultimate Performance Winch. Featuring the Advanced Wireless Remote-the new command central control. With remote clutch, vehicle battery feedback, and even auxiliary controls for lights and more. Combine this with a new high-performance package and extreme waterproofing and you have the toughest, most technologically-advanced winch on the trail today.

• 12,000 lbs. (5440 kg) single-line pulling capacity
• Includes 80′ of 3/8″ (9.52mm x 24.38m) aircraft-grade wire rope and a roller fairlead
• The Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud
• The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter
• All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating
• Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance–exceeding 400 hours of salt-spray testing
• Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation
• Extreme waterproofing meets rigorous IP68 standards–the highest rating in the WARN Truck/SUV winch lineup
• Automatic mechanical cone brake offers excellent control while winching
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.

ZEON 12 PLATINUM SPECIFICATIONS

12V DC PERFORMANCE SPECIFICATIONS (FIRST LAYER OF DRUM)

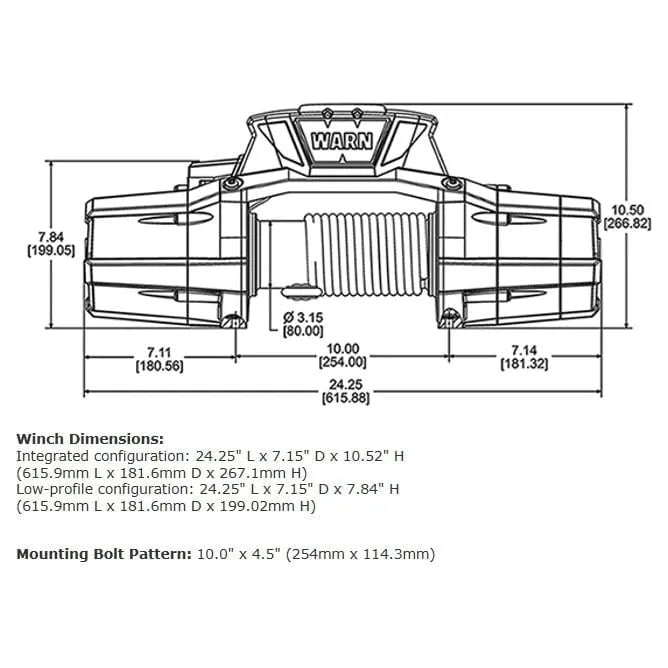

WINCH DIMENSIONS
