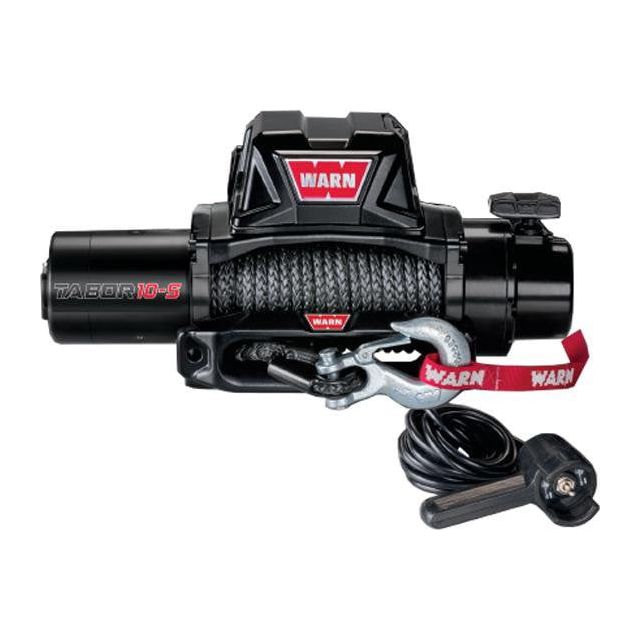

The WARN® Tabor 10-S offers enhanced styling, upgraded performance, and legendary WARN reliability that you can trust. The new convertible control pack looks great and allows upright or low-profile mounting configurations. A waterproof Albright® contactor provides the most reliable winch control available. The one-piece tie plate replaces multiple tie bars for increased strength, and a best-in-class cone brake holds the full-rated load. The 4536 kg (10,000 lbs.) capacity makes it perfect for 4×4’s, utes, trailers, towing and lights industrial applications.
- Waterproof Albright® contactor control for the ultimate in reliability
- One-piece tie plate replaces tie rods for added strength and rigidity
- Convertible control pack allows upright or low-profile winch mounting
- Powerful, efficient series-wound motor
- Best-in-class load-holding cone brake for superior control
- Designed, engineered, and field tested by WARN engineers in Clackamas, Oregon, USA
- Includes a hawse fairlead with 27.4m of 9.5mm (90′ x 3/8″) diameter synthetic rope
Specifications
| Part number: 10K-S-97010 |
| Rated line pull: 4536 kg (10000 lbs.) |
| Motor: 12V or 24V DC, series wound |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 3.7m (12′) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 261:1 |
| Clutch (freespooling): Sliding ring gear |
| Brake: Automatic direct drive cone |
| Drum diameter/Length: 6.7cm/23cm (2.625″/ 9.0″) |
| Shipping weight: 29.46 kg (64.81 lbs.) |
| Shipping weight bare winch: 24.31 kg (53.59 lbs.) |
| Net product: 26.7 kg (58.73 lbs.) |
| Net product weight, bare winch: 21.6 kg (47.5 lbs.) |
| Rope: 9.5mm x 27.4m (90′ x 3/8″) |
| Fairlead: Cast iron hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 Gauge, 1.83m (72″) |
| Finish: Powder coating over primer undercoating |
12V DC Performance Specifications (1st layer of drum)
| Line Pull Kg. (Lbs.) |
Line Speed M/min. (FT./min) |
Motor Current |
Pull by layer layer/Kg. (Lbs) |
| 0 | 7.6 (25) | 66 amps | 1/4536 (10000) |
| 910 (2000) | 3.9 (13.0) | 160 amps | 2/ 3597 (7931) |
| 1810 (4000) | 2.9 (9.6) | 247 amps | 3/ 2981 (6571) |
| 2720 (6000) | 2.1 (7.1) | 332 amps | 4/ 2545 (5610) |
| 3630 (8000) | 1.5 (5.0) | 417 amps | 5/ 2220 (4894) |
| 4536 (10000) | 0.7 (2.3) | 502 amps |
Winch Dimensions
| Dimensions | 528.2mm (W) x 160mm (D) x 249.1mm (H) |
|---|---|
| Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
