Warn 12v Self Recovery Winch 24m Synthetic Rope w/ wireless remote CE9500XDC

by Warn
Original price $3,489 - Original price $3,489
Original price $3,489
$3,999
$3,999 - $3,999
Current price $3,999

✓ Fast Shipping + Order tracking
✓ Lowest Price Match Guarantee
✓ Free Extended Warranty

Order in the next 3 hours 2 minutes to get it between -

Warn 12v self recovery winch 24m synth. Rope w/ wireless remote, ce9500xdc-88750



Fast, Powerful and Includes Synthetic Rope

A winch that will perform in the harshest environments.

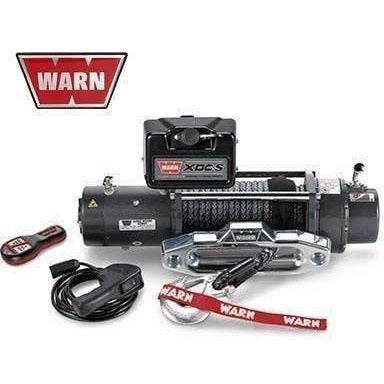

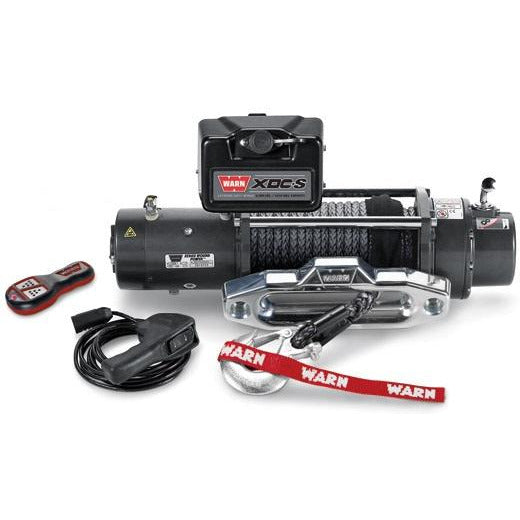

  • Comes with 80 ft. of 3/8″ (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12′ (3.7m) lead, hand-held wireless remote and polished aluminum hawse fairlead
  • Thermometric protection device to ensure long motor life by suspending winch operation if the motor’s temperature becomes elevated beyond its normal operating range
  • Series-wound winch motor is strong and reliable
  • Extreme-duty winch sealing. Enables superior water resistance
  • Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
  • 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
  • Exclusive brake design. Provides superior operator control when winching
  • Includes both corded and wireless winch controls
  • Remote-mount control box allows for various mounting options
  • High gloss, chip-resistant powder-coated finish. Provides superior corrosion resistance

The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing. This winch also comes with a hand-held wireless remote.



XDC-S SPECIFICATIONS

Part number: CE9500XDC-88750
Rated line pull: 9,500 lbs., (4310 kgs.) single-line
Motor: 12V Gen II, Series Wound
Electrical controls: Contactor
Remote Control: Remote switch, 12′ (3.7m) lead and
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
Weight: 68 lbs. (30.8 kg)
Synthetic Rope: 80′, 3/8″ diameter (24.38m, 9.5mm diam.)
Fairlead: Polished Aluminum Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72″ (1.83m)
Finish: Chromate with high-gloss dark-gray powder coat


12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 29 (8.8) 60 amps 1/9500 (4313)
2000 (910) 13.5 (4.1) 144 amps 2/8650 (4927)
4000 (1810) 10 (3.1) 197 amps 3/7920 (3595)
6000 (2720) 8 (2.4) 250 amps 4/7400 (3359)
8000 (3630) 6.5 (1.9) 315 amps 5/6940 (3150)
9500 (4310) 5.7 (1.7) 358 amps
WINCH DIMENSIONS



Dimensions

21.8″ L. x 6.3″ D. x 7.6″ H.
(555mm L. x 160mm D. x 193mm H.)
Mounting Bolt Pattern 10.0″ x 4.5″
(254mm x 114.3mm)
