Winchworld Warn 12V Self Recovery Winch 27m Synthetic Rope
Winchworld Warn 12V Self Recovery Winch 27m Synthetic Rope
Winchworld Warn 12V Self Recovery Winch 27m Synthetic Rope
Winchworld Warn 12V Self Recovery Winch 27m Synthetic Rope

Warn 12V Self Recovery Winch 27m Synthetic Rope

by Winchworld
Sold out
$1,750
$1,750 - $1,750
$1,750
$1,499
$1,499 - $1,499
$1,499
Dispatch timing may vary by product and supplier.
2,300+ customers served
  • ✔ Free shipping over $100
  • ✔ Australian-based support
  • ✔ Secure checkout
  • ✔ 30-day returns

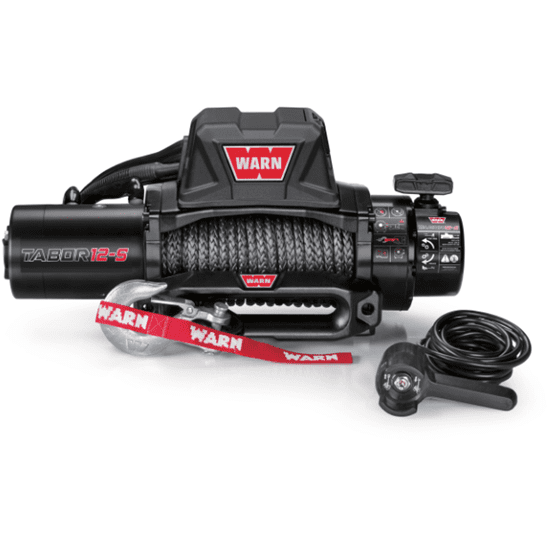

The new WARN® Tabor 12-S offers enhanced styling, upgraded performance, and legendary WARN reliability that you can trust. The new convertible control pack looks great and allows upright or low-profile mounting configurations. A waterproof Albright® contactor provides the most reliable winch control available. The one-piece tie plate replaces multiple tie bars for increased strength, and a best-in-class cone brake holds the full-rated load. And with a 5443 kg (12,000 lbs.) capacity, the 12-S is great for 4×4’s, trucks, commercial vehicles, trailers, and light industrial applications.

  • Waterproof Albright® contactor control for the ultimate in reliability
  • One-piece tie plate replaces tie rods for added strength and rigidity

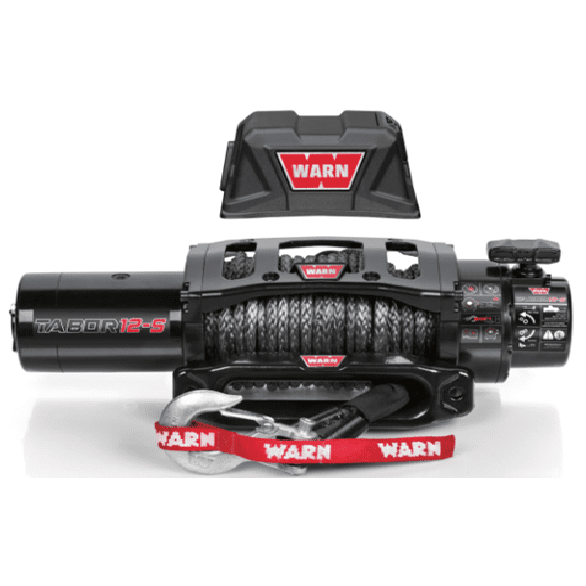

  • Convertible control pack allows upright or low-profile winch mounting
  • Powerful, efficient series-wound motor
  • Best-in-class load-holding cone brake for superior control
  • Designed, engineered, and field tested by WARN engineers in Clackamas, Oregon, USA
  • Includes a hawse fairlead with 27.4m of 9.5mm (90′ x 3/8″) diameter synthetic rope

Specifications

Part number: 12K-s-97055
Rated line pull: 5443 kg (12000 lbs.)
Motor: 12V series wound
Electrical controls: Contactor
Remote Control: Remote switch, 3.7m (12′) lead
Geartrain: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic direct drive cone
Drum diameter/Length: 6.7cm/23cm (2.625″/ 9.0″)
Shipping weight synthetic:  30.96 kg (68.12 lbs.)
Shipping weight, bare winch:  25.85 kg (56.98 lbs.)
Net product weight synthetic: 28.2 kg (62.03 lbs.)
Net product weight, bare winch:  23.1 kg (50.9 lbs.)
Rope: 9.5mm x 27.4m (90′ x 3/8″)
Fairlead: Cast iron hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 Gauge, 1.83m (72″)
Finish: Powder coating over primer undercoating

12V DC Performance Specifications (first layer of drum)

Line Pull
Kg. (Lbs.)		 Line Speed
M/min. (FT./min)		 Motor
Current		 Pull by layer
layer/Kg. (Lbs)
0 8.6 (28.4) 65 amps 1/5443 (12000)
910 (2000) 3.8 (12.6) 144 amps 2/4317 (9517)
1810 (4000) 2.8 (9.5) 215 amps 3/3577 (7886)
2720 (6000) 2.2 (7.5) 281 amps 4/3054 (6732)
3630 (8000) 1.7 (5.8) 349 amps 5/2663 (5872)
4540 (10000) 1.3 (4.4) 415 amps
5440 (12000) 1.0 (3.6) 457 amps

tabor12

Winch Dimensions: 554.5mm L x 160mm D x 249.1mm H (21.89″ L x 6.3″ D x 9.8″ H)
Mounting Bolt Pattern: 254mm x 114.3mm (10.0″ x 4.5″)
