| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 38 (11.58) | 56 amps | 1/9000 (4082) |
| 2000 (910) | 15 (6.8) | 161 amps | 2/8190 (3715) |
| 4000 (1810) | 10.3 (3.14) | 252 amps | 3/7500 (3402) |
| 6000 (2720) | 7.5 (2.29) | 332 amps | 4/7010 (3180) |
| 8000 (3630) | 5.1 (1.55) | 423 amps | |
| 9000 (4080) | 3.9 (1.19) | 478 amps |
Warn 12v Self Recovery Winch 30m wire rope
by Warn
Original price
$3,599
-
Original price
$3,599
Original price
$3,599
$3,599
-
$3,599
Current price
$3,599
Trusted by 2,000+ Aussie 4x4 enthusiasts
- ✔ Fast dispatch — same/next business day (tracked & insured)
- ✔ Aussie owned & operated — gear for real conditions
- ✔ Expert support — before & after your purchase
- ✔ Authorised WARN dealer — genuine stock, full warranty
- ✔ Price match guarantee — we’ll beat any competitor

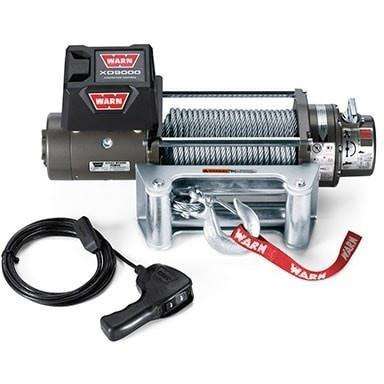

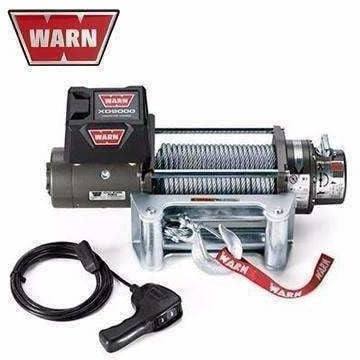

Warn 12v self recovery winch 30m wire rope, cexd9000-88500
Long time best selling winch
Long-time best seller. A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100′ of 5/16″ wire rope. Backed by the Warn Limited Lifetime Warranty.
- Low-profile design and separate control box allows for a wide range of mounting options
- Exclusive brake design provides superior control while winching
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Chip-resistant, powder-coated finish
- Remote control with 12′ (3.7m) lead.
- Durable 5/16″ (8mm) diameter galvanized steel wire rope.
XD9000 SPECIFICATIONS
| Part Number: CEXD9000-88500 |
| Winch model: XD9000 |
| Rated line pull: 9,000 lbs., (4080 kgs.) single-line |
| Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12′ (3.7m) lead |
| Gear Train: 3-Stage Planetary |
| Gear ratio: 156:1 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm) |
| Weight: 78 lbs. (35kgs.) |
| Wire rope: 100′, 5/16″ dia. (30m, 8mm) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72″ (1.83m) |
| Finish: Argent gray powder coat |
12V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)
WINCH DIMENSIONS
| Dimensions | 21.8″ L. x 6.3″ D. x 7.6″ H. (555mm L. x 160mm D. x 193mm H.) |
|---|---|
| Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
