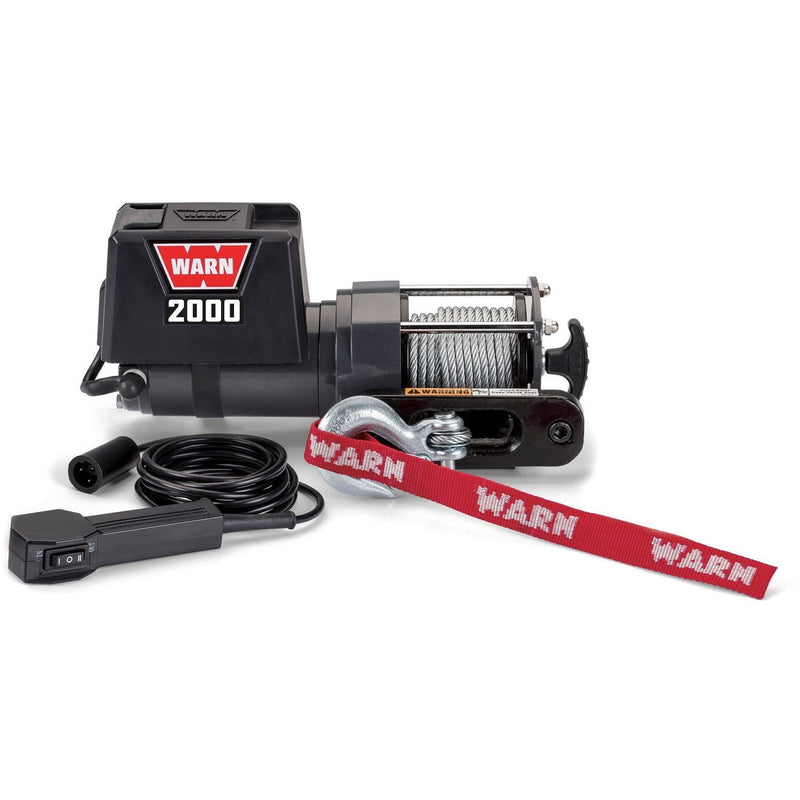

WARN 12V Utility Winch – DC2000-92000
Compact and Efficient for Smaller Jobs
The WARN 2000 DC Utility Winch is the ideal solution for light-duty recovery and material moving. Despite its compact size, this winch packs full-sized features, making it perfect for use in tight spaces, such as trailers or hitch mounts. With a 2,000 lb. (907 kg) capacity, this winch is designed to handle lighter loads with impressive power and efficiency.
Key Features:
-
2,000 lb. (907 kg) Capacity: Great for small-to-medium recovery tasks or moving lighter loads.
-
12-Volt Power: Ideal for portable use, especially on trailers or hitch-mounted applications.
-
Powerful Motor: Features a strong 1.6 horsepower permanent magnet DC motor, delivering reliable power and impressive duty cycle.
-
Durable Geartrain: Equipped with a differential planetary geartrain and a 153:1 gear ratio, ensuring smooth, controlled operation.
-
Dynamic Braking: Provides great control and holding power while winching.
-
Remote Control: Comes with a 12 ft (3.7m) corded remote for convenience and ease of operation.
-
Ergonomic Clutch Lever: Multi-directional, allowing for easy control during operation.
-
Hawse Fairlead: For smooth, tangle-free rope operation.
Specifications:
-
Part Number: 92000
-
Rated Line Pull: 2,000 lbs. (907 kg)
-
Motor: 1.6 HP Permanent Magnet
-
Power Supply: 12V DC
-
Gear Train: Split Ring Gear, 153:1 Gear Ratio
-
Clutch: Knob, pull and turn
-
Brake: Self-locking geartrain (rated load holding)
-
Wire Rope: 3/16" x 35' (10.7m of 4.7mm) with hook and clasp
-
Fairlead: Hawse
-
Drum Diameter: 1-1/4" (3.18 cm)
-
Weight: 18 lbs. (8.2 kg)
-
Warranty: 1-year limited warranty

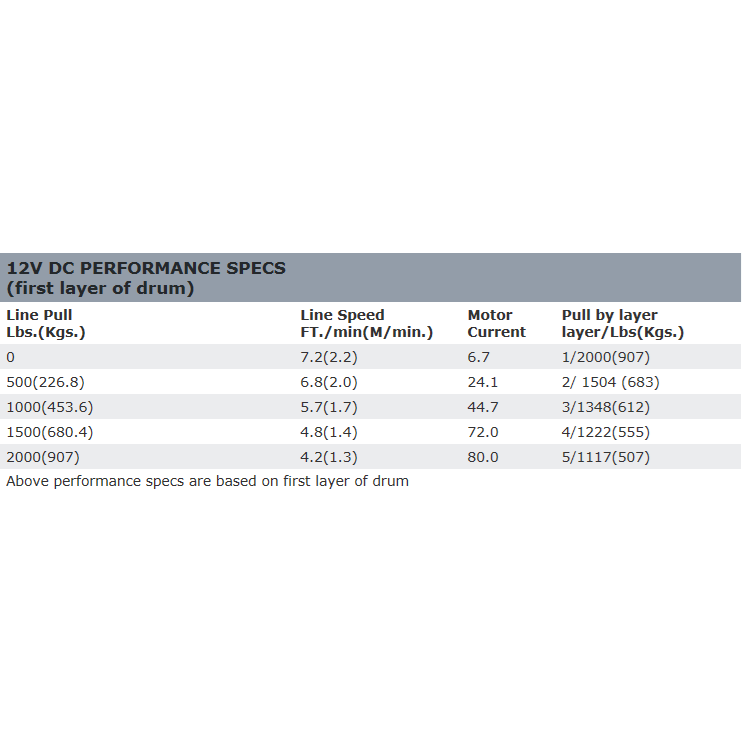

Performance (12V DC Specifications on 1st Layer of Drum):
| Line Pull (lbs./kg) | Line Speed (ft/min/m/min) | Motor Current (amps) | Pull by Layer (lbs./kg) |
|---|---|---|---|
| 0 (0 kg) | 7.2 ft (2.2 m) | 6.7 amps | 1 / 2000 lbs (907 kg) |
| 500 (226.8 kg) | 6.8 ft (2.0 m) | 24.1 amps | 2 / 1504 lbs (683 kg) |
| 1000 (453.6 kg) | 5.7 ft (1.7 m) | 44.7 amps | 3 / 1348 lbs (612 kg) |
| 1500 (680.4 kg) | 4.8 ft (1.4 m) | 72.0 amps | 4 / 1222 lbs (555 kg) |
| 2000 (907 kg) | 4.2 ft (1.3 m) | 80.0 amps | 5 / 1117 lbs (507 kg) |
Why Choose the WARN 2000 DC Utility Winch?
-
Compact Design: Easily fits in tight spaces like trailers or hitch-mounted systems.
-
Affordable: A cost-effective solution for light-duty recovery and material handling.
-
Portable and Versatile: Powered by 12V DC, it can be used almost anywhere for various small-to-medium tasks.
-
Reliable Performance: With a powerful motor and durable geartrain, this winch provides smooth, controlled operation every time.
-
Easy Operation: The remote control and ergonomic clutch lever make it user-friendly for all types of users.
The WARN 2000 DC Utility Winch offers an excellent combination of portability, power, and efficiency, making it an ideal choice for those looking for a compact winch for lighter, everyday pulling tasks.
