Warn 12v 4000Lbs/907kg Utility Winch 13.0m wire rope - DC4000-94000

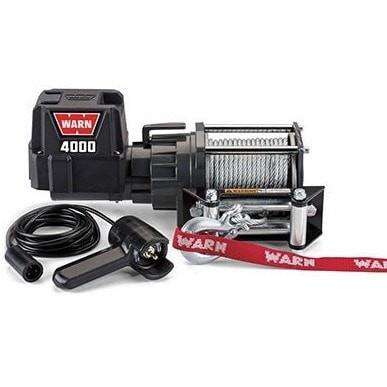

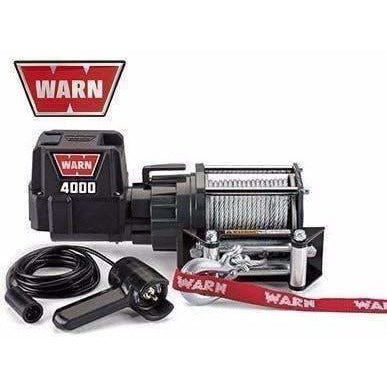

WARN 12V Utility Winch – DC4000-94000
Powerful and Efficient for Heavy Loads
The WARN 4000 DC Utility Winch is a great solution for those needing a compact, powerful winch capable of handling heavier loads. With a 4,000 lb. (1814 kg) pulling capacity, this winch is perfect for trailers, work sites, or other heavy-duty applications. It's designed to move large objects efficiently and with ease, while its compact size allows for versatility in mounting.
Key Features:
-
4,000 lb. (1814 kg) Pulling Capacity: Can move a wide variety of heavy objects, making it suitable for larger jobs.
-
12-Volt Power: Offers portability for use in trailers, hitch mounts, or remote job sites.
-
Powerful Motor: Features a 1.9 horsepower permanent magnet DC motor, ensuring a strong, reliable performance with an excellent duty cycle.
-
Durable Gear Train: Equipped with a 3-stage planetary geartrain for smooth, consistent operation.
-
Dynamic & Mechanical Braking: Provides excellent control and holding power, enhancing safety and reliability.
-
Convenient Clutch Lever: Multi-directional for ease of use when engaging and disengaging the winch.
-
Roller Fairlead: Helps guide the wire rope smoothly, preventing tangles and reducing wear.
-
Remote Control: Includes a 12 ft (3.7m) corded remote, allowing for easy operation from a distance.
Specifications:
-
Part Number: DC4000-94000
-
Rated Line Pull: 4,000 lbs. (1814 kg)
-
Motor: Permanent Magnet, 1.9 HP
-
Power Supply: 12V DC
-
Gear Train: 3-stage planetary
-
Clutch: Multi-directional lever
-
Brake: Dynamic and mechanical braking
-
Wire Rope: 7/32" x 43' (13m x 6mm)
-
Fairlead: Roller
-
Drum Diameter: 2.375" (6.03 cm)
-
Gear Ratio: 176:1
-
Electrical Leads: 6' (1.8m) x 6 gauge cable
-
Weight: Not specified
-
Warranty: 1-year limited warranty
Performance (12V DC Specifications on 1st Layer of Drum):
| Line Pull (lbs./kg) | Line Speed (ft/min/m/min) | Motor Current (amps) | Pull by Layer (lbs./kg) |
|---|---|---|---|
| 0 (0 kg) | 7.2 ft (2.2 m) | 6.7 amps | 1 / 4000 lbs (1814 kg) |
| 500 (226.8 kg) | 6.8 ft (2.0 m) | 24.1 amps | 2 / 3410 lbs (1550 kg) |
| 1000 (453.6 kg) | 5.7 ft (1.7 m) | 44.7 amps | 3 / 3170 lbs (1440 kg) |
| 2000 (907.2 kg) | 10.9 ft (3.3 m) | 180 amps | 4 / 2950 lbs (1340 kg) |
| 3000 (1361 kg) | 8.9 ft (2.7 m) | 210 amps | 5 / 2500 lbs (1134 kg) |
| 4000 (1814 kg) | 6.9 ft (2.1 m) | 240 amps | 6 / 2150 lbs (975 kg) |
Why Choose the WARN 4000 DC Utility Winch?
-
Powerful Performance: With a 4,000 lb. capacity, this winch is perfect for medium-duty recovery and material handling tasks.
-
Portable: The 12V power supply makes it easy to move and use wherever you need it, whether on trailers or remote work sites.
-
Durable: Designed with a 3-stage planetary geartrain and both dynamic and mechanical braking, this winch offers reliable performance and control.
-
Convenient Operation: The included remote control, along with the easy-lift clutch lever, makes operation simple and efficient.
The WARN 4000 DC Utility Winch is a great choice for handling heavy loads in a variety of settings. Whether you're working on a trailer, job site, or remote location, this winch provides the power and reliability you need.
