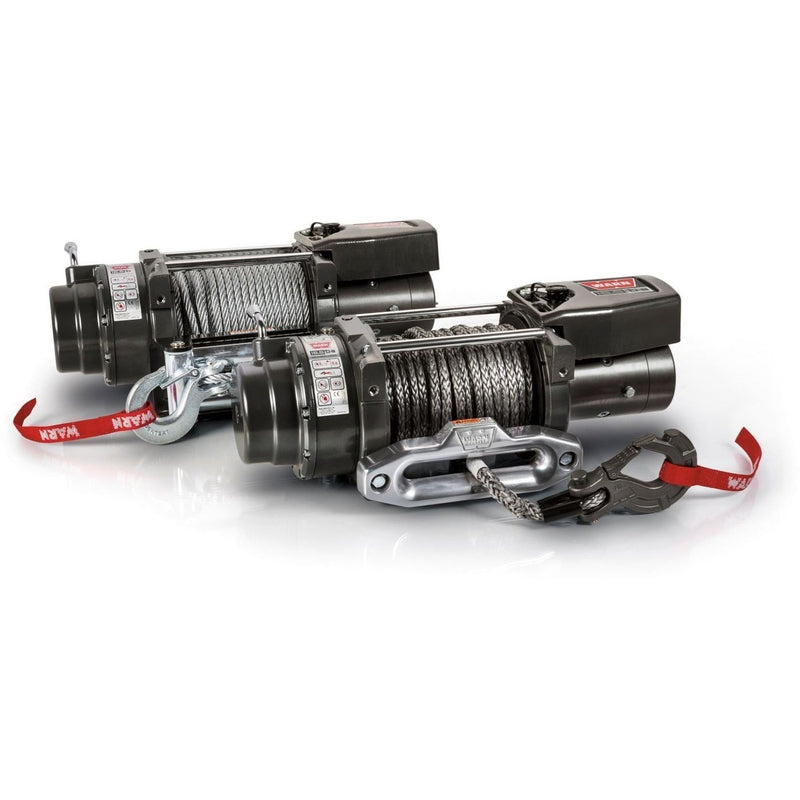

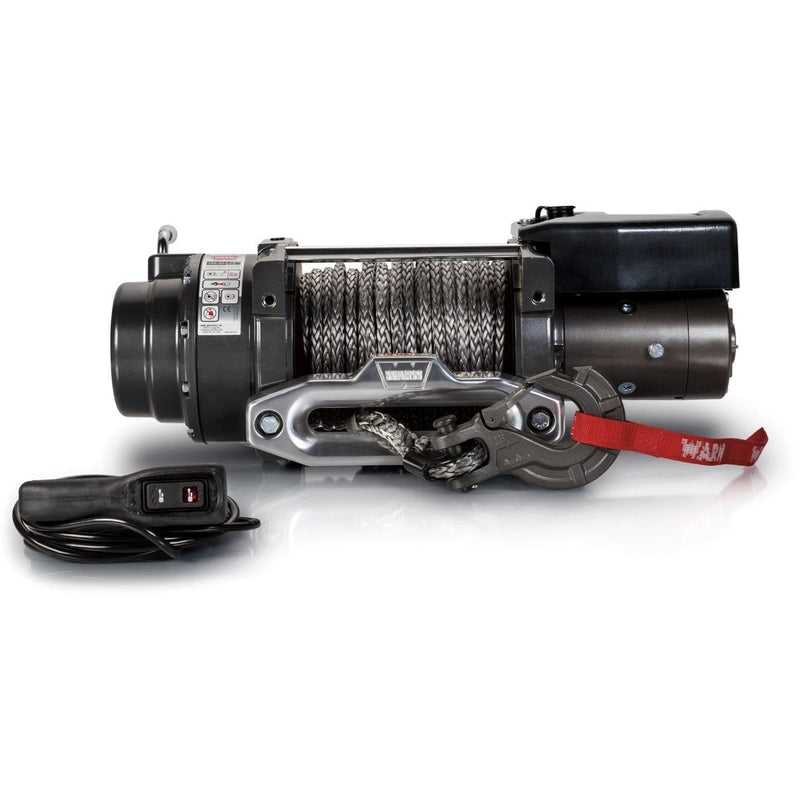

Warn 16.5ti-S 12V Electric Winch – 16,500 lb Capacity with 80′ Spydura® Pro Synthetic Rope (16500TI-S-97740)
Unmatched Strength & Performance for Heavy-Duty Recovery
The Warn 16.5ti-S 12V winch is engineered to tackle the toughest recovery jobs. Boasting an impressive 16,500 lbs. pulling capacity, it is the most powerful truck winch offered by Warn. Ideal for heavy-duty vehicles both on and off-road, this winch features the high-performance Spydura® Pro synthetic rope and cutting-edge thermometric technology, ensuring you can handle the heaviest pulls with ease and confidence.
Key Features:
-
16,500 lb. Pulling Capacity: Capable of pulling massive loads, this winch is perfect for large trucks, SUVs, and other heavy-duty vehicles.
-
80' of Spydura® Pro Synthetic Rope: Lightweight and easy to handle, this 3/8" synthetic rope is heat-treated for maximum tensile strength, and the temperature-resistant sleeve on the first layer offers superior heat protection.
-
Thermometric Indicator LED: Provides real-time feedback on motor temperature, helping operators monitor performance and prevent overheating during the recovery process.
-
EPIC Hook: Includes a 18,000 lb. capacity EPIC hook for secure attachment and superior durability.
-
Large-Frame Architecture: Engineered for high performance, the large-frame design allows for a feet-forward mount, optimizing winch performance.
-
Reliable Electronics: With contactor control, this winch guarantees precise and dependable operation, even under heavy load.
-
Series-Wound Motor: Delivers powerful, efficient performance to ensure fast line speed and reliable pulls.
-
3-Stage Planetary Geartrain: Ensures smooth and efficient operation, minimizing friction and maximizing longevity.
-
Best-in-Class Cone Brake: Provides outstanding control, especially when under heavy load, ensuring that your vehicle stays in place during recovery.
Specifications:
-
Part Number: 16500TI-S-97740
-
Rated Line Pull: 16,500 lbs (7484 kg) single-line
-
Motor: 12V 4.6 hp, Gen II, Series Wound
-
Electrical Control: Solenoid Control Pack
-
Remote Control: Wired remote switch with LED indicator, 12 ft (3.7m) lead
-
Geartrain: 3-stage planetary
-
Gear Ratio: 315:1
-
Clutch (Freespooling): Rotating ring gear
-
Brake: Automatic mechanical cone brake
-
Synthetic Rope: 9.5mm x 24.3m (3/8" x 80')
-
Fairlead: Aluminum hawse fairlead
-
Recommended Battery: 650 CCA minimum
-
Battery Leads: 2 gauge, 72 in. (1.83m)
-
Finish: Ardent gray powder coat for superior corrosion resistance
-
Drum Diameter/Length: 3.5 in / 8.2 in (9cm / 21cm)
-
Weight: 104 lbs. (47 kgs.)
-
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
12V DC Performance Specifications (1st Layer of Drum):
| Line Pull (lbs./kg.) | Line Speed (ft/min / m/min) | Motor Current (amps) |
|---|---|---|
| 0 (0) | 23.6 ft/min (7.20 m/min) | 68 amps |
| 2000 (907) | 12.07 ft/min (3.68 m/min) | 138 amps |
| 4000 (1814) | 9.22 ft/min (2.81 m/min) | 189 amps |
| 6000 (2721) | 7.37 ft/min (2.25 m/min) | 240 amps |
| 8000 (3628) | 6.08 ft/min (1.85 m/min) | 291 amps |
| 10000 (4536) | 5.12 ft/min (1.56 m/min) | 342 amps |
| 12000 (5443) | 4.40 ft/min (1.34 m/min) | 393 amps |
| 14000 (6350) | 3.86 ft/min (1.18 m/min) | 444 amps |
| 16000 (7257) | 3.38 ft/min (1.03 m/min) | 494 amps |
| 16500 (7484) | 3.24 ft/min (0.99 m/min) | 507 amps |
Why Choose the Warn 16.5ti-S 12V Winch?
-
Heavy-Duty Performance: With a 16,500 lb pulling capacity, this winch is built to handle the heaviest recovery tasks with ease.
-
Lightweight, Durable Synthetic Rope: The Spydura® Pro synthetic rope offers superior strength, handling, and heat protection, reducing weight while providing ultimate reliability.
-
Real-Time Temperature Feedback: The thermometric LED indicator keeps you informed on motor health, helping prevent overheating.
-
Long-Lasting Durability: Designed with a robust construction, including superior sealing and a powder-coated finish, the Warn 16.5ti-S ensures long-lasting, reliable performance in the toughest conditions.
-
Optimal Control and Safety: The best-in-class brake and smooth 3-stage planetary geartrain ensure superior control while winching, making it easy to handle even the most challenging pulls.
Perfect For:
-
Off-road trucks and large SUVs
-
Vehicle recovery in tough terrains
-
Heavy-duty operations such as lifting or pulling large, cumbersome objects
Get the Warn 16.5ti-S 12V Winch and experience the power and precision you need for even the toughest recovery challenges. Whether you're tackling off-road trails or handling massive recovery jobs, this winch delivers unrivaled performance. With 16,500 lbs of pulling power, 80' of Spydura® Pro rope, and advanced thermometric technology, it's built to last and built to perform under pressure.
