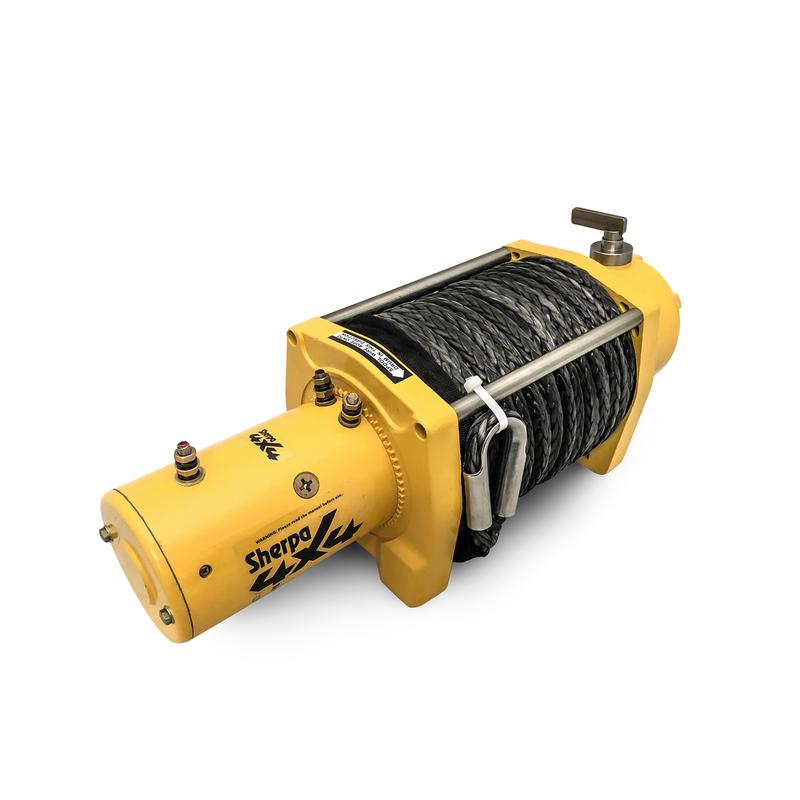

Sherpa 4x4 Stallion 25,000 lb Heavy-Duty Electric Winch

Why Choose the Sherpa Stallion 25,000 lb?

• Massive 25,000 lb (11,363 kg) Rated Pull: Perfect for vehicles 5,000-12,500 kg including LandCruiser 300, RAM 2500/3500, F-250/F-350, heavy utes with campers
• Exceeds Rated Capacity: Actual tested performance over 30,000 lbs - built with safety margin
• Dual Voltage Options: Available in 12V or 24V configurations for different vehicle systems
• 8.9 HP Motor: Series-wound motor delivers consistent power under heavy loads
• 366:1 Planetary Gearbox: Extreme gear reduction for maximum pulling power

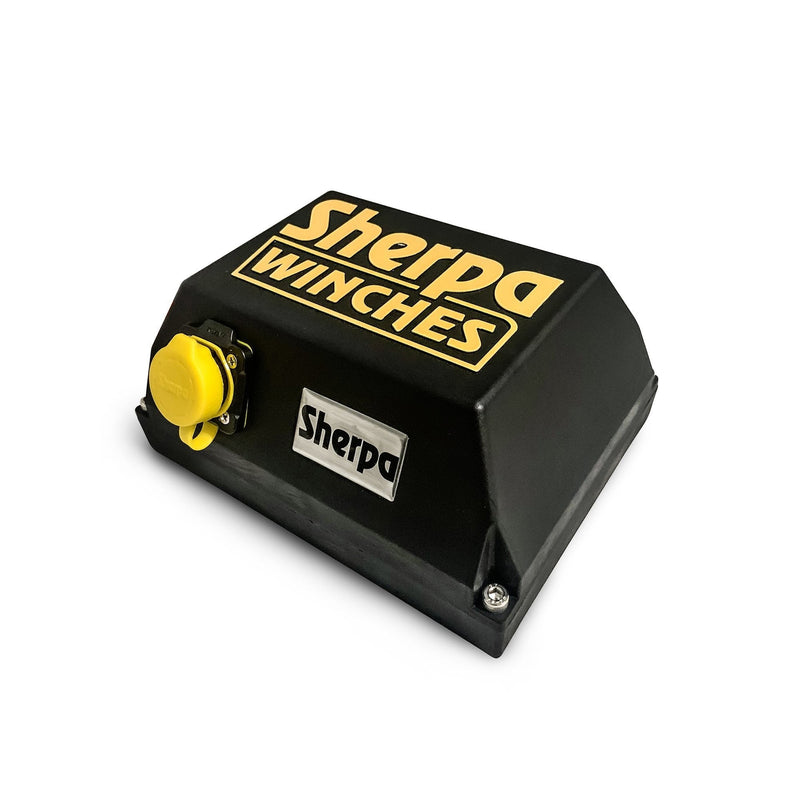

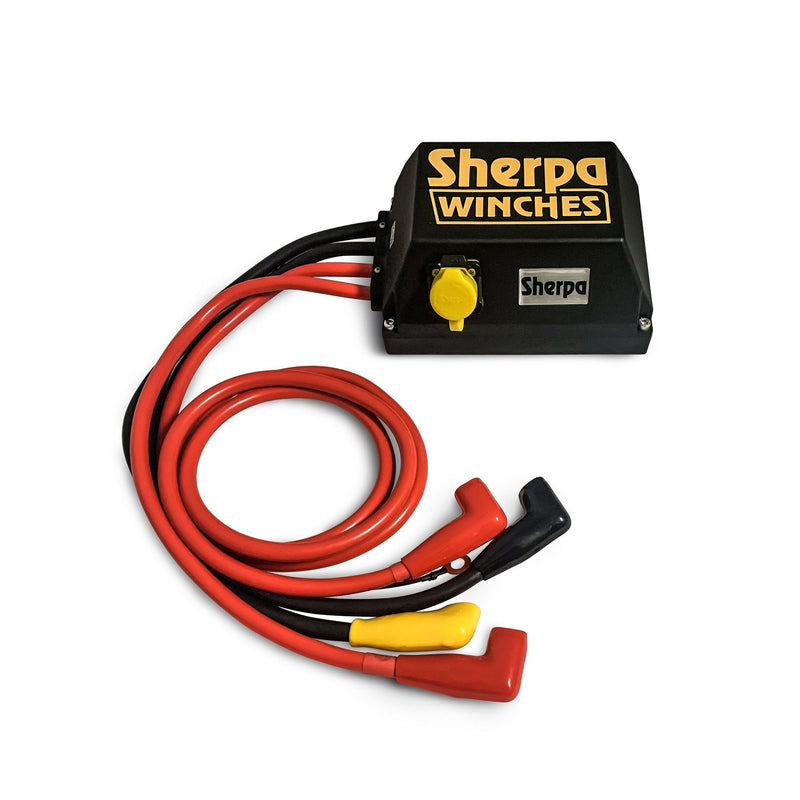

• Dual Albright Solenoids: Heavy-duty international-grade contactors for reliability
• 30m Premium Line: Choose 12mm Dyneema synthetic (31,000 lb MBS) or 12mm steel cable (30,000 lb MBS)
• 5-Year Warranty: Backed by Sherpa 4x4's comprehensive Australian warranty

Perfect For These Heavy-Duty Applications

Ideal for vehicles and equipment weighing 5,000-12,500 kg:

• ✓ Toyota LandCruiser 300 Series (especially with heavy modifications)
• ✓ RAM 2500, 3500, TRX
• ✓ Ford F-250, F-350 Super Duty
• ✓ Chevrolet Silverado 2500HD, 3500HD
• ✓ Heavy-duty utes with slide-on campers or trailers
• ✓ Commercial recovery vehicles and tow trucks
• ✓ Mining and industrial equipment
• ✓ Forestry and agricultural machinery
• ✓ Military and emergency service vehicles

⚠️ IMPORTANT: This is a heavy-duty winch designed for vehicles over 5,000 kg. For lighter 4WDs (under 3,500 kg), consider our 12,000 lb or 17,000 lb models for better value.

Complete Technical Specifications

12V Configuration Performance Data

24V Configuration Performance Data

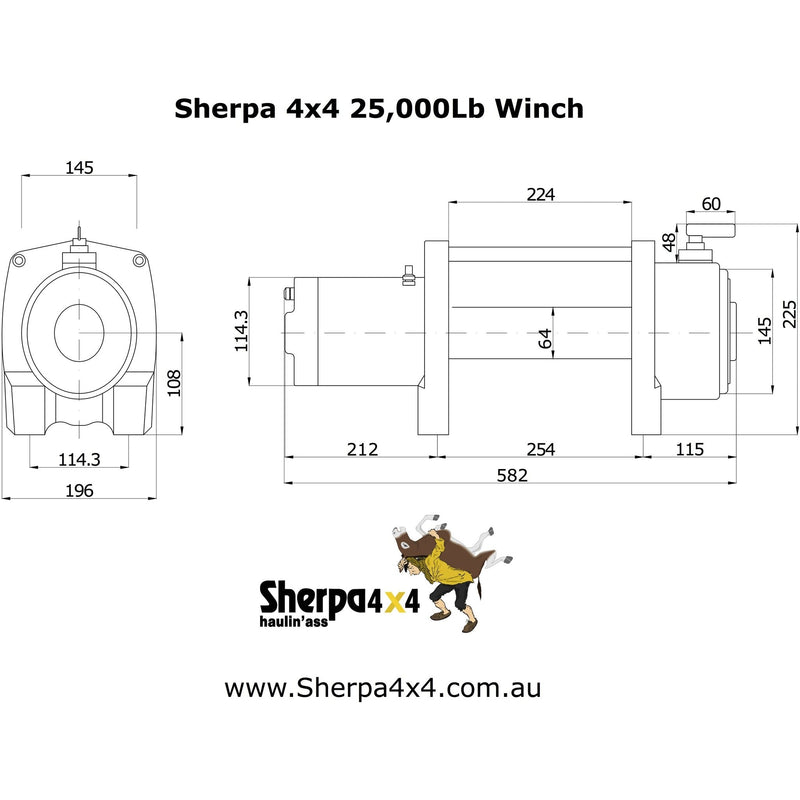

General Specifications

12V vs 24V - Which Should You Choose?

Choose 12V if:

• Your vehicle has a standard 12V electrical system (most 4WDs and utes)
• You have a single or dual 12V battery setup
• You want easier installation with standard automotive wiring

Choose 24V if:

• Your vehicle has a 24V system (some trucks, military vehicles, heavy equipment)
• You want lower current draw (half the amps of 12V for same power)
• You're running long power cable distances (less voltage drop)
• You have dual 12V batteries that can be wired in series

Note: Both configurations deliver identical pulling power and line speed. The 24V version draws half the current, which can be beneficial for electrical system efficiency.

Steel Cable vs Synthetic Rope - Which Line Type?

12mm Steel Cable (30,000 lb MBS):

• ✓ Traditional choice - proven durability
• ✓ Abrasion resistant on rocks and rough terrain
• ✓ Lower cost option
• ✓ Requires roller fairlead (included)
• ✗ Heavier weight
• ✗ Can kink and develop sharp burrs
• ✗ Dangerous if it breaks under load

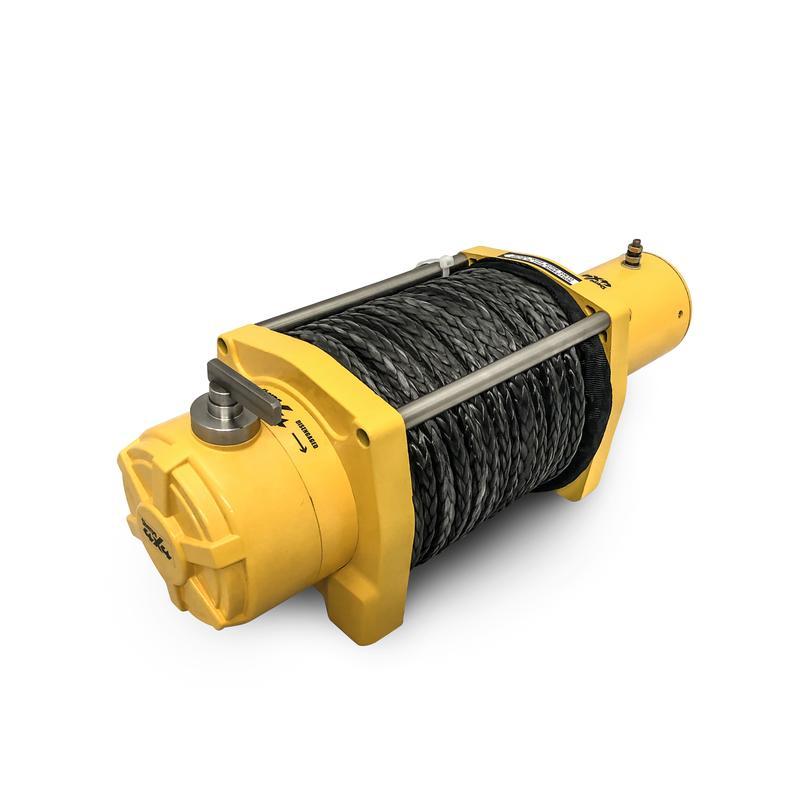

12mm Dyneema Synthetic Rope (31,000 lb MBS):

• ✓ Lighter weight - easier to handle
• ✓ Safer if it breaks - drops to ground instead of whipping
• ✓ Won't kink or develop sharp edges
• ✓ Floats in water
• ✓ UV resistant Dyneema construction
• ✓ Uses hawse fairlead (included)
• ✗ Higher initial cost
• ✗ Requires more care around sharp edges
• ✗ Should be inspected regularly for wear

Our Recommendation: For serious off-road recovery, synthetic rope is the safer, more user-friendly choice. For commercial/industrial use with frequent abrasion, steel cable may be more economical.

Installation Requirements

Before You Buy - Ensure You Have:

• ✓ Heavy-duty winch-rated bull bar or winch cradle (rated for 25,000+ lbs)
• ✓ 12V System: Minimum 800 CCA battery (dual battery system strongly recommended)
• ✓ 24V System: Two 12V batteries (400+ CCA each) wired in series, or dedicated 24V battery
• ✓ 2 AWG or larger power cables (4-6m length recommended)
• ✓ 200-250 amp circuit breaker or fuse
• ✓ Heavy-duty mounting bolts (M12 or larger)
• ✓ Professional installation recommended for safety

⚠️ CRITICAL: This winch draws up to 700 amps (12V) or 350 amps (24V) at full load. Undersized cables or poor connections will cause voltage drop, overheating, and potential fire hazard. Professional installation is strongly recommended.

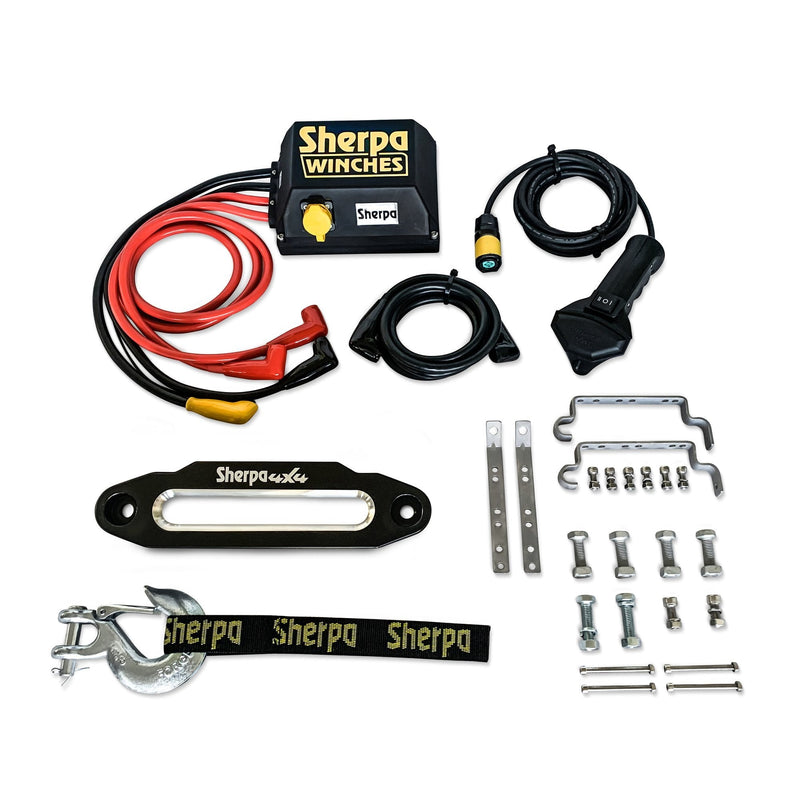

What's Included in the Box

• 1x Sherpa 4x4 Stallion 25,000 lb Winch Unit
• 1x 30m Line (Steel Cable or Dyneema Synthetic - select variant)
• 1x Fairlead (Roller for steel, Hawse for synthetic)

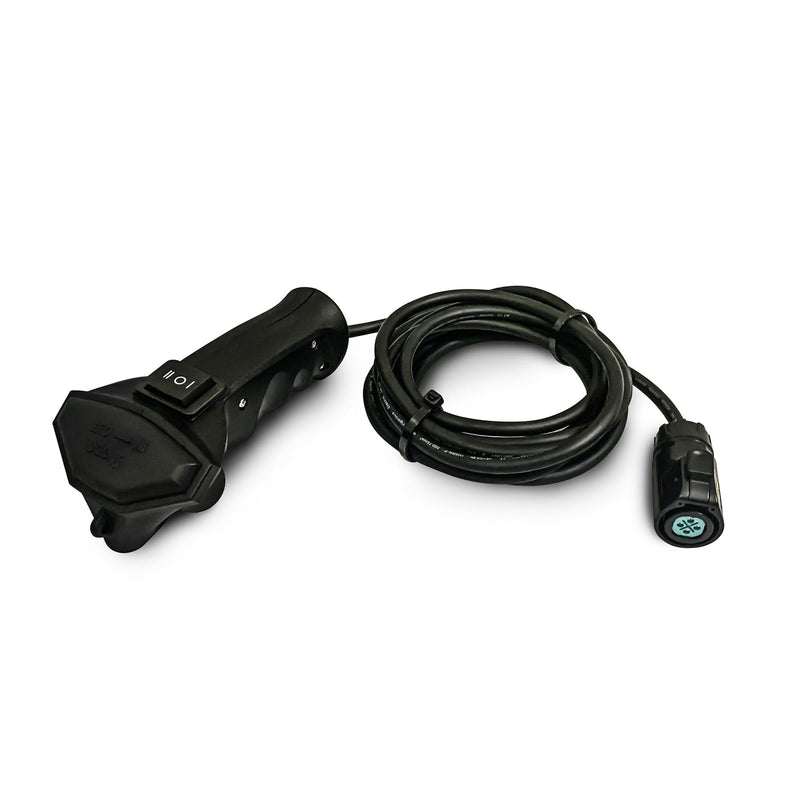

• 1x Wired Remote Control
• 1x Hook with Safety Latch
• Mounting Hardware
• Owner's Manual & Warranty Card

Not Included (Available Separately):

• Winch mounting plate/cradle (vehicle-specific)
• Power cables and circuit breaker
• Wireless remote upgrade
• Recovery accessories (snatch blocks, tree protectors, shackles)

Sherpa Stallion vs Competition

Why Choose Sherpa Over Other Brands?

• Sherpa Stallion 25K: Best value, 5-year warranty, exceeds rated capacity, Australian support
• WARN M15000: Premium brand, higher price, 15,000 lb capacity (not enough for heavy vehicles)
• Runva 20K: Lower cost, shorter warranty, less proven track record
• T-Max 25K: Similar specs, but Sherpa has better Australian dealer network and support

Maintenance & Care

To ensure long life and reliable performance:

• Inspect cable/rope before each use for wear or damage
• Grease planetary gears every 12 months or 50 pulls
• Clean and lubricate clutch mechanism annually
• Check all electrical connections for corrosion
• Exercise winch monthly (spool in/out under no load)
• Keep winch covered when not in use to protect from elements
• Re-spool cable/rope under light tension after each use

Australian Conditions Tested

The Sherpa Stallion has proven itself in Australia's harshest environments:

• ✓ Cape York mud and river crossings
• ✓ Simpson Desert sand recoveries
• ✓ High Country rock crawling
• ✓ Coastal beach driving and saltwater exposure
• ✓ Commercial mining and forestry operations
• ✓ Emergency service and recovery operations

Safety Guidelines

⚠️ IMPORTANT SAFETY INFORMATION:

• Never exceed the winch's rated capacity
• Always use a winch damper/blanket on the cable during recovery
• Keep all bystanders at least 1.5x the cable length away during operation
• Never hook the cable back onto itself - use a tree protector and shackle
• Wear heavy-duty gloves when handling cable/rope
• Ensure vehicle is in Park/Neutral with parking brake engaged
• Use snatch blocks to double line pull when needed (reduces load on winch)
• Never use winch to lift or move people

5-Year Comprehensive Warranty

Sherpa 4x4 backs the Stallion with a 5-year comprehensive warranty covering mechanical and electrical components. This is one of the best warranties in the industry, giving you peace of mind for years of heavy-duty use.

Need help choosing the right winch or accessories? Our team has decades of 4WD and recovery experience. Contact us for expert advice on winch selection, installation, and recovery techniques!
