Carbon 12K V3X 12V 12,000lb Winch with MegaPro Hook

The Carbon 12K V3X is Carbon Offroad's current 12V electric winch for 4WD recovery. Its rated line pull is 12,000 lb (5,443 kg) on the first rope layer; line pull reduces as more rope builds on the drum. Carbon's performance chart lists 9,800 lb (4,450 kg) on layer 2, 8,300 lb (3,770 kg) on layer 3 and 7,200 lb (3,270 kg) on layer 4. The manufacturer rounds the first-layer figure to 5,450 kg in its chart.

Key specifications

• 12V DC, 6 HP motor
• 12,000 lb (5,443 kg) rated single-line pull on the first layer

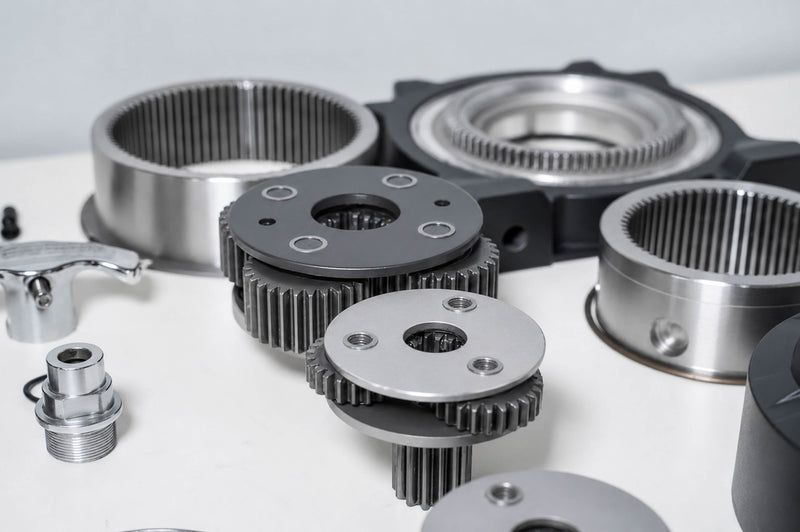

• 218:1 triple-planetary gearbox
• 24 m x 10 mm synthetic rope

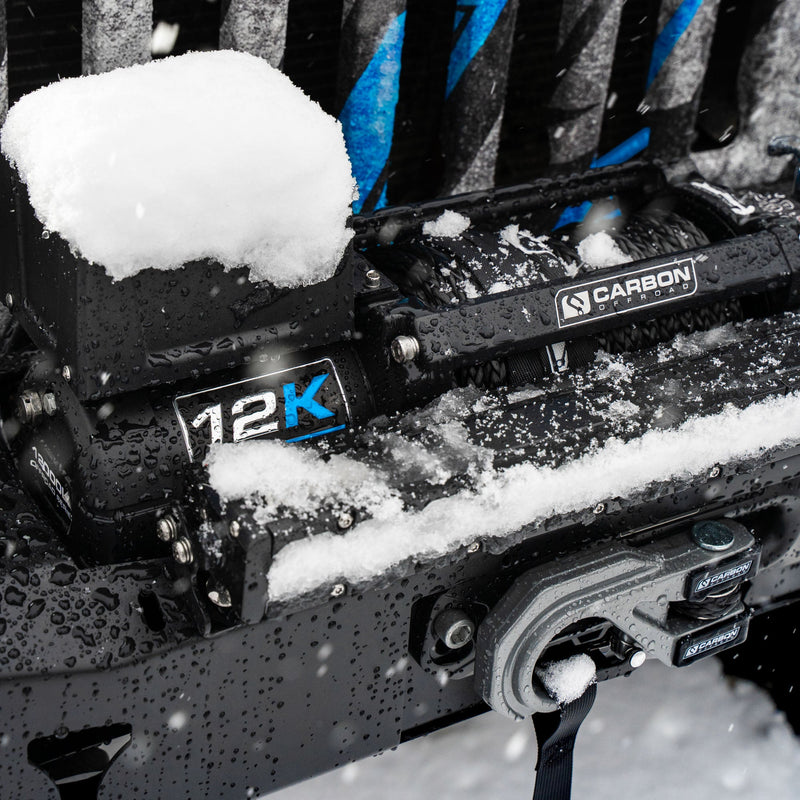

• IP68 rating; Carbon states freshwater submersion up to 1.5 m for 30 minutes, but not while operating
• Winch weight: 19.7 kg (manufacturer-stated)
• Membrane-style motor breather and multi-mount control box

Included in the kit

• Carbon 12K V3X winch with synthetic rope
• Wired remote and wireless remote
• CNC alloy fairlead
• Isolator switch
• Mounting hardware kit

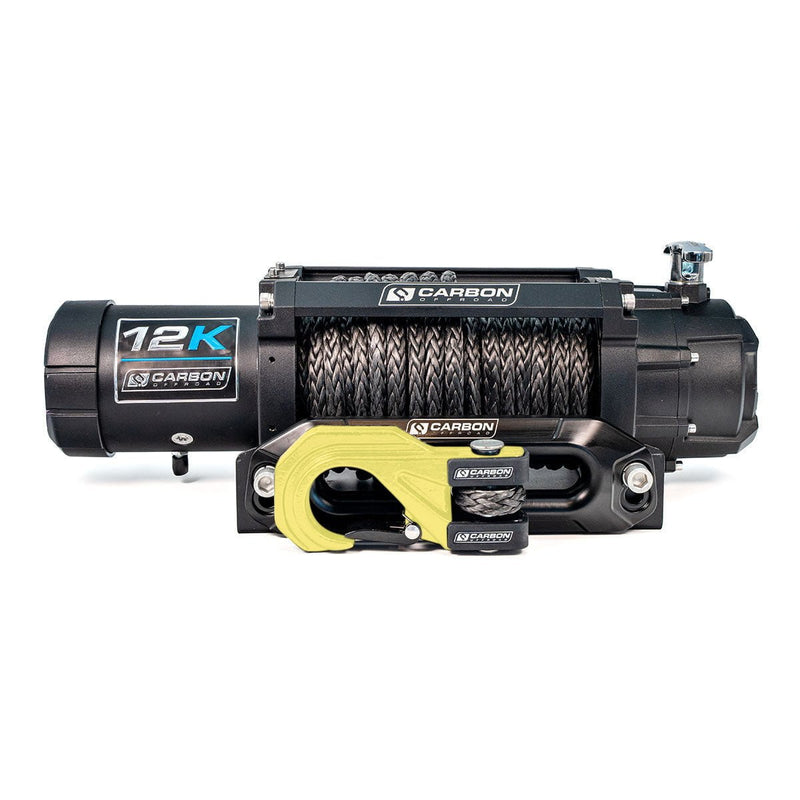

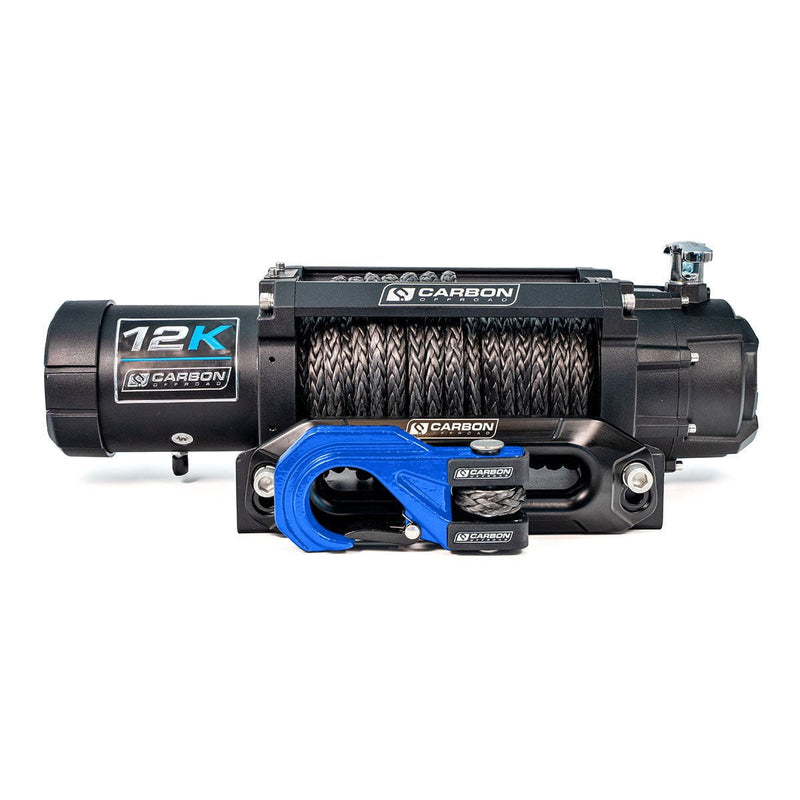

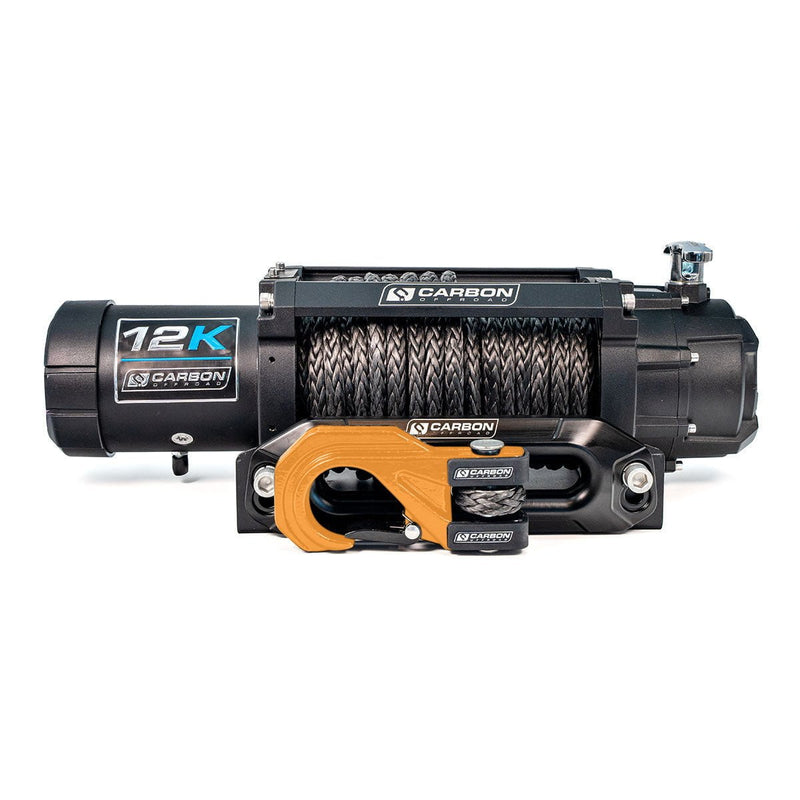

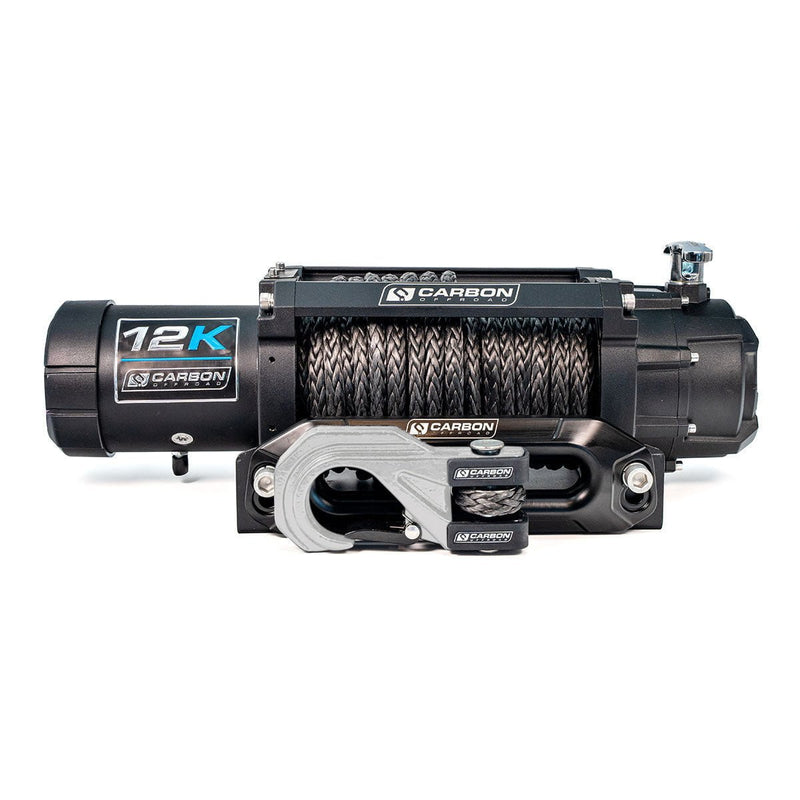

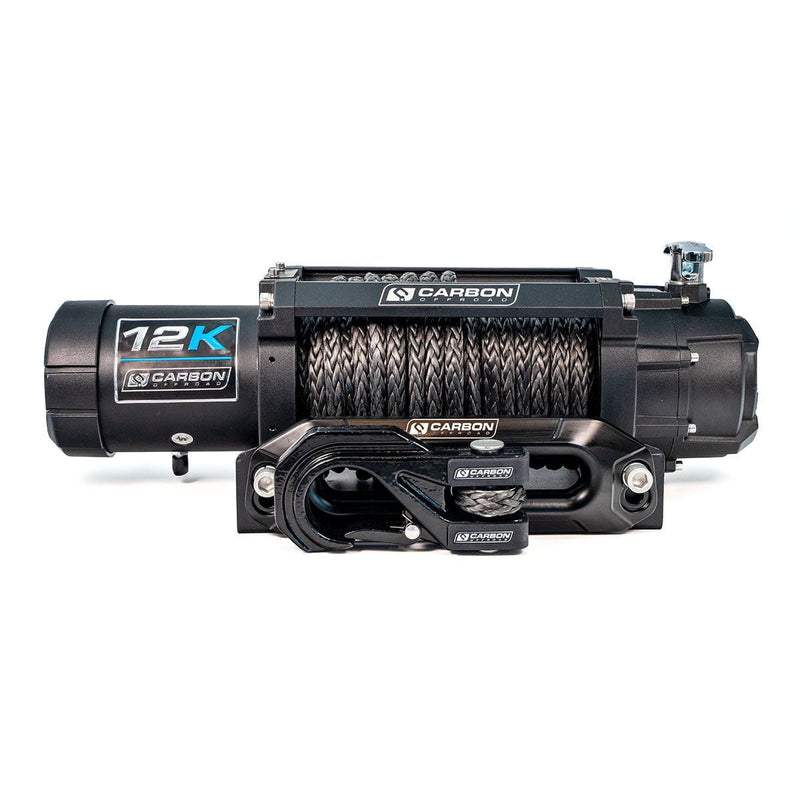

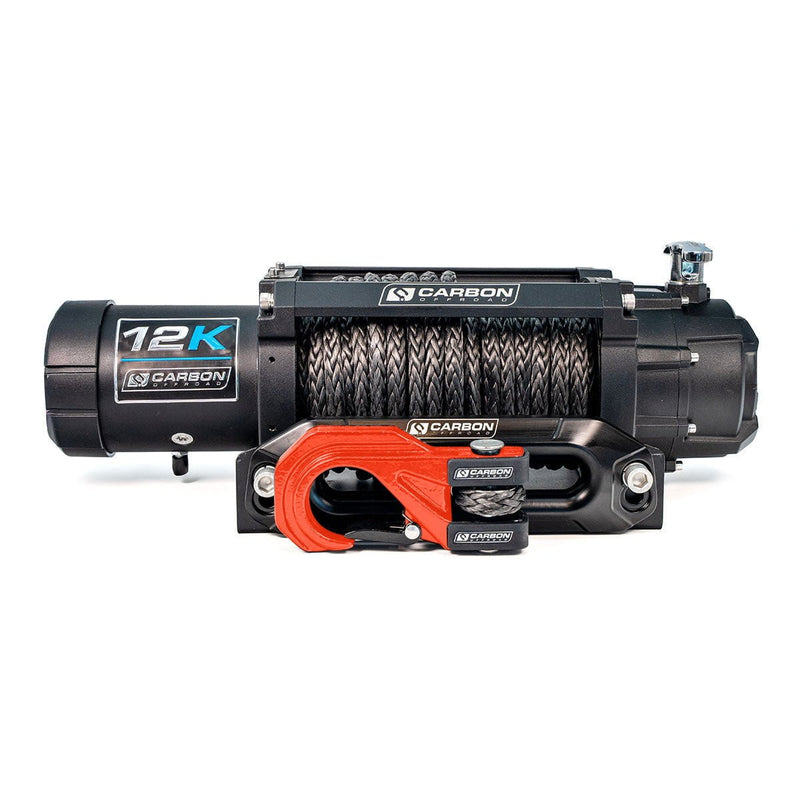

• MegaPro hook in the selected colour

Fitment

• 12V system required
• Rated mounting pattern: 254 x 114.3 mm; verify vehicle-specific bullbar or winch-plate fitment and clearances
• Carbon recommends a minimum 650 CCA battery for winching

Warranty: Limited Lifetime Mechanical Warranty. Electrical and water-ingress cover is 5 years; Carbon says registration within 90 days can extend that cover to 7 years, subject to its warranty terms.

Stock and dispatch: Winch World dealer stock and dispatch timing have not been confirmed for any colour. Confirm selected-variant availability and lead time with us before relying on immediate dispatch. Hook colour is the selected variant. The optional Carbon Air Freespool clutch upgrade is sold separately and is not included.
