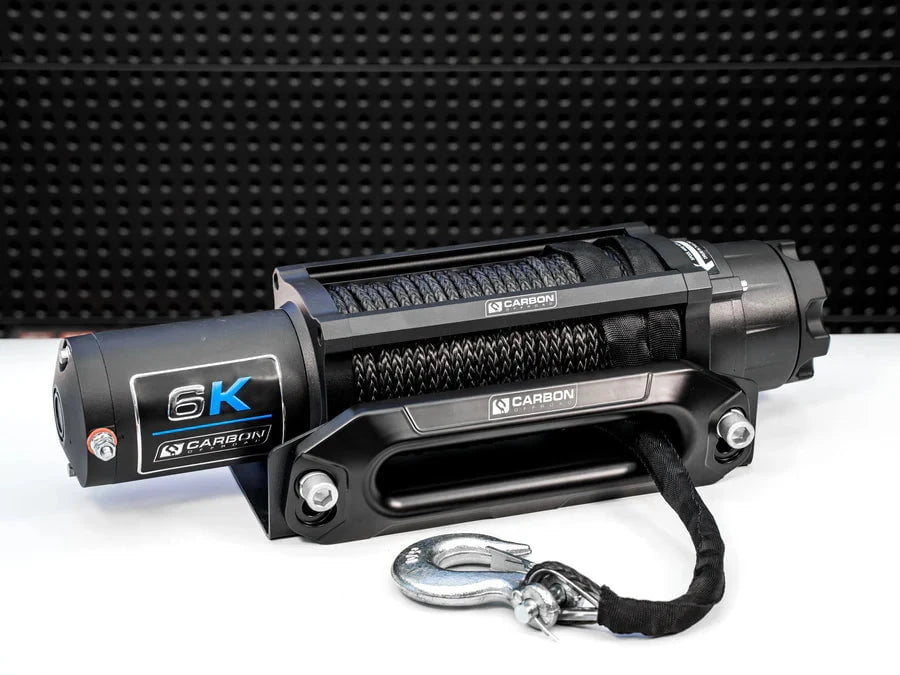

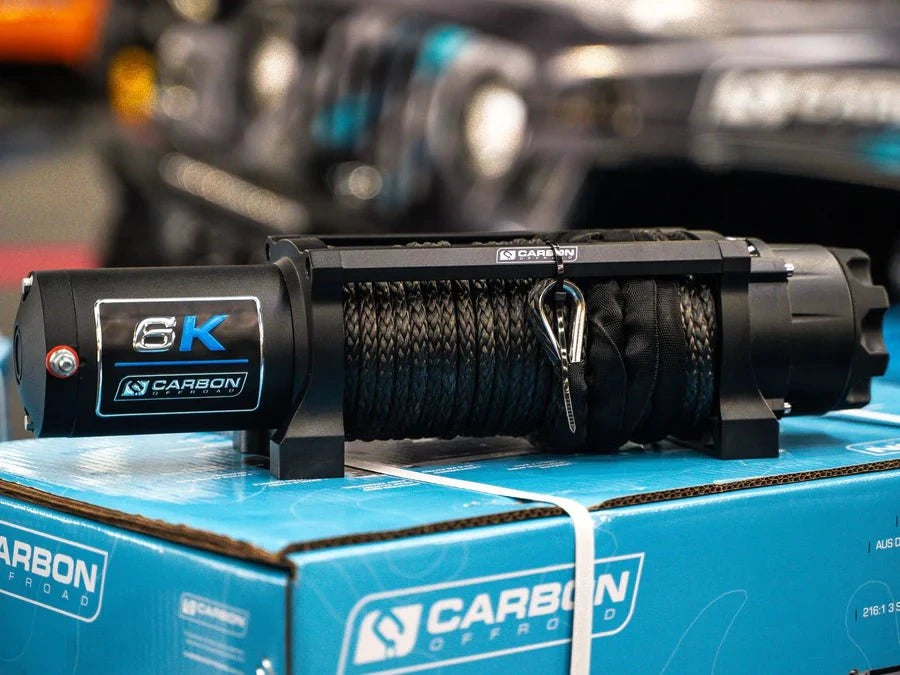

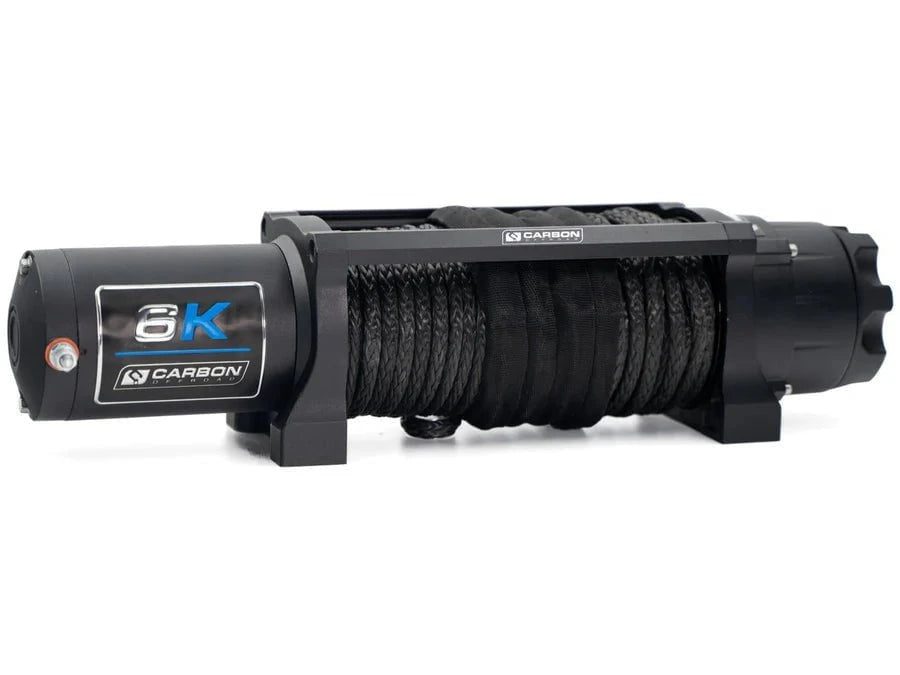

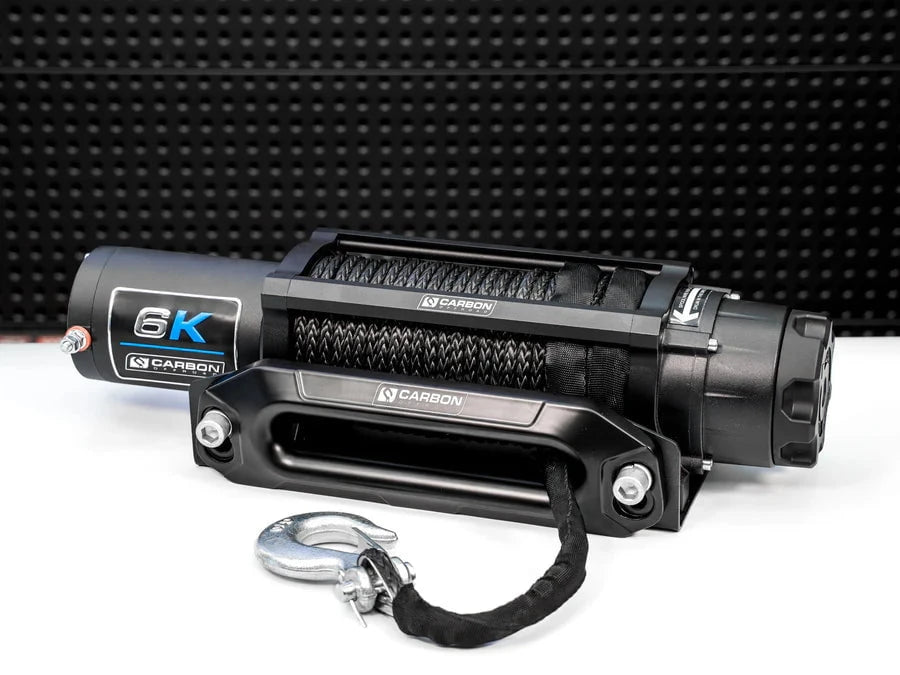

Carbon Offroad Long Drum 6000lb Winch – ATV, UTV & Small 4x4

Original price $800
Original price $800 - Original price $800
Original price $800
Current price $659
$659 - $659
Current price $659
Australia-wide delivery
Express 3–7 business days · Priority 1–3 business days where available
Shipping service estimates; dispatch and options depend on the item and destination. Delivery details
Secure checkout Visa Mastercard American Express PayPal Apple Pay Shop Pay
✓ Australian-owned✓ 1,500+ purchasing customers Warranty & returns

Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t.

With 6,000 lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired + wireless remotes and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites—and weekend getaways—running smoothly.

  • Sealed motor and geartrain allows for flawless operations in extreme conditions

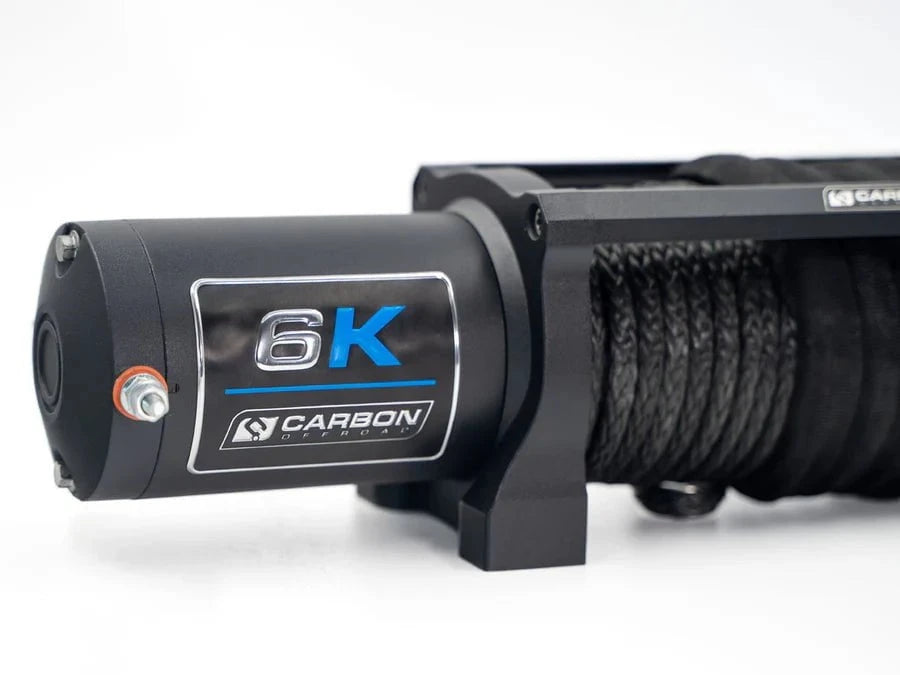

  • Permanent magnet motor provides heavy duty torque for increased pulling power

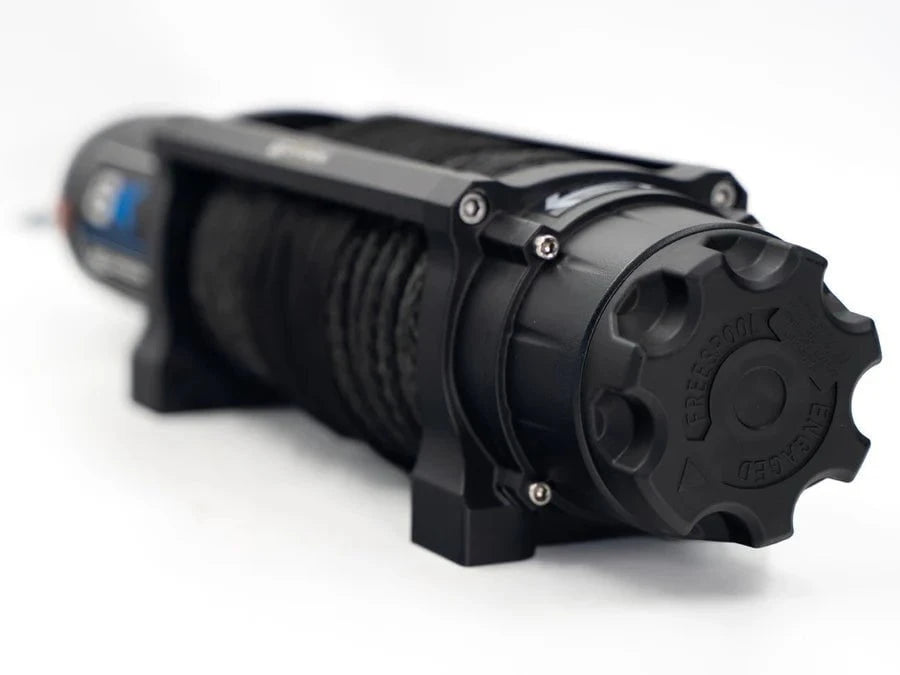

  • Cam action disengages gears for near silent free-spooling
  • Mechanical and dynamic brake offers increased control and prevents rollback
  • Please note this kit does not include the winch cradle in the pictures.
  • Part number: CW-XD6L
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • IP Rating: IP66 for winch and solenoid (excludes remote control and switch)

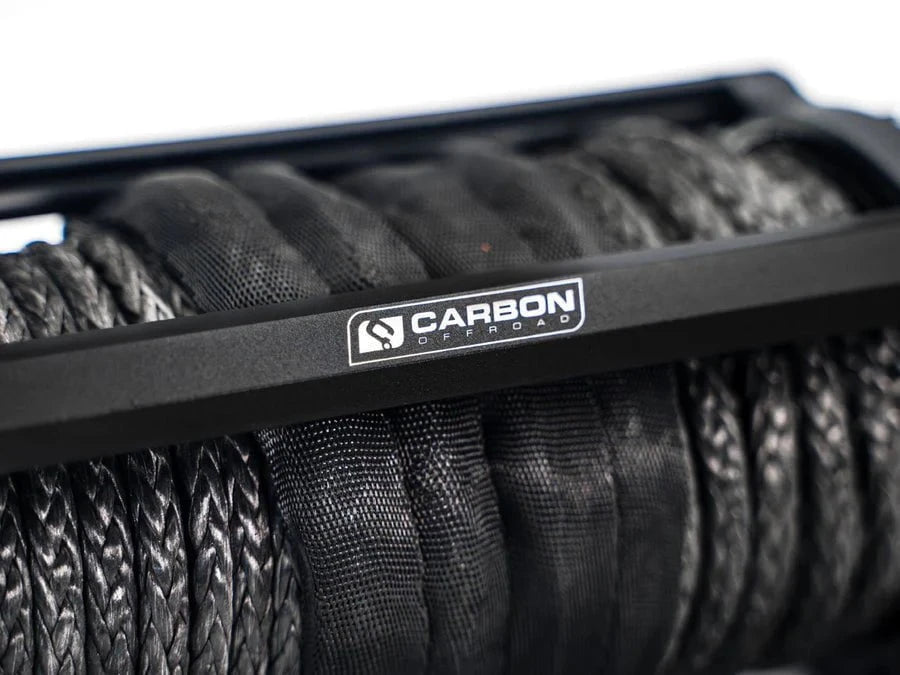

  • Synthetic Rope: 26m x 6.5mm diameter
  • Drum Diameter/Length: 51mm x 208mm

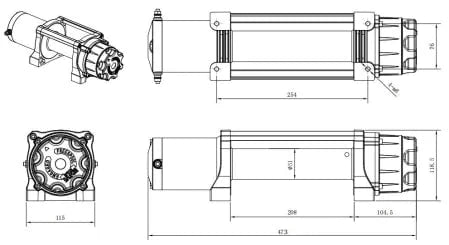

  • Mounting Bolt Pattern: 254mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 473 x 125 x 120mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
Pull,Speed,Amperes,Volts(First layer) Line Pull
12V DC PERFORMANCE SPECS
Line Pull lbs(kgs) Line Speed ft/min(m/min) Motor Current Rated line pull lbs(kgs)
0 13.8(4.2) 15 1/6000(2725)
2000(1814) 9.5(2.9) 125 2/5350(2430)
4000(3629) 7.2(2.2) 190 3/4780(2170)
6000(5443) 4.6(1.4) 240 4/4270(1940)
