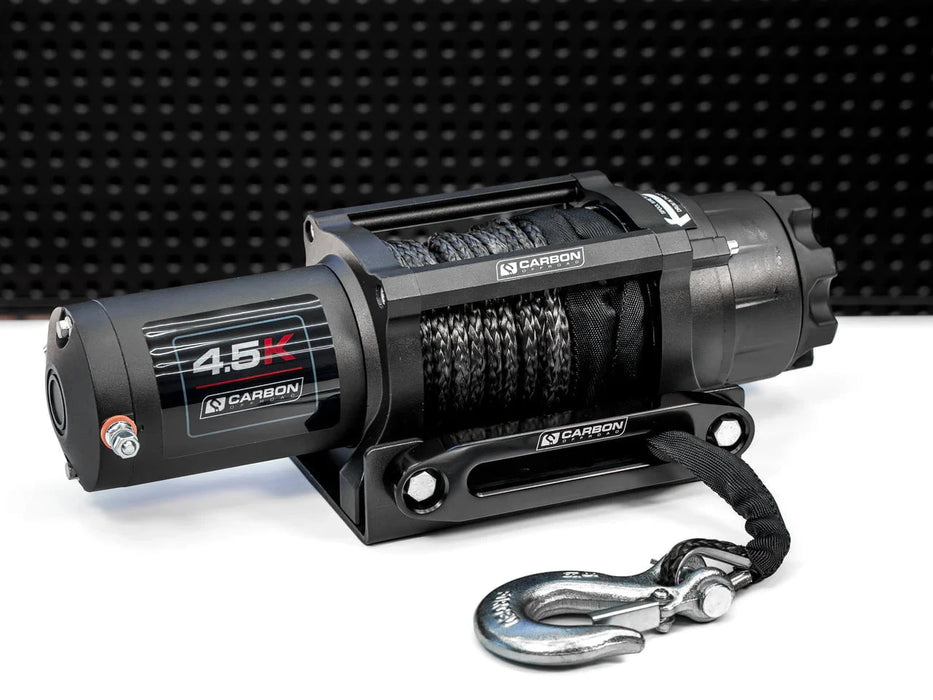

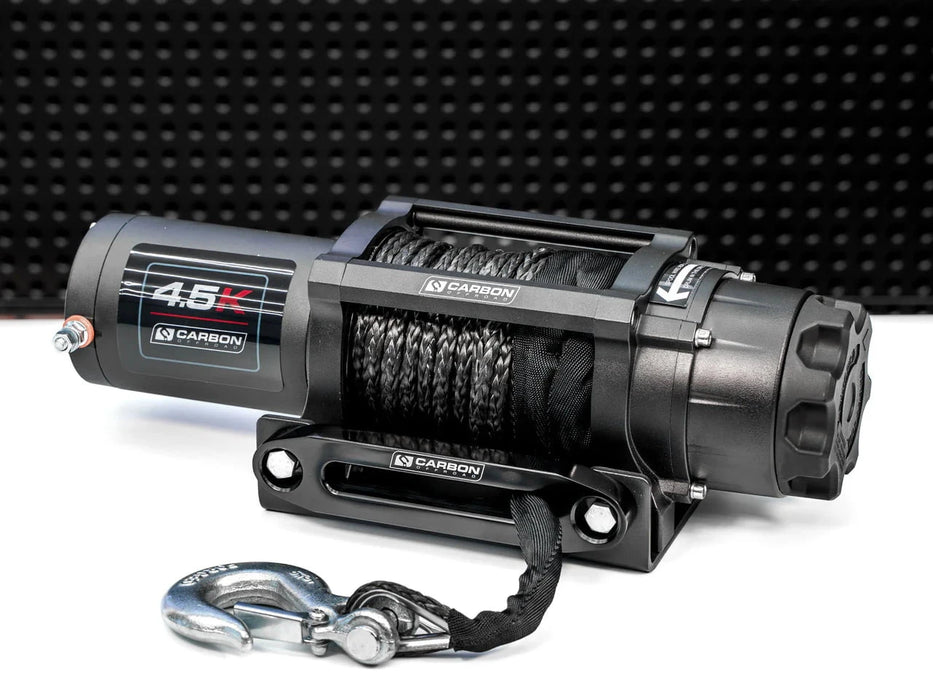

The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car trailers. This winch has been upgraded and all stock from September 2021 onward have been re-designed to include better clutch handle operation, seals allowing use in wet conditions, better quality finish and components all for the same price.
A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an exisitng pedestal on a trailer, or into a winch location on an ATV or Buggy.
With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.
Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers.
A great small all rounder winch to make work easier or to get your buggy out of the bog.
4,500 lb (2,040 kg ) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance.
Mechanical load holding and dynamic brake for 100% braking.
High efficiency, low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid wire rope payout
SPECIFICATION / PART NUMBERS CW-45
Part number: CW-4.5
Rated line pull: 4,500 lbs, (2040kg) single-line
Motor: 12V DC 1.9HP motor
Remote Control: Handlebar Mini-Rocker
Wireless Remote Control: included
Geartrain: 3-Stage Planetary.
Gear Ratio: 176:1
Clutch (freespooling): Split Ring Gear
Brake: Dynamic and mechanical braking
Drum Diameter/Length: 2.5��/4.4�� (60.5mm/112mm)
Synthetic Rope: 43�, 1/4�� diameter ( 13m, 6.35 diameter)
Fairlead: Aluminium Hawse

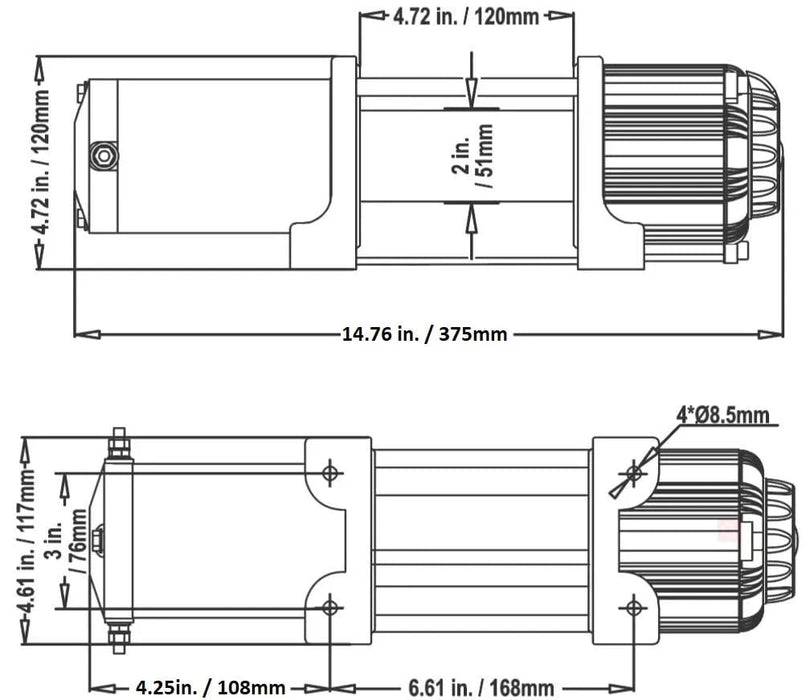

Mounting Bolt Pattern: 3.0�� x 6.59�� ( 76mm x 167mm )
Winch Dimensions ( L x W x H ): 14.9'' x 4.7'' x 4.5'' (379x 120 x 115mm )
Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
Shipping Weight: 12.2kg
12V DC PERFORMANCE SPECS (first layer of drum)
|Pull by layer
