Warn zeon 12v winch 24m wire rope, zeon-12-89660
Like nothing you’ve ever seen before
The WARN ZEON 12 is the face of winching. Bolt one on, and you’ll be ready for anything.
A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.
The ZEON 12 is a pulling machine you can rely on to rescue you-or your buddies, from nearly anything.
- 12,000 lb. (5443 kg) single-line pulling capacity.
- Includes 80′ of durable 3/8″ galvanized steel wire rope.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
- Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
* Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 12 SPECIFICATIONS
| Part number: ZEON-12-89660 (12V) |
| Part number: ZEON-12-90666-24V (24V) * does not include wire rope |
| Rated line pull: 12,000 lbs. (5443 kg) single-line |
| Motor: series wound, 12V DC, 24V DC |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12′ (3.7m) lead |
| Geartrain: 3-stage planetary |
| Gear ratio: 216:1 |
| Clutch (freespooling): Rotating ring gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 3.15″/9.0″ (80mm/229mm) |
| Weight (kit shipping): 98 lbs. (44 kg) |
| Rope: 3/8″ x 80′ (9.52mm x 24.38m) steel |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72″ (1.83m) |
| Finish: Satin-black powder coat |
12V DC PERFORMANCE SPECIFICATIONS
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 24.8 (7.5) | 33 amps | 1/12000 (5440) |
| 2000 (910) | 13.6 (4.1) | 73 amps | 2/9894 (4488) |
| 4000 (1810) | 10.5 (3.2) | 111 amps | 3/8117 (3682) |
| 6000 (2720) | 9.1 (2.8) | 145 amps | 4/7324 (3322) |
| 8000 (3630) | 8.0 (2.4) | 177 amps | |
| 10000 (4536) | 6.9 (2.1) | 210 amps | |
| 12000 (5443) | 5.7 (1.7) | 252 amps |
24V DC PERFORMANCE SPECIFICATIONS (1ST LAYER OF DRUM)
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
| 0 | 24.8 (7.5) | 33 amps |
| 2000 (910) | 13.6 (4.1) | 73 amps |
| 4000 (1810) | 10.5 (3.2) | 111 amps |
| 6000 (2720) | 9.1 (2.8) | 145 amps |
| 8000 (3630) | 8.0 (2.4) | 177 amps |
| 10000 (4536) | 6.9 (2.1) | 210 amps |
| 12000 (5443) | 5.7 (1.7) | 252 amps |

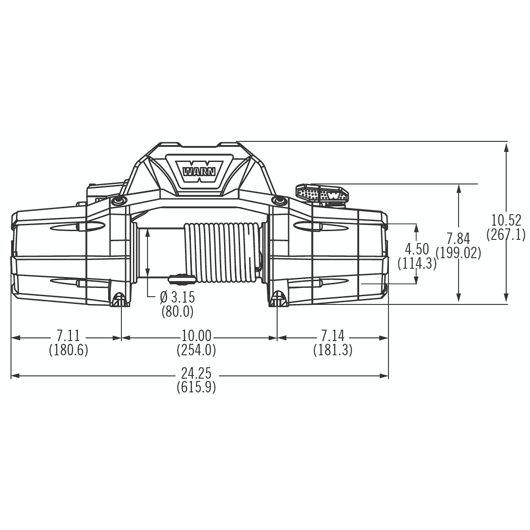

WINCH DIMENSIONS
| Integrated configuration | 24.25″ L x 7.15″ D x 10.52″ H (615.9mm L x 181.6mm D x 267.1mm H) |
|---|---|
| Low-profile configuration | 24.25″ L x 7.15″ D x 7.84″ H (615.9mm L x 181.6mm D x 199.02mm H) |
| Mounting Bolt Pattern | 10.0″ x 4.5″ (254mm x 114.3mm) |
